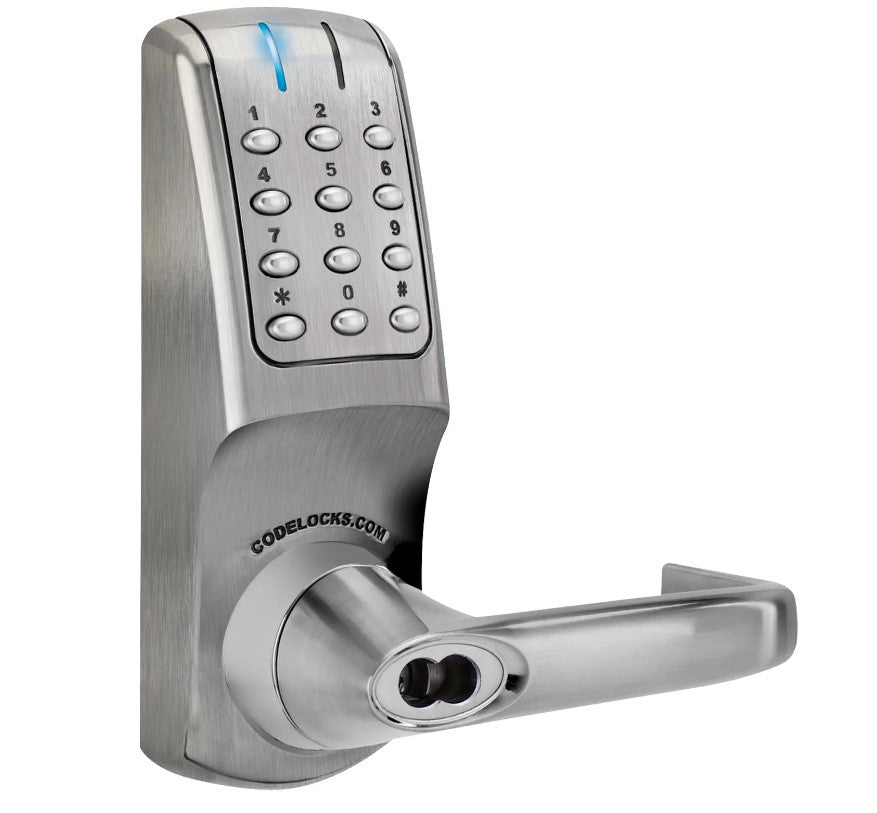

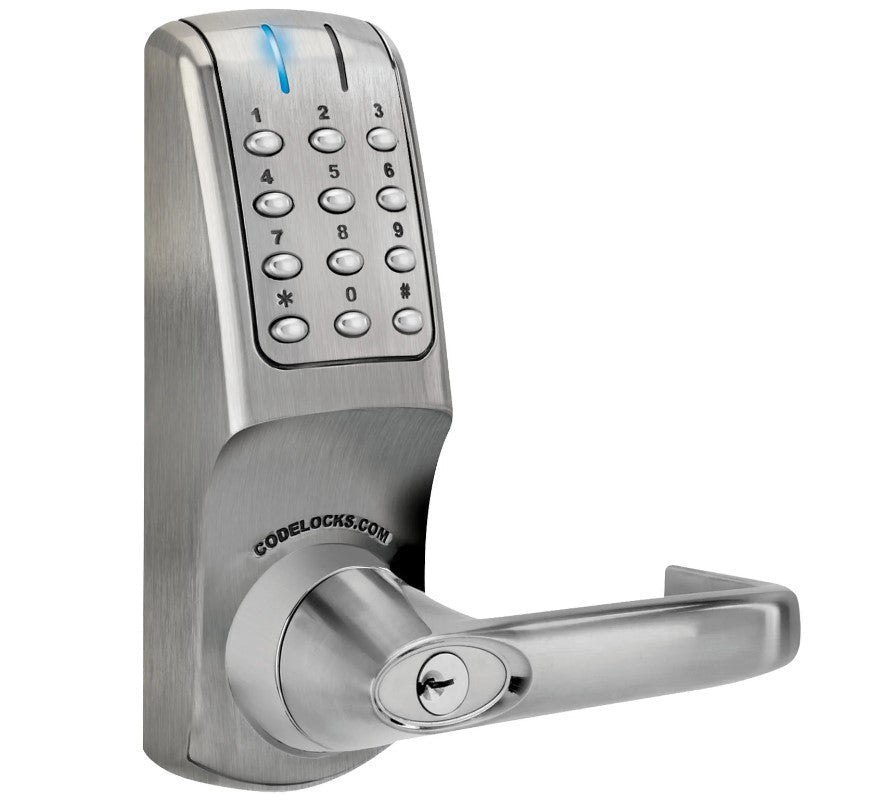

Gate Lock with Code - 5200 Series - Electronic Heavy Duty Tubular Latchbolt - Brushed Finish - Multiple Cylinder Options Available - Sold Individually

These 5200 Series Electronic Gate Locks with Code are heavy duty tubular latchbolts. They are suited for doors between 1-3/8" to 2-3/8" thick and are ideal for high traffic applications such as health, educational, commercial, and residential environments. They allow up to 80 user codes with up to 10 one-time use user codes. They are available in a brushed finish with a passage option, with a standard or SFIC cylinder.

Product Specifications:

• Electronic Gate Lock with Code
• Tubular mortise latch
• 5200 Series
• Heavy duty
• Finish: Brushed
• Suitable for wooden / metal doors between 1-3/8" and 2-3/8" thick
• Suitable for interior and exterior use
• Code Access: Passage Option
• Cylinder Options Available: Standard Cylinder, Small Format Interchangeable Cylinder (SFIC)
• User Codes 4, 5, or 6 digits long
• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• Key bypass and front cylinder change
• Up to 200,000 operations from 4 x AA batteries (supplied)
• Conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions
• Remote release connections
• Material: Zinc Alloy
• Non-handed: Locks will fit doors hung on the left or right
• Code Change Method: Keypad (on door)
• Keypad: Stainless Steel buttons
• Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door
• Heavy duty locks for use in high traffic applications - Particularly suitable for use in health, educational, commercial and residential environments
• Tamper time out and low battery warning - Red LED will flash on opening to indicate low battery
• Locked and unlocked LED indicator option
• Tested to Grade 2 ANSI A156.2 / A156.25
• UL/ULC Fire Rating 3 hours
• Sold individually
