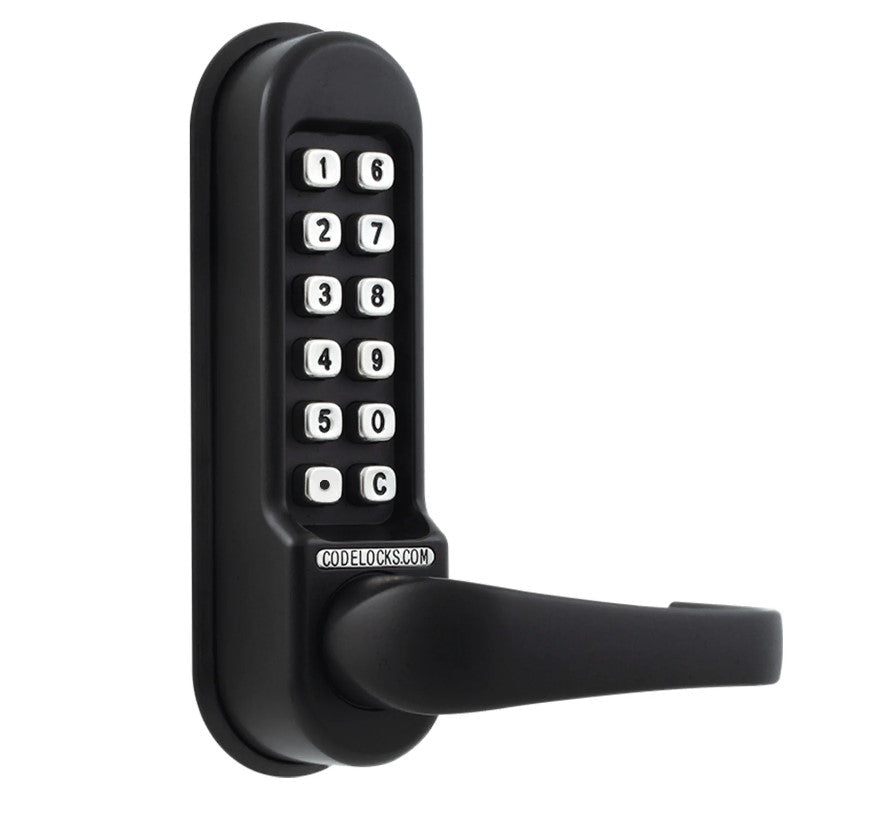

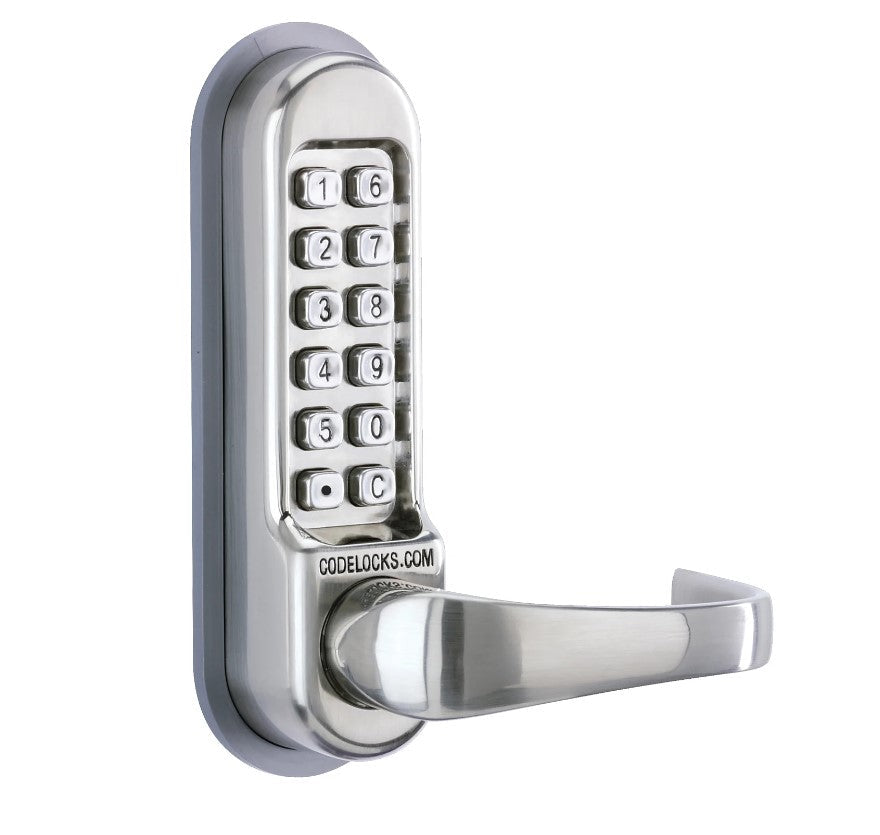

Gate Lock with Code - 500 Series - Mechanical Heavy Duty Tubular Latchbolt - Multiple Finishes Available - Sold Individually

These 500 Series Mechanical Gate Locks with Code are heavy duty tubular latchbolts. They are suited for doors between 1-3/8" to 2-3/8" thick. They are available in Black Marine Grade and Polished finishes, and feature a passage option for code free access.

Product Specifications:

• Mechanical Gate Lock with Code
• 500 Series
• Heavy duty
• Single code - Coded on one side of door
• Code free access option
• Code Change Method: Requires removal of the lock from the door. The code can be changed by repositioning the tumblers in the code chamber
• Door Thickness: 1-3/8" to 2-3/8"

• Material: Zinc Alloy
• Non-handed: Locks will fit doors hung on the left or right
• Latch retracts by turning inside handle freely, or the outside handle after code input
• Spring loaded latchbolt will lock automatically when the door is closed
• Buttons: Stainless Steel
• Finishes Available: Black Marine Grade, Polished
• Code Access:
• Non-Passage
• Passage Option: Code Free Access - The outside lever will retract the latch freely until disabled
• Spindle Type: Two part 8mm (5 /16”) spring loaded spindle
• Suitable for interior and exterior use
• Application: Front Gate, Side Gate, Pedestrian Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Large full size lever handles with return to door
• Tumbler alignment for easy code change
• Large three coil lever return spring suitable for high traffic use
• Neoprene seals included
• Supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 11 buttons a total of 2,047 different codes are available, any of which may be entered in any order
• Sold individually
