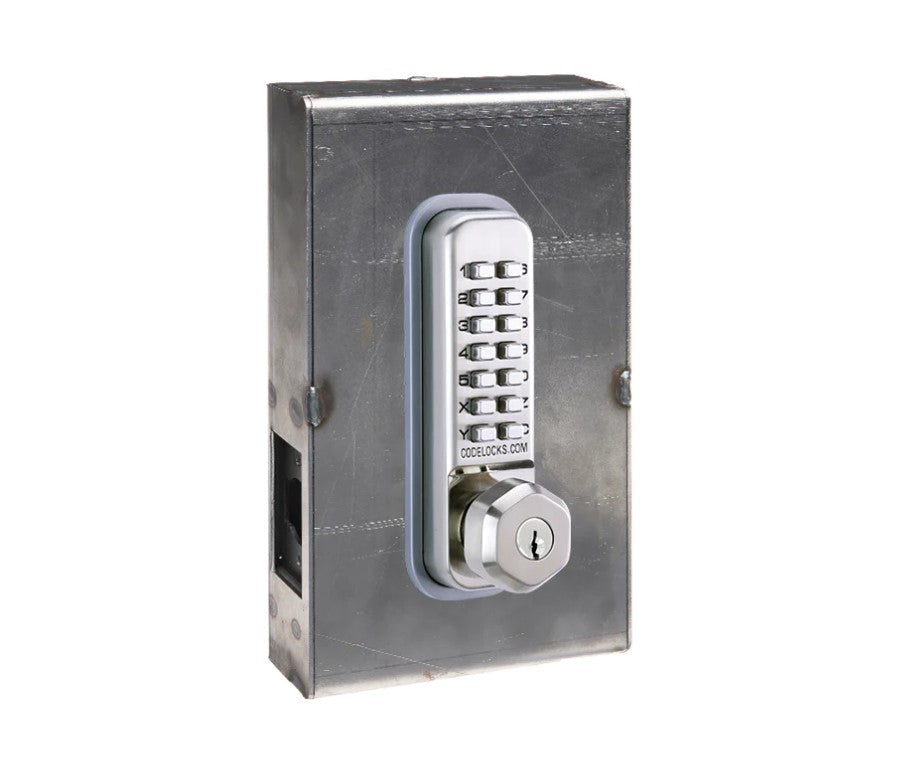

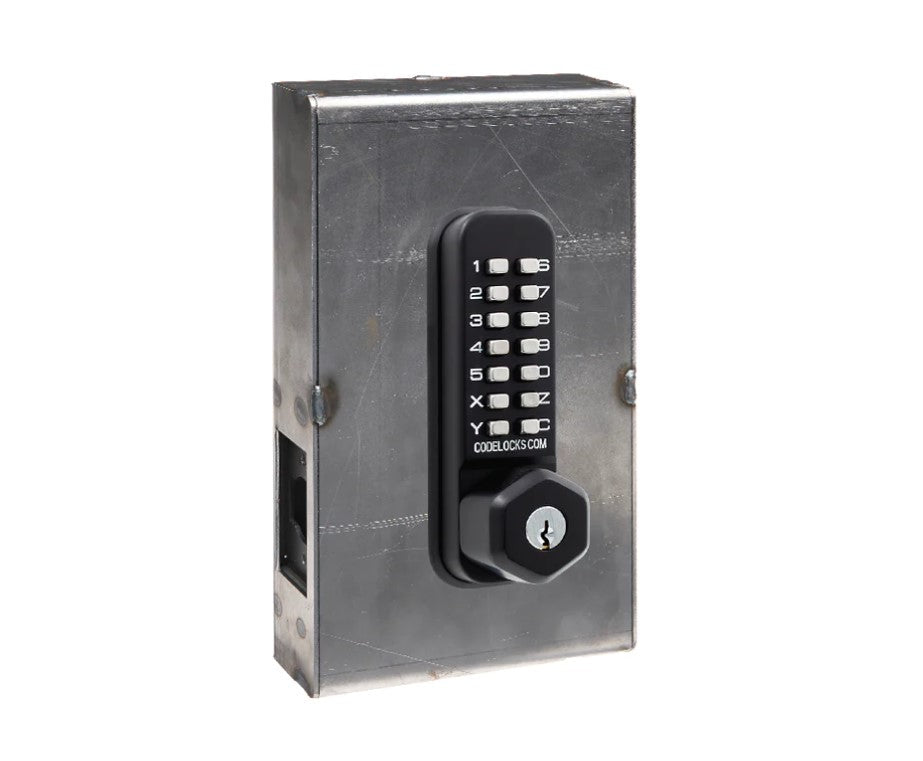

Gate Lock with Code - 200 Series Steel Gate Box Kit - Mechanical Light Duty Deadbolt with Key Override - Multiple Finishes and Options Available - Sold as Kit

The 200 Series Steel Gate Box Kit is a complete kit for gate and fence installations. The Gate Box Kits provide simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation and is suitable for indoor and outdoor applications. They are available in Polished and Black Marine Grade finishes, with key override and latch type options.

Product Specifications:

• Mechanical Gate Lock with Code
• 200 Series Steel Gate Box Kit
• Includes Codelock, weldable Gate Box, and stop bracket
• Contains all components required for a straightforward installation
• Light duty
• Single code - Coded on one side
• Key bypass option available across all models
• Dual backset deadlatch: 2-3/8” and 2-3/4”
• Dual backplate allows option of hold back feature
• Non-handed: Locks will fit doors hung on the left or right
• Spindle: Flat spring loaded
• Gate Box Material: 14-gauge steel
• Lock Material: Zinc Alloy
• Buttons: Stainless Steel
• Finishes Available: Polished, Black Marine Grade
• Lock Types Available: Key Override, Key Override with Passage Option
• Latch Types Available:
• Tubular Deadbolt: Bolt is moved manually by outside knob after code input and freely by inside knob at all times. Bolt extends 1” (25mm) beyond door edge when locked.
• Tubular Latch: Light duty tubular latch retracts by turning inside lever freely, or the outside knob after code input. Features passage function.
• Suitable for indoor and outdoor applications
• Application: Front Gate, Side Gate, Pedestrian Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Tumbler alignment for easy code change
• Neoprene seals included
• Supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order
• Sold as kit
