Gate Lock with Code - 200 Series - Mechanical Light Duty Deadbolt with Key Override - Multiple Finishes and Latch Types Available - Sold Individually

These 200 Series Mechanical Gate Locks with Code are light duty deadbolts with key override. They are suitable for wood or metal doors between 1-3/8" to 2-3/8" thick and feature a dual backset deadlatch. They are available in Black Marine Grade and Polished finishes, with a Surface Deadbolt, Tubular Deadbolt, or Tubular Latch lock types.

Product Specifications:

• Mechanical Gate Lock with Code
• 200 Series
• Light duty
• Single code - Coded on one side
• Suitable for wooden/metal doors between 1-3/8” to 2-3/8” thick
• Lock Type: Key Override
• Material: Zinc Alloy
• Non-handed: Locks will fit doors hung on the left or right
• Buttons: Stainless Steel
• Finishes Available: Black Marine Grade, Polished
• Latch Types Available:

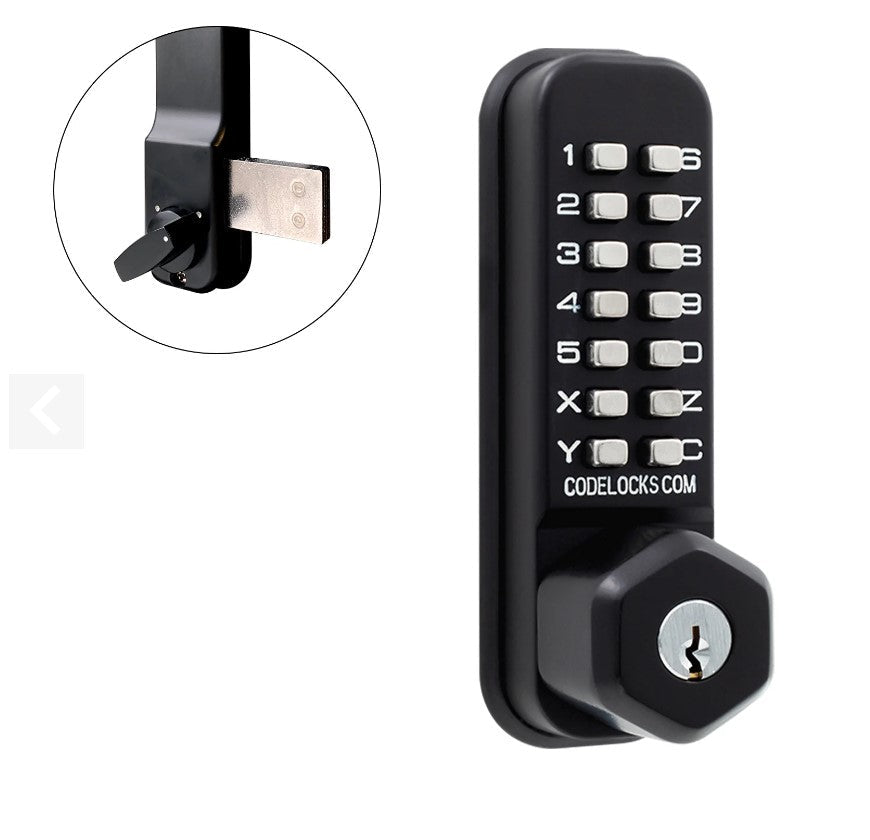

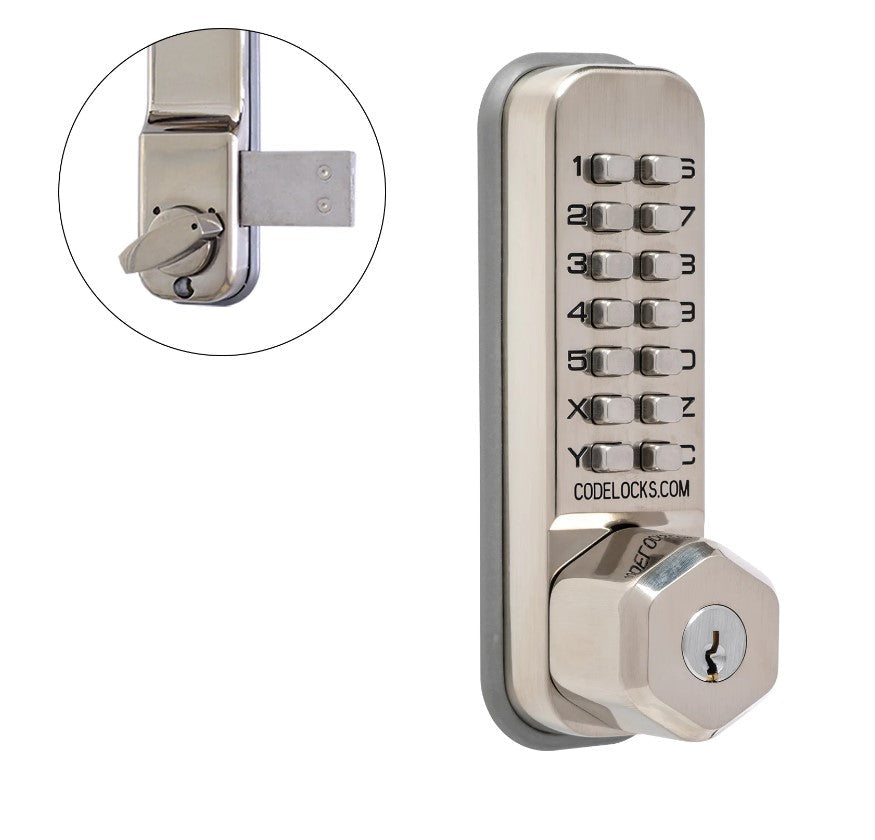

• Surface Deadbolt: Bolt slides on inside of door, to lock or unlock. Bolt is moved manually by outside knob after code input and freely by inside knob at all times.

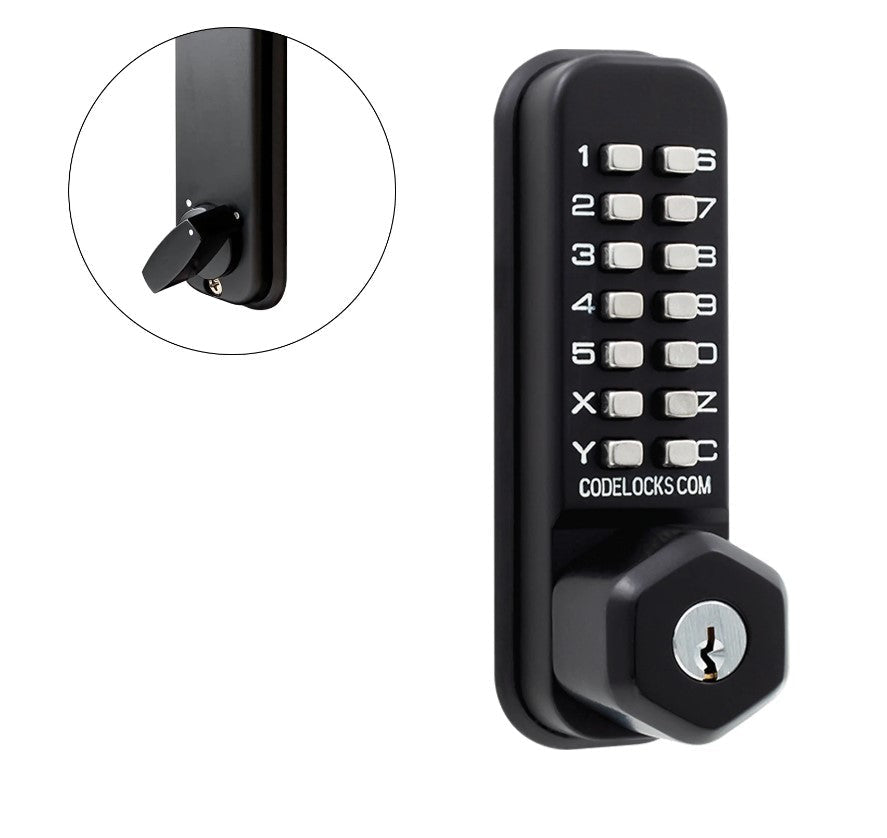

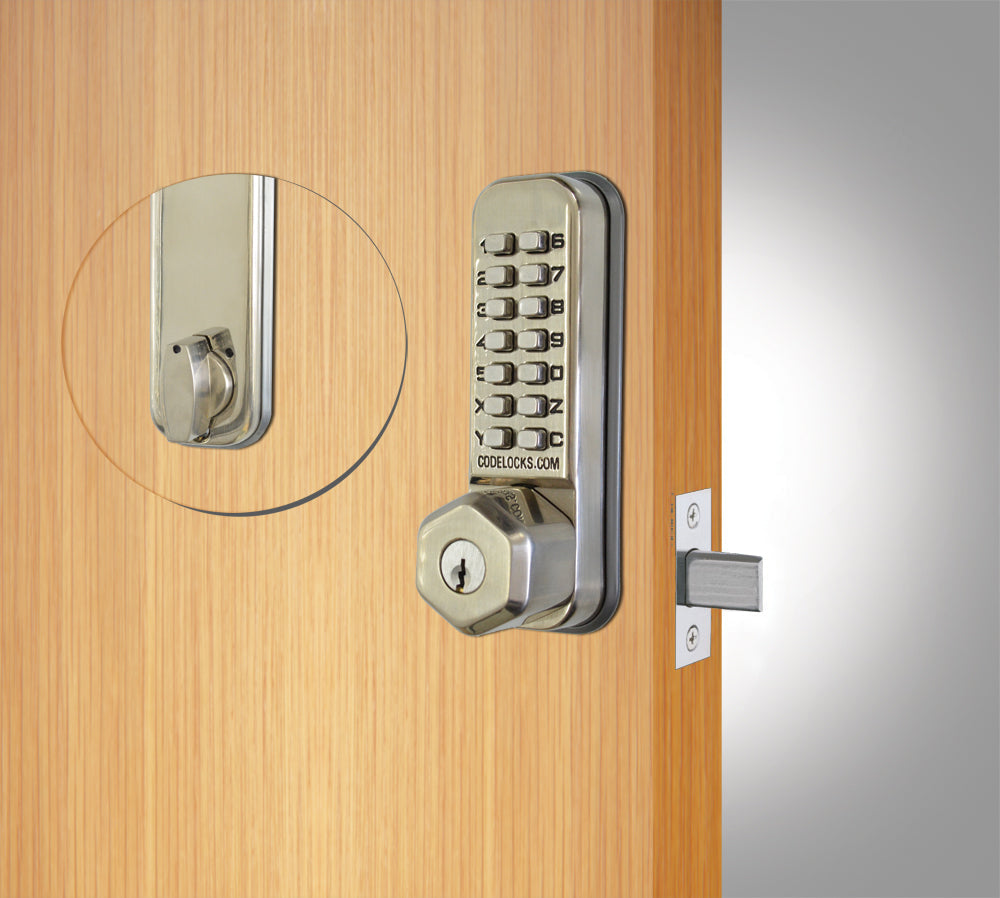

• Tubular Deadbolt: Bolt is moved manually by outside knob after code input and freely by inside knob at all times. Bolt extends 1” (25mm) beyond door edge when locked.

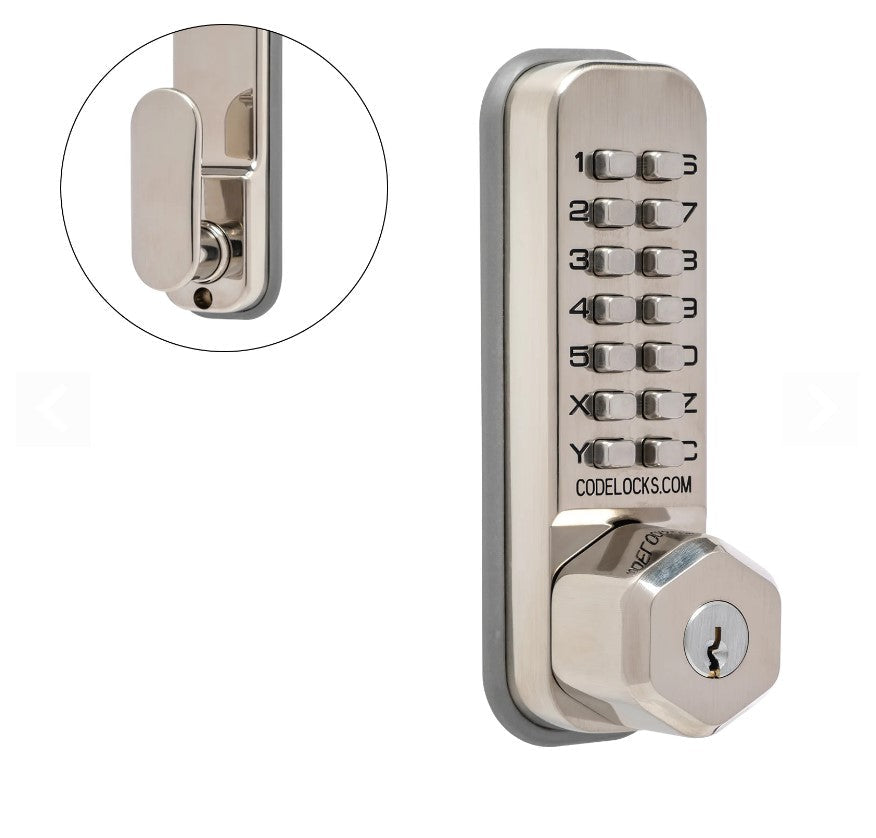

• Tubular Latch: Light duty tubular latch retracts by turning inside lever freely, or the outside knob after code input. Features passage function.
• Dual backset deadlatch: 2 3/8” and 2 3/4”
• Spindle Type: Flat spring loaded spindle
• Suitable for interior and exterior use
• Application: Front Gate, Side Gate, Pedestrian Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Dual backplate allows option of hold back feature
• Tumbler alignment for easy code change
• Neoprene seals included
• Supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, any of which may be entered in any order
• Sold individually
