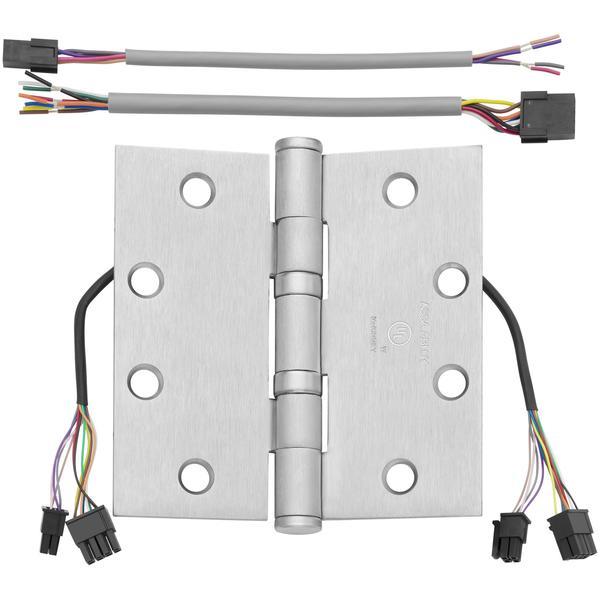

Full Mortise ElectroLynx Hinge - Standard Weight - 5-Knuckle - 4-1/2" x 4-1/2" with Square Corners, 12 Wires - Satin Chrome Finish - Sold Individually

The ElectroLynx Quick Connect electrified hinge offers the perfect solution for door openings that use electrified hardware. Installer-friendly “plug and play” ElectroLynx connectors take the guesswork out of wiring and offers an quick method for connecting power from the source through the hinge to the electrified hardware. These hinges measure 4-1/2" x 4-1/2", have a Satin Chrome finish, and 12 wires.

Product Specifications:

• Full Mortise Hinge
• ElectroLynx electrified hinge
• Standard Weight
• 5 knuckles
• Finish: Satin Chrome
• Material: Steel
• Size: 4-1/2" Inch x 4-1/2" Inch
• Gauge:.134
• "D" Outside Diameter: .585
• "S" Distance (Swage Line): 1-29/32"

• 12 wires

• 6 circuits

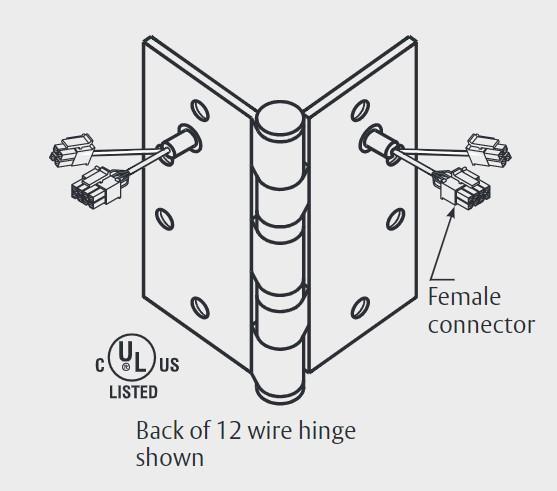

• An 8 position and a 4 position connector is used for 12-wire hinges
• Applications: Healthcare, K-12 Schools, Offices, Airports, Universities
• Each hinge features concealed plug connectors that eliminate the need for separate or exposed wiring. Standard connectors make installation quick and simple. Brass eyelets add protection and durability.
• Electric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door opening
• For 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used
• Electric hinges should be installed in the center position on the
  door. Installation instructions are packed with each hinge.
• Hinges are factory tested and specially packaged to minimize against damage during shipment
• 4.5" x 4.5" Template
• Installation Guide
• Sold individually
