Forte Concealed Clip-On Soft Closing 110° Cabinet Hinges - Multiple Attaching Methods and Overlays Available - Nickel Finish - Sold Individually

Selby

$ 4.94
SKU: SE-H900SC0

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Our Forte Concealed Clip-On Soft Closing 110° Cabinet Hinges are 6-way adjustable with drive-in or screw-on fastening. These Euro-style hinges are a cabinetmaker's workhorse for industry standard 35 mm systems. Forte hinges blend meticulous Italian technology with modern economies of production for a stellar combination of quality and value. The result is rigid quality control, the highest grade of raw materials and specification-electroplated finishes. The hinges have been tested to surpass ANSI-BFMA-KCMA norms.

Product Specifications:

  • Forte Concealed Clip-On Soft Closing 110° Cabinet Hinges
  • Attaching Methods Available: Screw-On, Drive-In

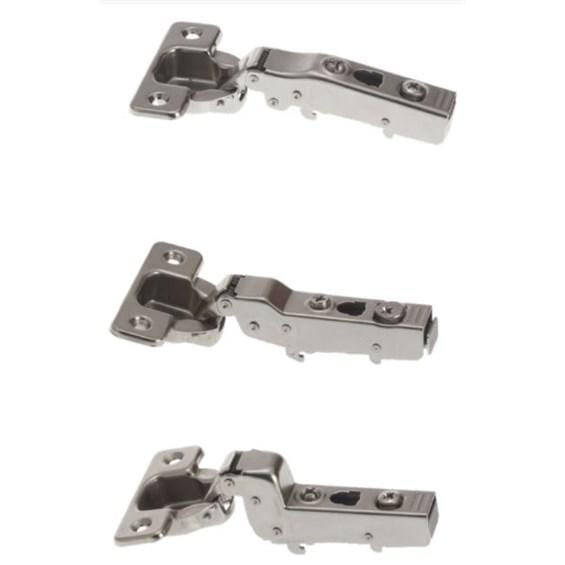

  • Overlays Available: Full, Half, Full Inset
  • Finish: Nickel
  • Screw-on cups or 10 mm dowels have nickel finish
  • Cup Depth: 11 mm
  • Door Thickness: 5/8" - 15/16"
  • Drive-in Bushings: 5/16" and 3/8"
  • Boring Distance from Edge: 3 - 7mm
  • Sold Individually

Key to using diagram formulas to determine optimum thickness of mounting plate (H) and best location of bore (K):

  • A = amount of side revealed
  • D = amount of door overlays side
  • H = thickness of mounting plate
  • K = distance of hole from edge
  • L = gap between door and side
  • S = thickness of side
  • T = thickness of door

Full Overlay:

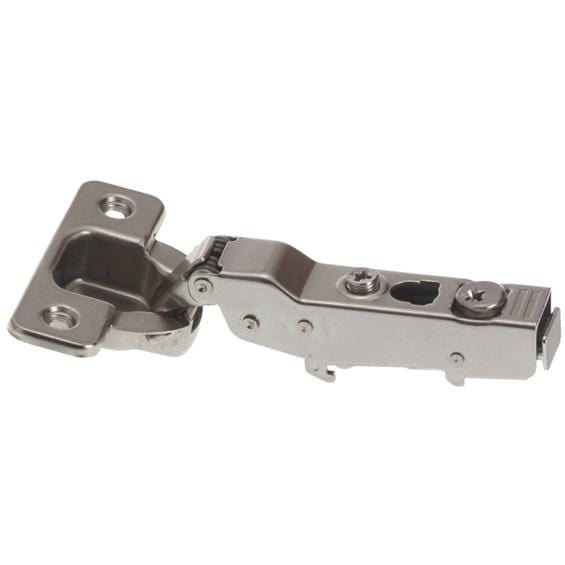

Half Overlay:

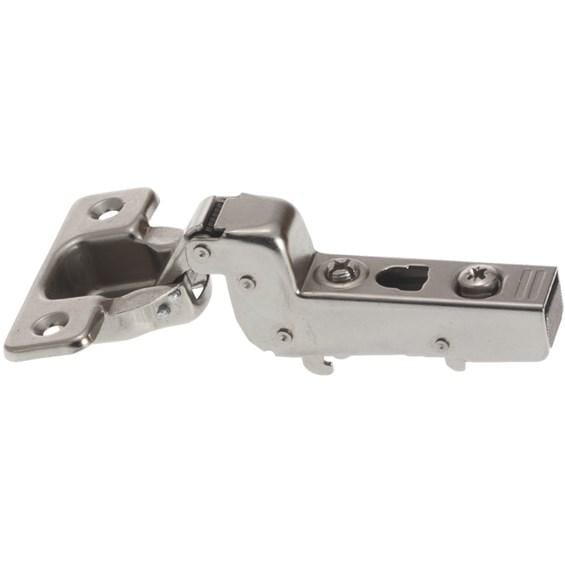

Full Inset:
