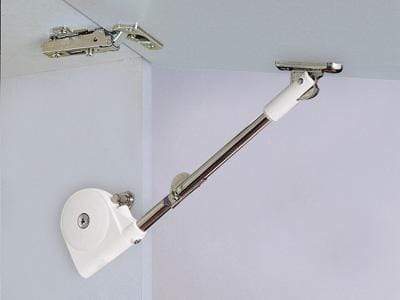

Soft-Down Flap Door Lid Stay - 25/32" Inch Thick Doors - 80°, 90°, 100° Opening - White - Sold Individually

Sugatsune

$ 33.92
SKU: SUG-SDS-C301N/WHT

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

This Soft-Down Flap Door Lid Stay is for an upward-opening flap door or top-opening flap door. It is non-handed, and designed to hold door in opened or closed position.

Product Specifications:

  • Soft-Down Flap Door Lid Stay
  • For upward-opening or top-opening flap door
  • Non-Handed
  • Height: 19.5 mm
  • Compatible Hinge Types: Concealed/Piano/Butt
  • Material of Arm: Steel, Zinc Alloy
  • Finish of Arm: Nickel
  • Other Material: White Plastic
  • Maximum Door Thickness: 25/32" Inch (20 mm)
  • Soft Close: Yes
  • Hold Open Angle (Degree): 80°, 90°, or 100°
  • Door Max. Torque (kg-cm): 70/pc, 140/pair
  • Door Max. Torque (lb-in): 60/pc, 120/pair
  • Door Min. Torque (kg-cm): 40/pc, 80/pair
  • Door Min. Torque (lb-in): 35/pc, 70/pair
  • Mounting Plate included
  • Sold Individually

Torque Calculation: Torque = Door Height × 1/2 × Door Weight

Per Piece: 40~70 kg·cm (35~60 lbs·inch)

Per Pair: 80~140 kg·cm (70~120 lbs·inch)

For Upward-Opening Flap Door:
For Top-Opening Flap Door:
