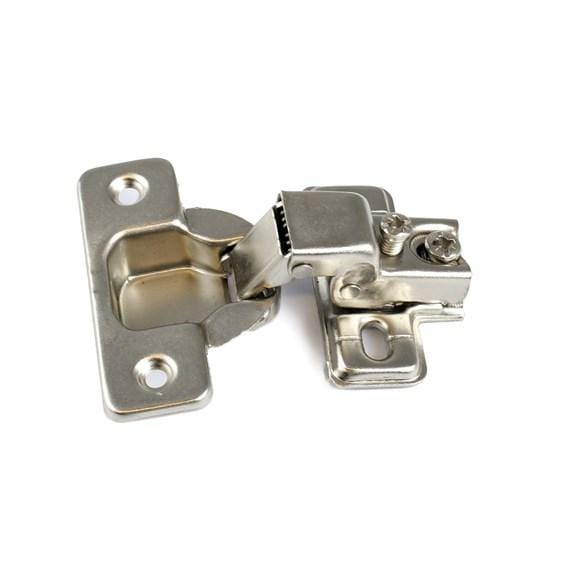

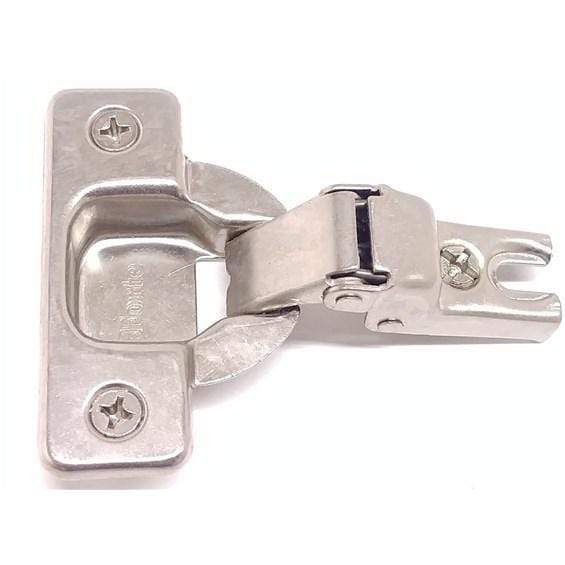

Face Frame Self-Closing Concealed Cabinet Hinges - Multiple Attaching Methods Available - Nickel Finish - Sold Individually

Selby

$ 2.00
SKU: SE-HF10045X95N

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Our Face Frame Self-Closing Concealed Cabinet Hinges are great for kitchen cabinets. They are proven performers for strength and durability. Side clips automatically locate plate and vertical and lateral adjustments can be made.

Product Specifications:

  • Face Frame Self-Closing Concealed Cabinet Hinges
  • Attaching Methods Available: Screw In, Drive In
  • Finish: Nickel
  • Cup Size: 35 mm diameter x 10 mm deep
  • Door Thickness: 5/8" and 3/4"
  • Overlays Frame: 5/8" - 13/16"
  • Gap Between Door and Frame: 5 mm
  • Drive-in Bushings: 8 mm
  • Boring distance from edge: 3 - 8 mm
  • For automatic drilling machines: Standard Pattern is similar to Blum
  • Side clips automatically locate plate and vertical and lateral adjustments can be made
