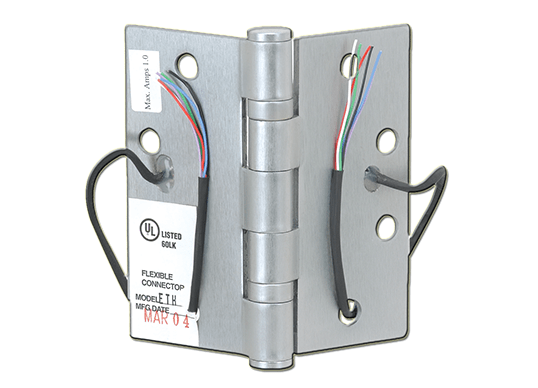

Electrified Ball Bearing Door Hinge - 4 1/2" Inches - Full Mortise - 6 Wires - Multiple Finishes - Sold Individually

Cal Royal

$ 184.78

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

This Electrified Door Hinge makes door wiring easy, safe and reliable. It is a full mortise ball bearing hinge and has 6 wires. It is available in Satin Chrome and Satin Stainless Steel finishes.

Product Specifications:

  • Electrified Door Hinge
  • Two Ball Bearings
  • Full Mortise
  • 6 wires
  • Size: 4 1/2" Inches x 4 1/2" Inches
  • Finishes Available: Satin Chrome, Satin Stainless Steel
  • Wire Gauge: 26
  • Gauge of Metal: 0.134
  • 1A @ 24V (per pair)
  • ANSI Templated Screw Hole Pattern
  • Electrified: Energy Transfer Hinges for Cylindrical Locks, Mortise Locks,  and Panic Trims
  • Power can now be transferred from the frame into the door
  • Now able to monitor the position of the door, transfer power, and incorporate both functions into a single hinge
  • Full Mortise Hinges are highly recommended for modification purposes
  • Monitoring can be supplied on a half surface hinge if the need arises
  • It is recommended that the center hinge location be used with all electrically modified hinges
  • The maximum voltage allowed in electrified hinges is 48 volts. The current (amperes) should also be taken into consideration
  • Sold Individually
