SKU: MIL-1220

Door Hinge Jig - HingeMate 350 – Complete Installation Kit with 5 Hinge and 2 Strike Plate Templates, Router Bits for 5/8” and ¼” Radius – Drill Bits and Chisel Included

In stock, ready to ship

  • ✓ Free shipping on orders over $50
  • ✓ Easy 45 day returns
  • ✓ Typically ships in 1-2 business days

Increase security and privacy in your home by replacing doors without damaging the door or jamb with the HingeMate 350. By routing matching mortises for hinges, strike plates, and latch plates into the door and jamb, you won’t have to tear a hole in the wall just to hang a better wooden door. This kit contains templates needed to rout hinge, strike plate, and latch plate mortises, and are made of ABS plastic. Rotate template to achieve 5/8” radius or 1/4″ radius.

Product Specifications:

  • Steel Template Frame: Durable steel frame with adjustable cams allow for 1 3/4” Inch and 1 3/8” Inch door settings; Can be mounted to both the door and jamb

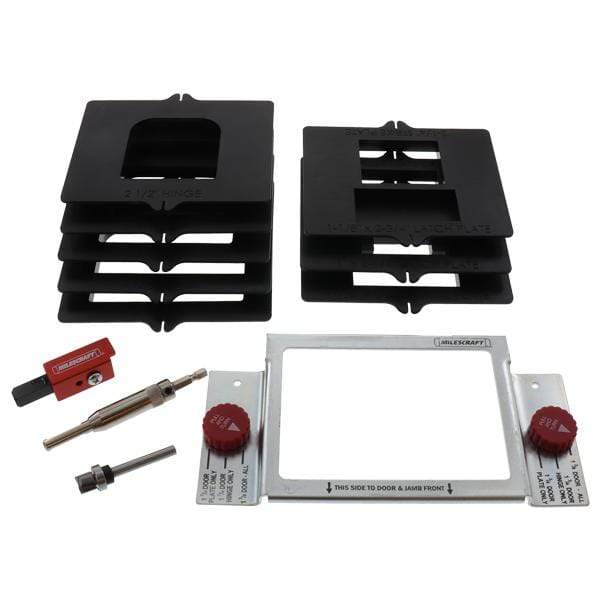

  • Installation Kit Includes:
    • Hinge Templates: 2 1/2" Inches, 3" Inches, 3 1/2" Inches, 4" Inches, 4 1/2" Inches
    • Strike Plate Templates:
      • 1 1/8" x 2 3/4" Inches
      • 1 1/2" x 2 1/4" Inches

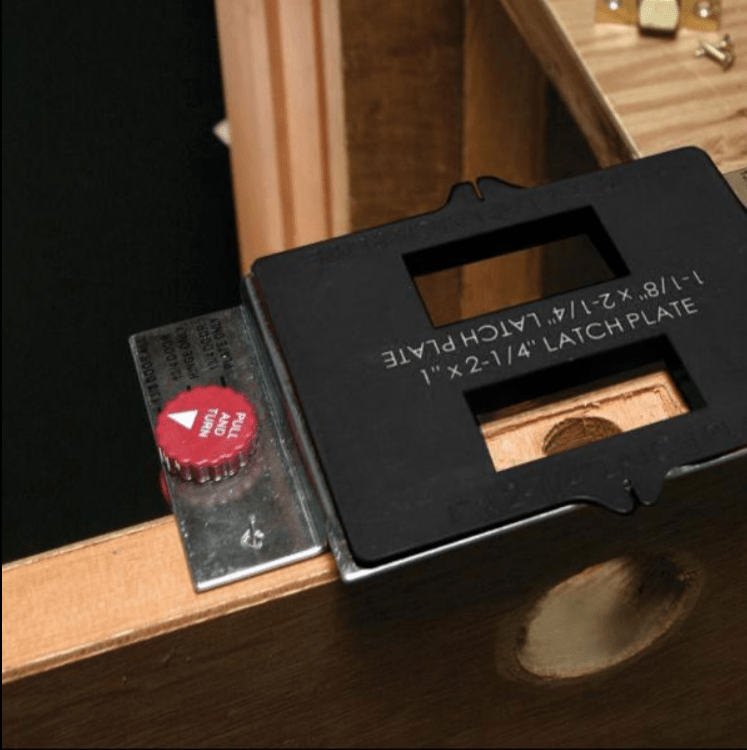

    • Latch Plate Templates:
      • 1" x 2 1/4" Inches
      • 1 1/8" x 2 1/4" Inches
      • 1 1/8" x 2 3/4" Inches

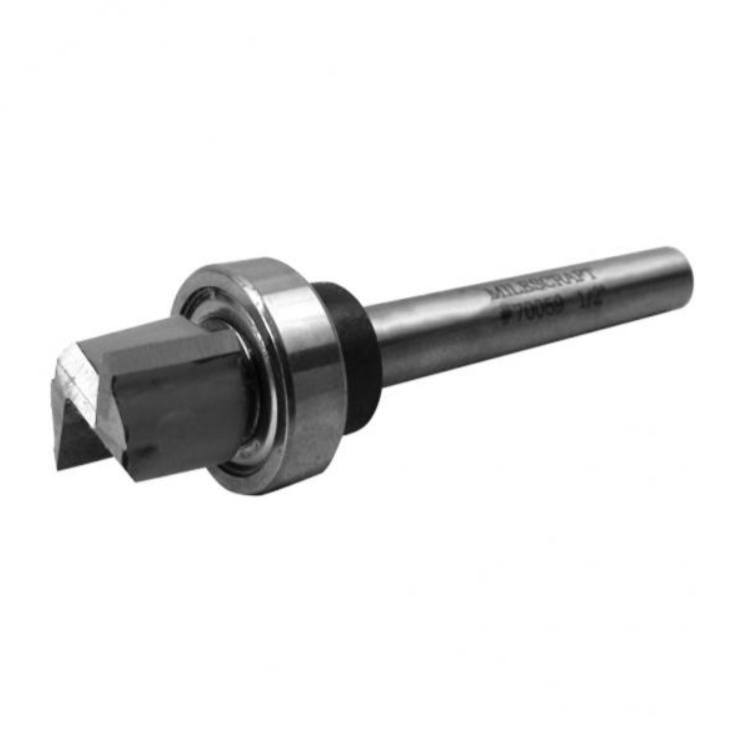

    • 1/2" Router Bit: Tip made of durable tungsten carbide; Router bit with ball bearing eliminates the need for a bushing

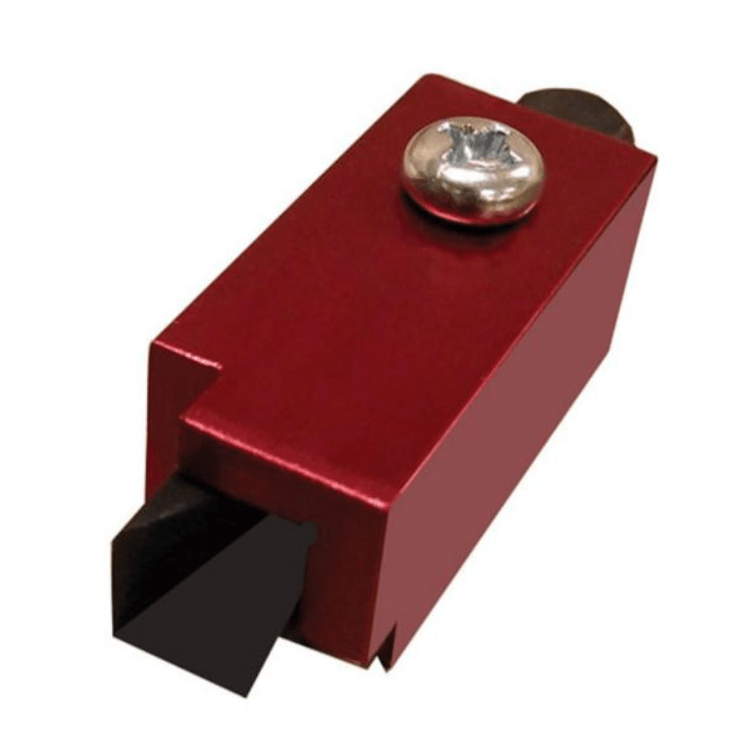

    • Corner Chisel: Hardened steel, self-aligning chisel required to mortise 90° hinges, strikes, and latches; use corner chisel to achieve square corners

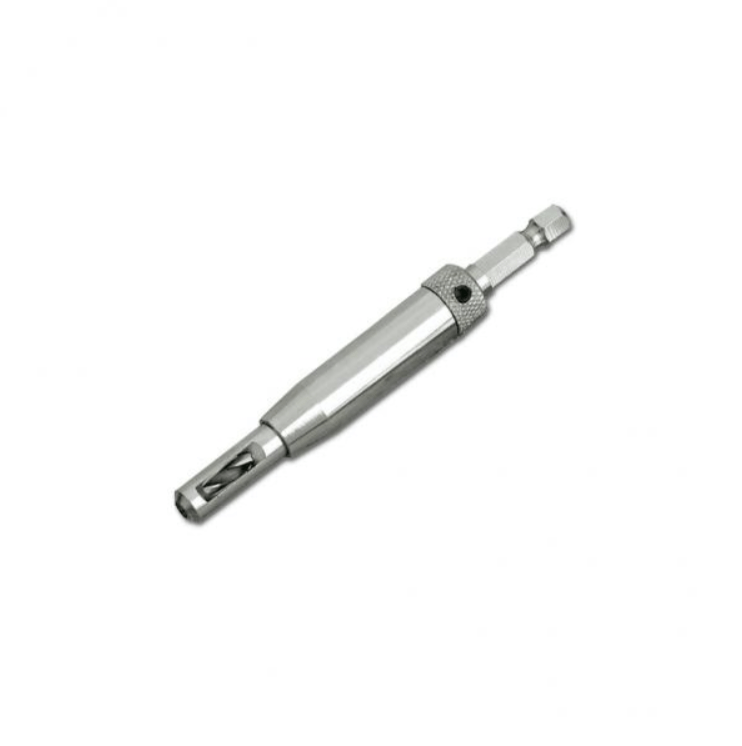

    • Hinge Bit: Pre-drill perfectly centered holes for proper alignment of hinges with this spring-loaded, self-centering drill bit
  • Rotate template to achieve 5/8” radius or 1/4″ radius
    • Installation Guide
