One-Piece Compact Cabinet Hinge - 3/8" Inch Overlay - 105° Opening - Sold Individually

Richelieu

$ 4.07
SKU: RI-38N35506180

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

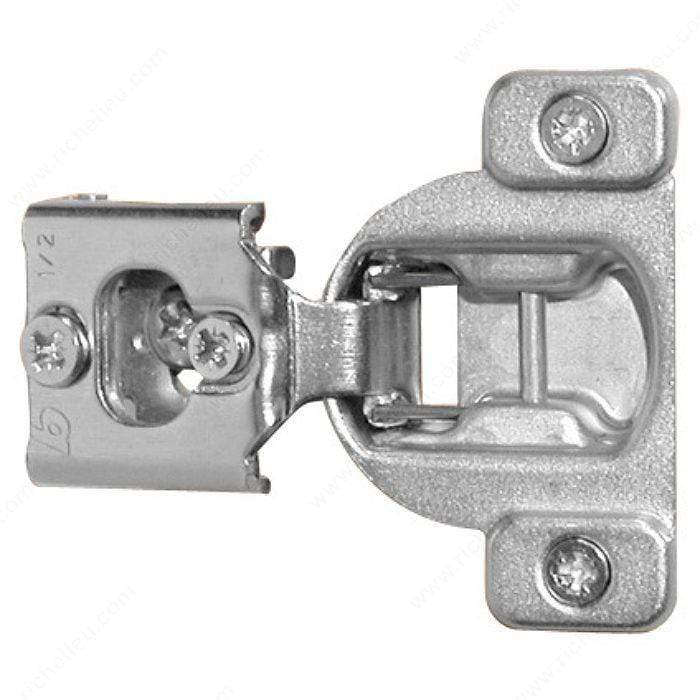

These Blum One-Piece Compact Cabinet Hinges are for face frame cabinets with a 3/8" overlay, and open to 105°.

Product Specifications:

  • Blum Cabinet Hinges
  • Hinge Type: Compact
  • Overlay: 3/8" Inch
  • Hinge Opening Angle: +105°
  • Cabinet Type: Face Frame
  • Use Type: Standard Door
  • Maximum Door Thickness: 3/4" Inch
  • Milling Depth: 7/16" Inch
  • Milling Diameter: 1 3/8" Inches
  • Closing Mechanism: Spring Closing
  • Material: Steel
  • Mounting Type: Wrap-around Mount
  • Fixing Type: Screw-On
  • 7/16" cup depth
  • +/- 1/8" height adjustment
  • +/- 1/16" side adjustment
  • +3/32" and -1/32" cam depth adjustment
  • Plate included
  • Sold Individually
