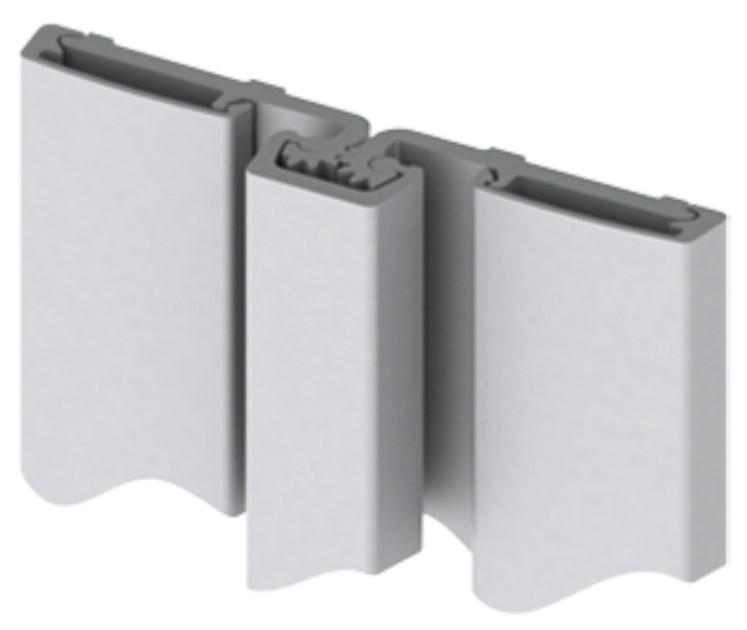

Continuous Geared Hinge - Full Surface - Heavy Duty - 83" Inches - Aluminum - Sold Individually

These Continuous Geared Hinges are heavy duty full surface and are for use with bi-fold applications. They are made of aluminum, measure 83", and are available in a Clear finish.

Product Specifications:

• Continuous Geared Hinge
• Full Surface
• Heavy Duty
• Size: 83" Inches
• Material: Aluminum 6063-T6

• Finish: Clear
• For use with flush mount short leaf applications
• Non-handed
• Applications: Bi-fold applications; Security moldings
• Clearance: 1/32" (1 mm) minimum recommended for hinge side
• Door Reinforcement: Non required
• Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)
• Fasteners:  1/4-20 x 1-1/4" Sexbolt (Screw + Post); #12-24 X 11/16" Flat Head Self-Drill Screws

• Friction free
• Meets LEED® Requirements
• Concurrent Bearing Slots
• Anodized
• Straight Line Hole Pattern
• ANSI/BHMA A156.26 C
• Specs
• Hinge Modifications and Options
• Template
• Installation Guide
• Electric Modification
• Installation for UL Fire-Rated Hinge Studs
• Sold individually
