Continuous Geared Hinge - Full Surface - Heavy Duty - 83" Inches - Aluminum - Sold Individually

These Heavy Duty Continuous Geared Hinges are made of Aluminum and built to handle abuse from high-traffic applications. They are applied to the surface on the edge of the frame and door. No machining or reinforcement is required. They put an end to costly and irritating hinge failure problems, the most common cause of entrance failure. They are Full Surface mounted, measure 83", and are available in a Dark Bronze or Clear finish.

Product Specifications:

• Continuous Geared Hinge
• Full Surface
• Heavy Duty: Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame
• Size: 83" Inches
• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings
• Finishes Available: Dark Bronze, Clear
• Non-handed

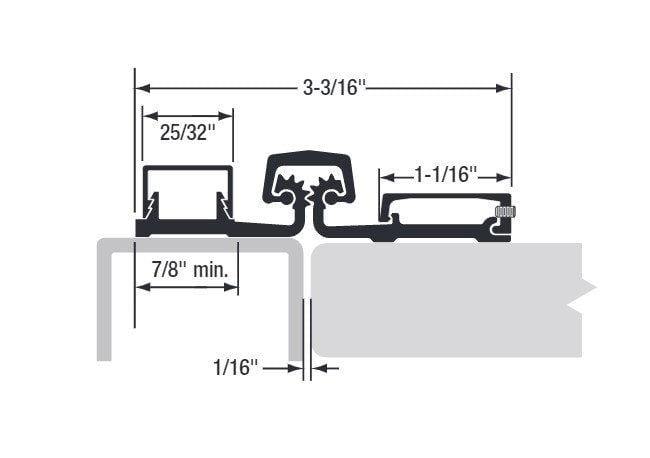

• For use with applications requiring 1/16" inset with center pivoting action
• Load/Frequency Ratings: For 1-3/8" – 1-3/4" doors standard; 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.)
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced
• BHMA Certification: ANSI/BHMA A156.26-2006 Grade 1
• Screw Count: Door Screws - 11; Frame Screws - 15
• Specifications
• Sold individually
