Continuous Geared Hinge - Concealed Leaf - Heavy Duty - 83" Inches - Aluminum - Sold Individually

These Heavy Duty Continuous Geared Hinges are made of Aluminum and built to handle abuse from high-traffic applications. They are applied to the surface on the edge of the frame and door. No machining or reinforcement is required. They put an end to costly and irritating hinge failure problems, the most common cause of entrance failure. They are concealed, measure 83", and are available in a Clear finish.

Product Specifications:

• Continuous Geared Hinge
• Concealed
• Heavy Duty: Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame and door
• Size: 83" Inches
• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings
• Finish: Clear
• Non-handed

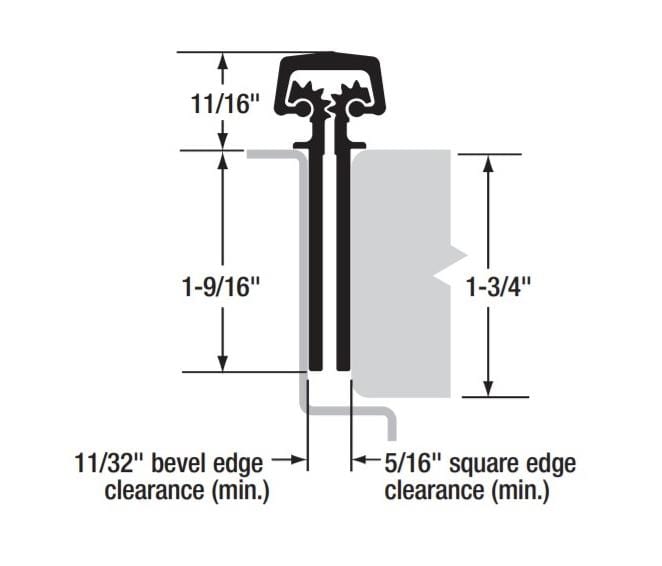

• For use with Flush Mount Short Leaf applications
• Load/Frequency Ratings: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.)
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with SELECT hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced
• BHMA Certification: ANSI/BHMA A156.26-2006 Grade 1
• Screw Count: Door Screw - 19; Frame Screws - 19
• Specifications
• Sold individually
