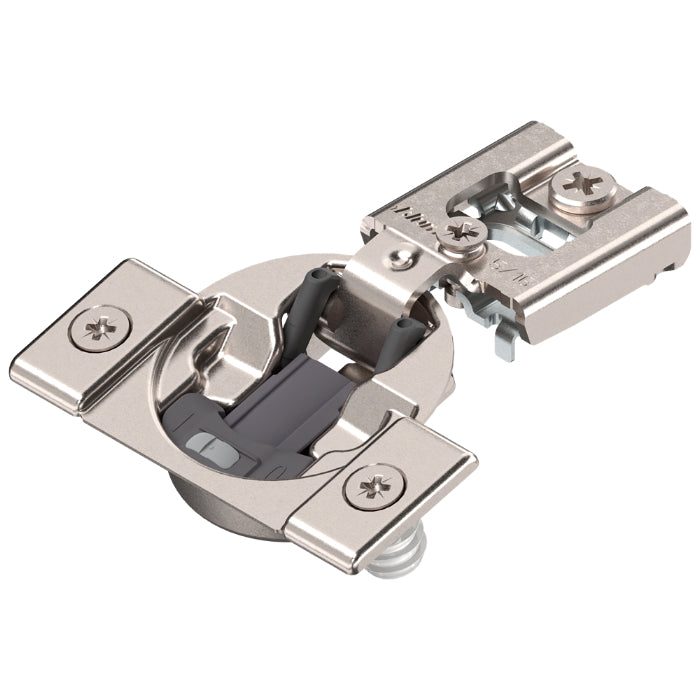

Compact Blumotion Concealed Cabinet Hinge - 1/2" Inch Overlay - 105° Opening - Soft Close - Sold Individually

These concealed face-frame hinges have integrated Blumotion with soft-close integrated into the hinge cup. They have a deactivation switch for small/light doors, and an overload safety feature. Press-in hinges must be inserted with knock-in tool or the Compact insertion ram.

Product Specifications:

• Concealed Face Frame Blum Cabinet Hinges
• Hinge Type: Compact Blumotion
• Mounting Type: Wrap Around
• Hinge Opening Angle: 105°
• Overlay: 1/2 Inch
• Fixing Type: Screw-On
• Closing Type: Soft-close
• 45 mm boring pattern
• Cup Depth: 7/16"
• +/- 1/8" height adjustment
• +/-1/16" side adjustment
• +/- 3/32", - 1/32" cam depth adjustment
• One-piece wraparound hinge
• BLUMOTION soft close integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• Dowel hinges must be inserted with knock-in tool or COMPACT insertion ram
• Sold Individually
