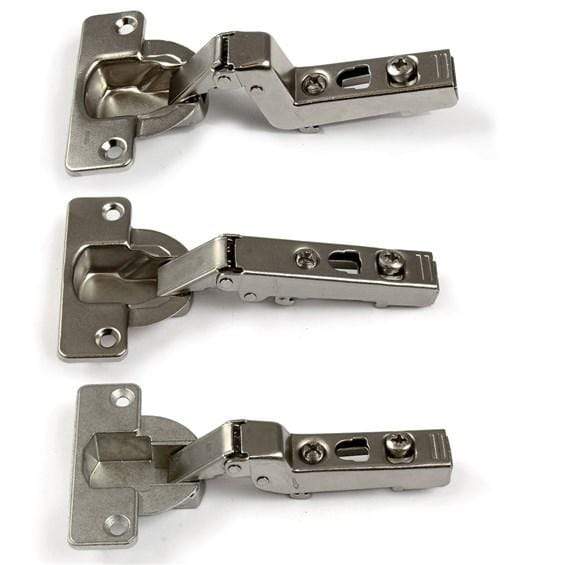

Clip-On Self-Closing Concealed Hinges - 1 9/16" Inches - Multiple Overlays Available - Nickel Finish - Sold Individually

Clearance- On Sale for 50% Off. ALL SALES ARE FINAL. THESE ITEMS ARE NON-REFUNDABLE.

Our Clip-On Self-Closing Concealed Hinges are ideal for thick doors and pocket doors that require extra clearance for mountings.

These hinges are a great choice for doors up to 1 9/16" thick. The large cup (40 mm diameter x 13 mm) permits a larger turning radius to accommodate thicker, heavier doors. These self-closing, spring-loaded hinges open 95°, and are 6-way adjustable with drive in or screw on fastening. They feature instantaneous snap on, clip-on mounting. The hinges have been tested to surpass ANSI-BFMA-KCMA norms.

Product Specifications:

• Clip-On Self-Closing Concealed Hinges
• Cup Size: 1 9/16" Inches diameter x 1/2" Inch deep (40 mm diameter x 13 mm deep)
• Door Thickness: 3/4" Inch - 1 9/16" Inches (20 mm - 40 mm)
• Drive-in Bushings: 5/16" and 3/8"
• Boring distance from edge: 1/9" - 11/40" (3 mm - 7 mm)
• Overlays Available: Full
• Finish: Nickel
• Open to 95°
• 6-way adjustable
• Sold Individually

Key to using diagram formulas to determine optimum thickness of mounting plate (H) and best location of bore (K):

• A = amount of side revealed
• D = amount of door overlays side
• H = thickness of mounting plate
• K = distance of hole from edge
