Clearance-Concealed Door Hinges - Heavy Duty Invisible - Sugatsune - Multiple Finishes Available - Sold Individually

Clearance- On sale for 40% off. Hinges have minor scratches and are missing some screws, but over all in great shape and fully functional.

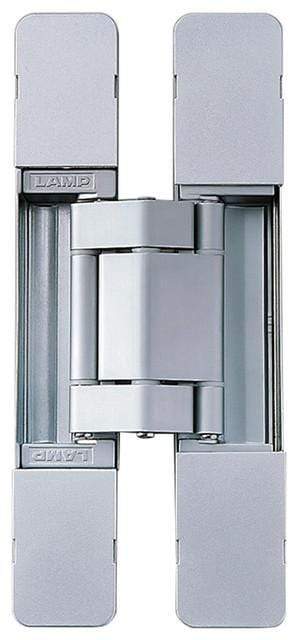

Sugatsune's Heavy Duty Invisible Hinge features vertical, horizontal and depth adjustment after the hinge is installed so you always get a perfect fit. You can hang doors up to 275 lbs. when using 3 hinges. A 2-piece design makes for easy door installation or removal and the included cover caps hide all of the screw heads for a clean, finished appearance. The minimum door thickness is 1-1/2" and the maximum door size is 94-1/2" H x 35-7/16 W. This hinge has successfully passed a 300,000 open and close cycle test.

Allows installing hinged door flush with the wall, resulting the door with a seamless look.

• 3 WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
• Easy installation and after-installation adjustment.
• Successfully passed 300,000 open/close private cycle tests.
• Supplied with steel flat head screw.
• Cover hides all screw heads for clean appearance.
• Door weight : Max. 100kg (220lbs)/2pcs, 125kg (275lbs)/3pcs
• Door Thickness : Min. 38mm(1-1/2")
• Max. Door Size : H 2400mm (94-1/2") × W 900mm (35-7/16")
• Finish: Dull Nickel(DN), Black(BL), Dull Chrome(DC), Polished Nickel(PN), White(WT)
• Optional HES3D-E190BKT mounting brackets available for installation onto steel doors and frames.
• Sold Individually
