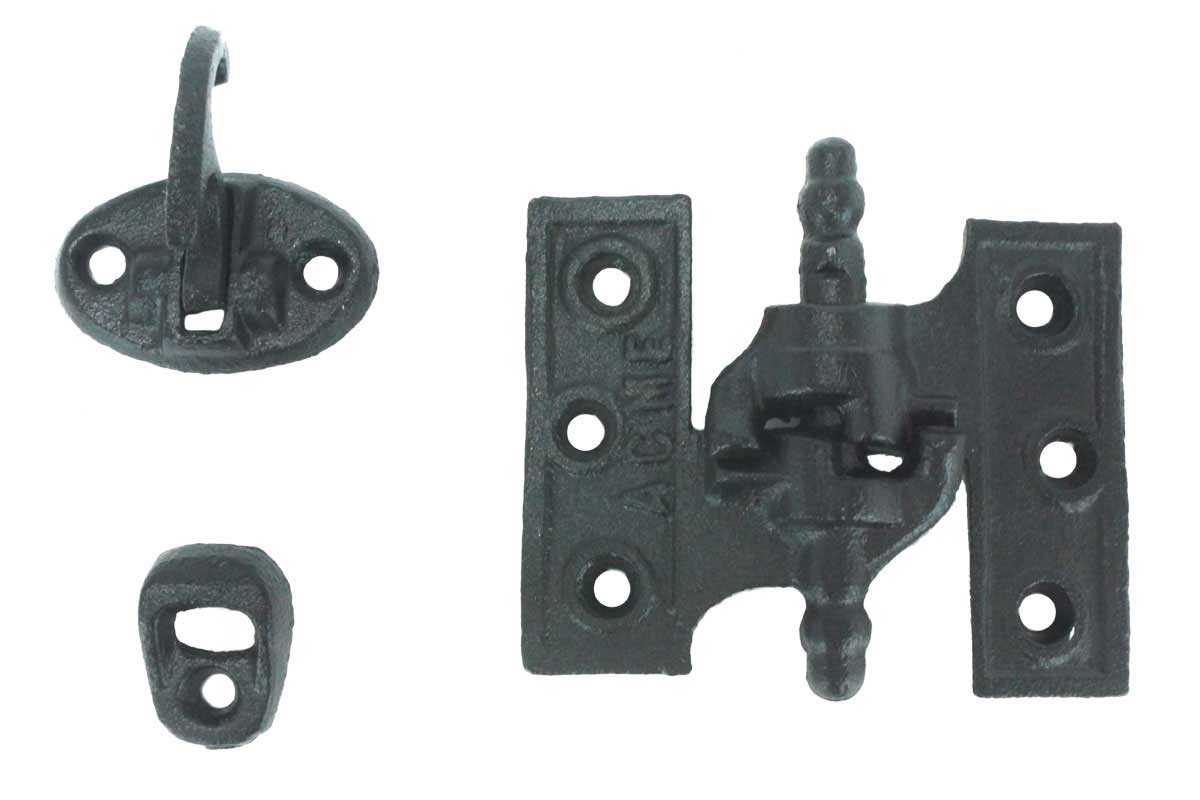

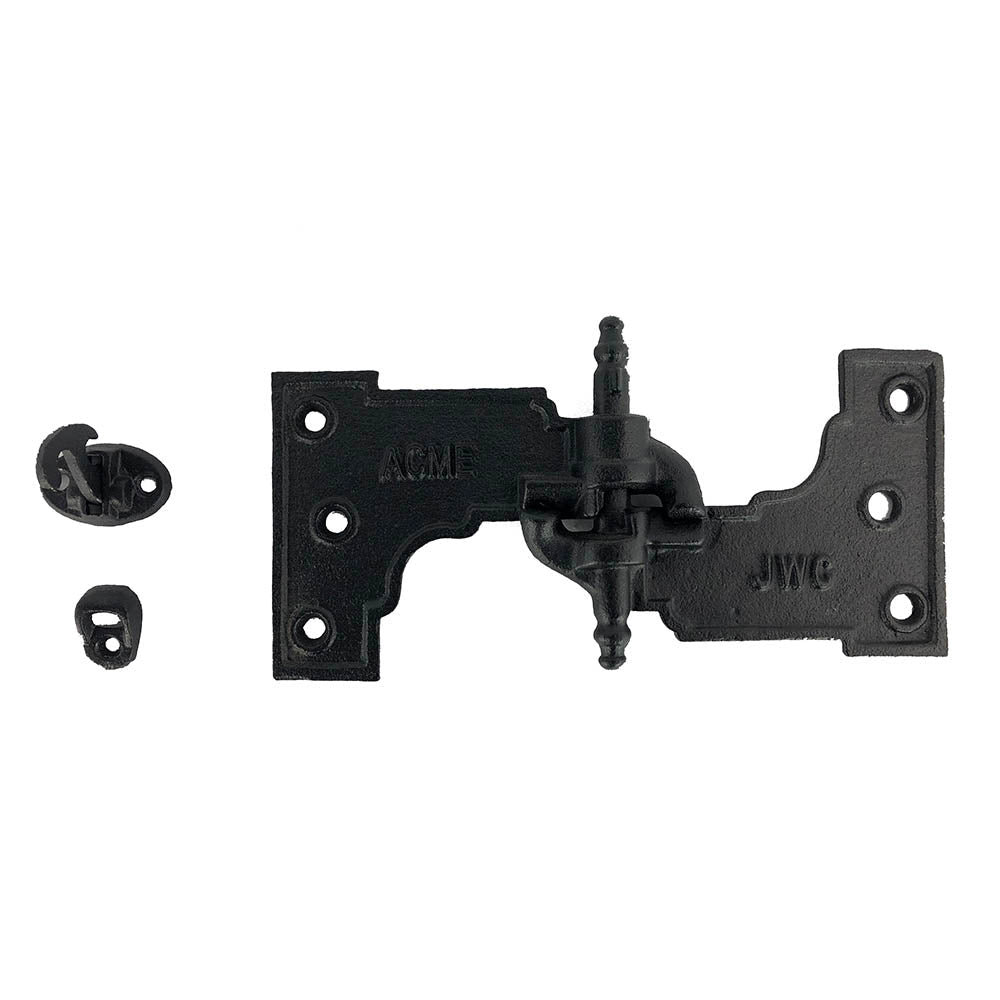

Acme Mortise Shutter Hinges - WeatherWright Coated - Multiple Sizes Available - Cast Iron - Sold as Set

These Acme Mortise Shutter Hinges (also called Acme, Lull & Porter - ALP) are the original design and an exact fit for most old hinges of the same type, and can be removed completely without tools. They are available in a wide variety of sizes, and have a WeatherWright™ coating, making them resistance to the elements.

Product Specifications:

• Acme Mortise Shutter Hinges
• Material: Cast Iron
• Finish: WeatherWright™ Powder Coated
• Resist the elements and are ready to install–no primer or painting required

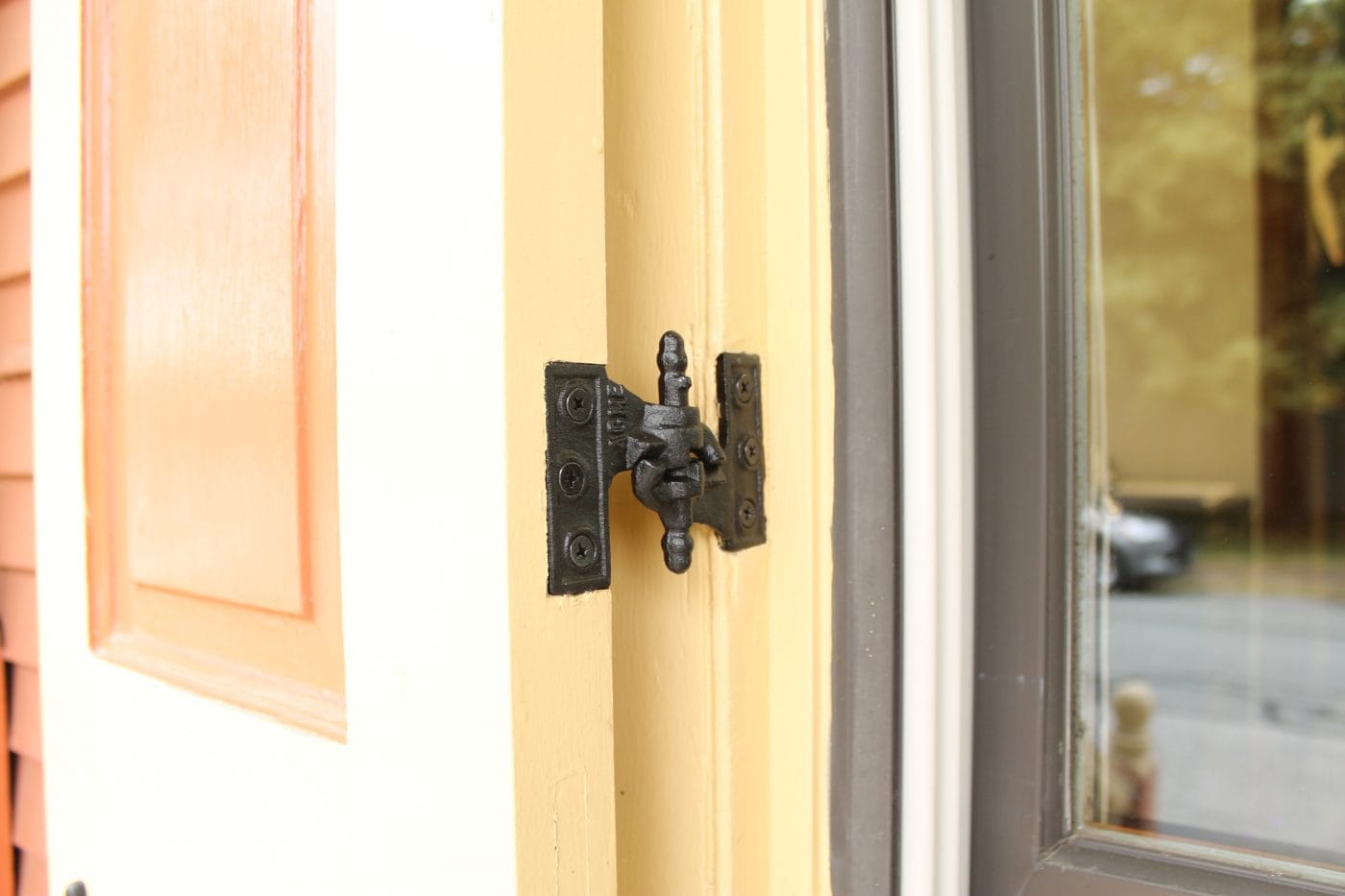

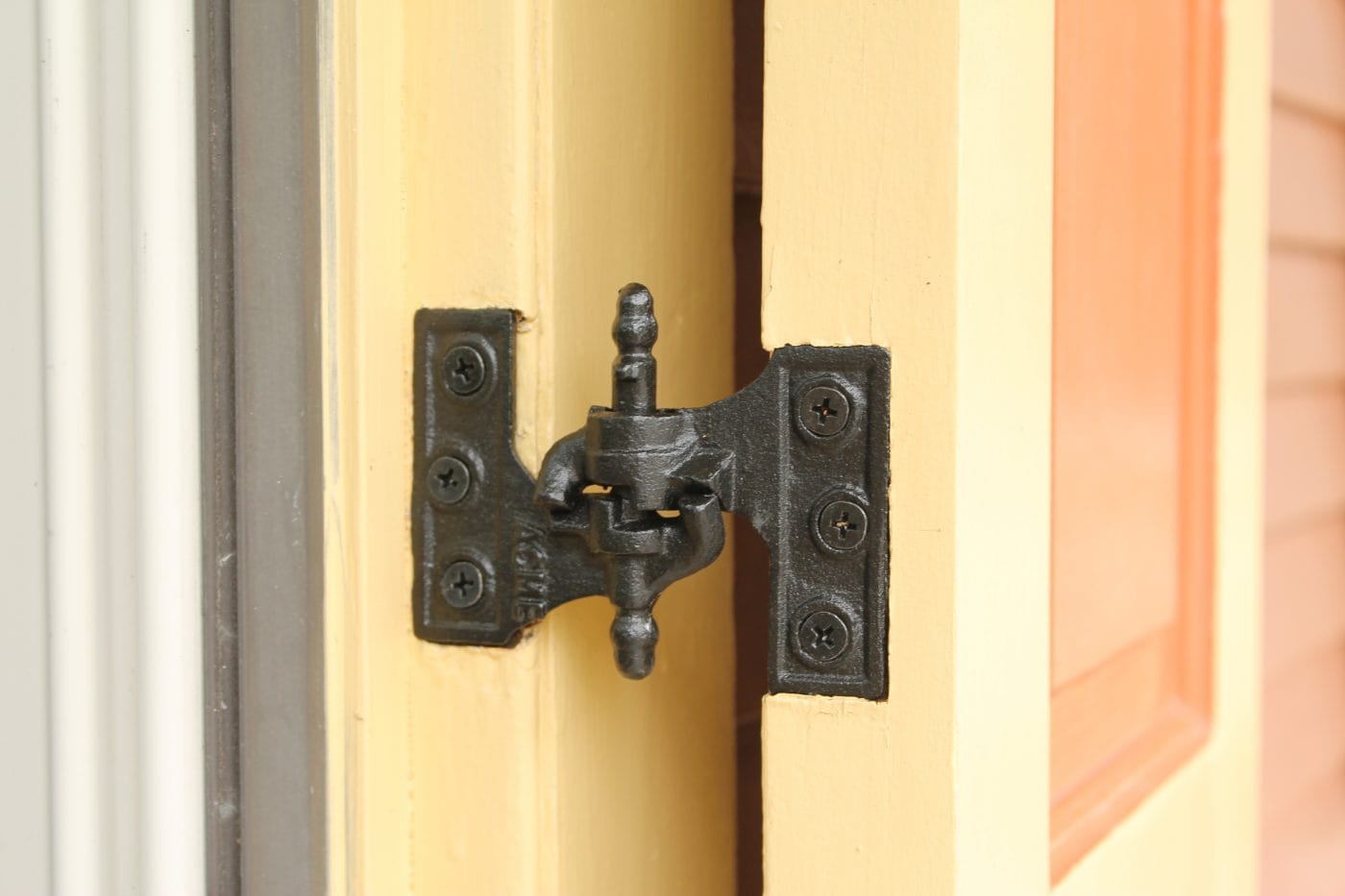

• Mortised into the edge of the shutter and window casing
• This is the original design and an exact fit for most old hinges of the same type
• Once-patented cam system locks the hinge in the open position
• Shutters lift off without tools

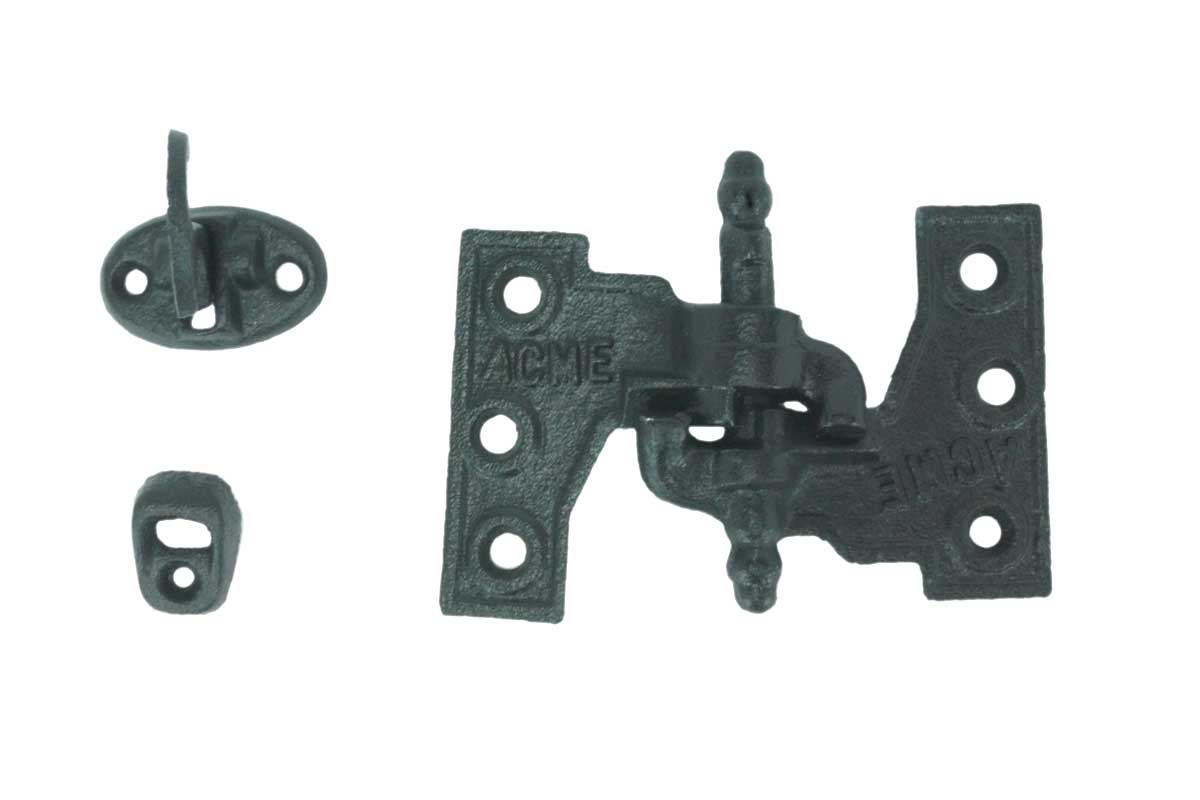

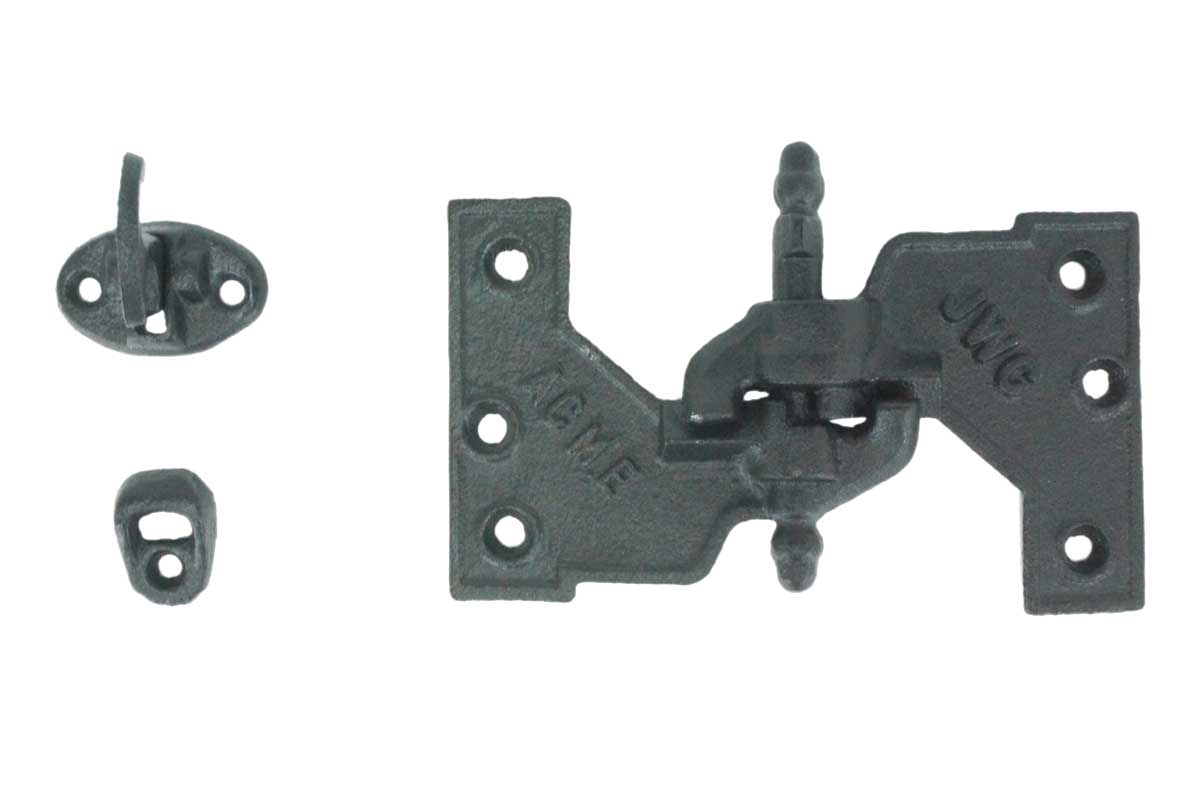

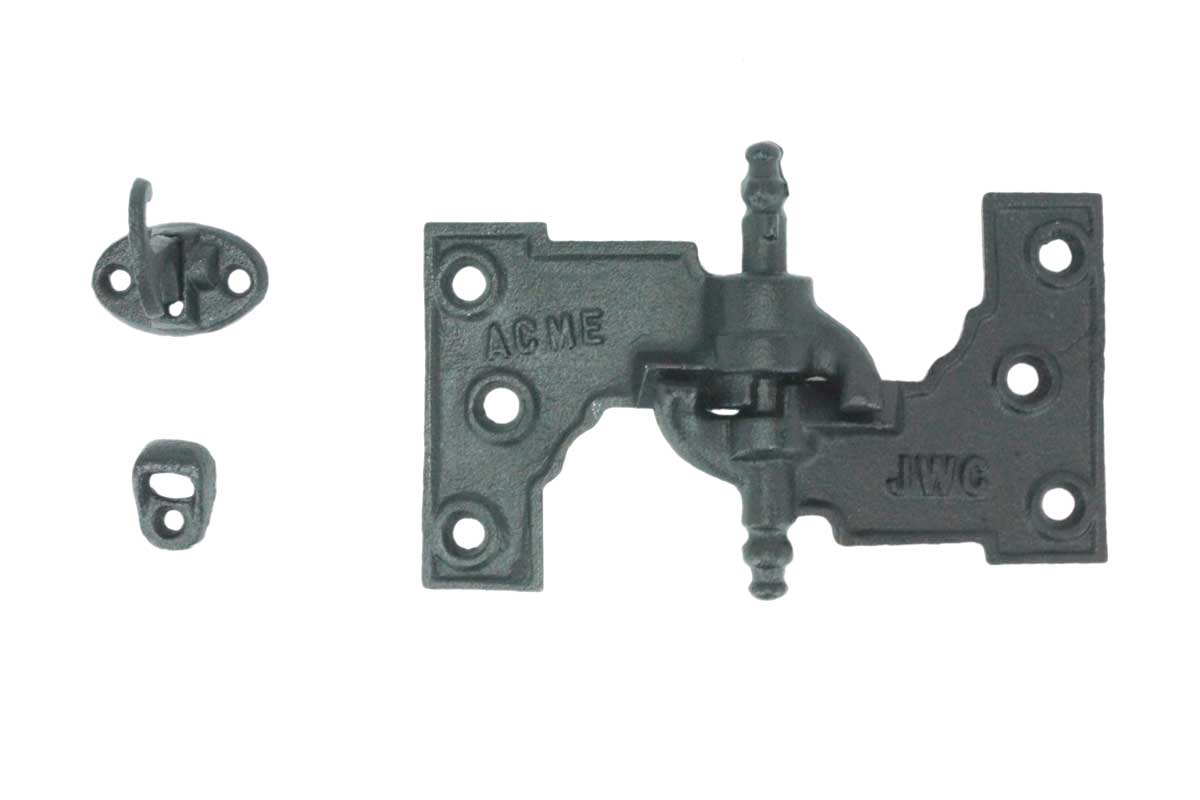

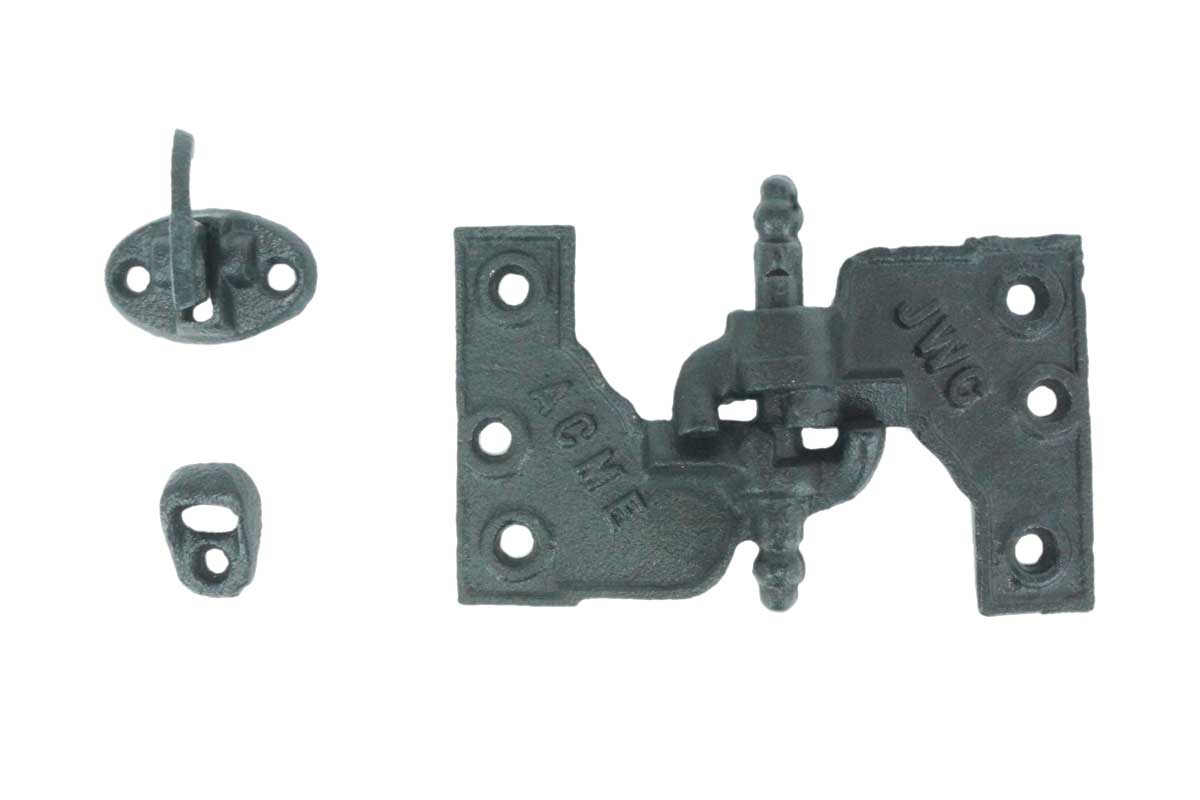

• Sold as Set - Each set contains 2 left-hand hinges, 2 right-hand hinges, and 2 sets of fasteners — enough shutter hardware to complete one window
• Additional Screws but can be purchased separately
• Click here for Screw Set for #88-372, #88-373, #88-374, #88-375, #88-376 Acme Mortise Shutter Hinges (088370)
• Click here for Screw Set for #88-377, #88-378 Acme Mortise Shutter Hinges (088371)
• Shutter weight calculated using 2 hinges per shutter, with maximum width, height, and weight as shown in table below

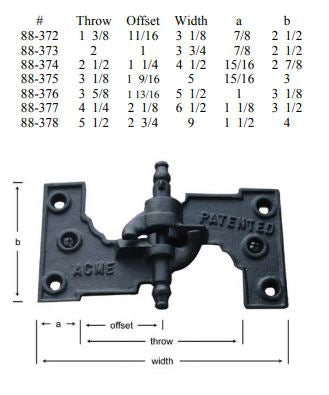

• Sizes Available:


  #	Throw	Offset	Width	a	b	Max. Width	Max. Height	Max. Weight
  88-372	1-3/8"	11/16"	3-1/8"	7/8"	2-1/2"	24"	60"	25 lb.
  88-373	2"	1"	3-3/4"	7/8"	2-1/2"	24"	60"	25 lb.
  88-374	2-1/2"	1-1/4"	4-1/2"	15/16"	2-7/8"	24"	60"	50 lb.
  88-375	3-1/8"	1-9/16"	5"	15/16"	3"	24"	60"	50 lb.
  88-376	3-5/8"	1-13/16"	5-1/2"	1"	3-1/8"	24"	60"	50 lb.
  88-377	4-1/4"	2-1/8"	6-1/2"	1-1/8"	3-1/2"	24"	60"	75 lb.
  88-378	5-1/2"	2-3/4"	9"	1-1/2"	4"	24"	60"	75 lb.




• Installation Guide
• General Shutter Hardware Installation Details
