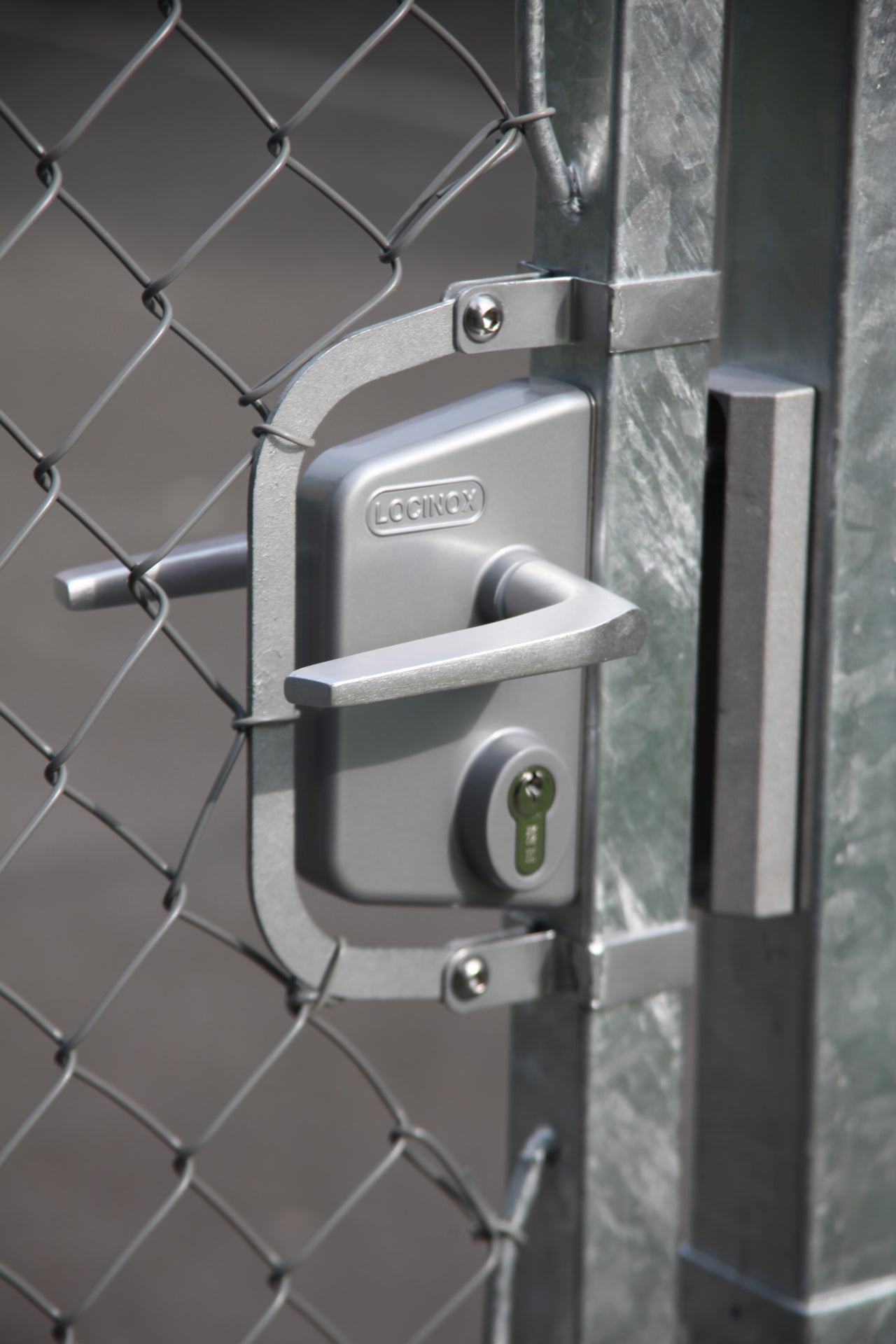

Surface Mounted Gate Lock - For Square or Flat Profiles 3/8" Inch to 3" Inch - Multiple Finishes - Sold Individually

These high quality surface mounted gate locks have aluminum housing and stainless steel mechanism. We recommend this lock as the standard for your industrial gates. The latch and dead bolt have 3/4" continuous adjustment to allow perfect latching / locking of the mechanism. A stainless steel throw of 7/8" guarantees secure locking. The latch gap required is keep dependent, but the standard and security keeps require a 1-1/4" latch gap. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig. They are available in a black or silver finish.

Product Specifications:

• Surface Mounted Gate Lock
• Profile Shapes: Square, Flat
• Profile Sizes:
• 3/8" to 1-1/4"
• 1-1/4" to 2"
• 1-1/2" to 2-1/2"
• 2-1/2" to 3"

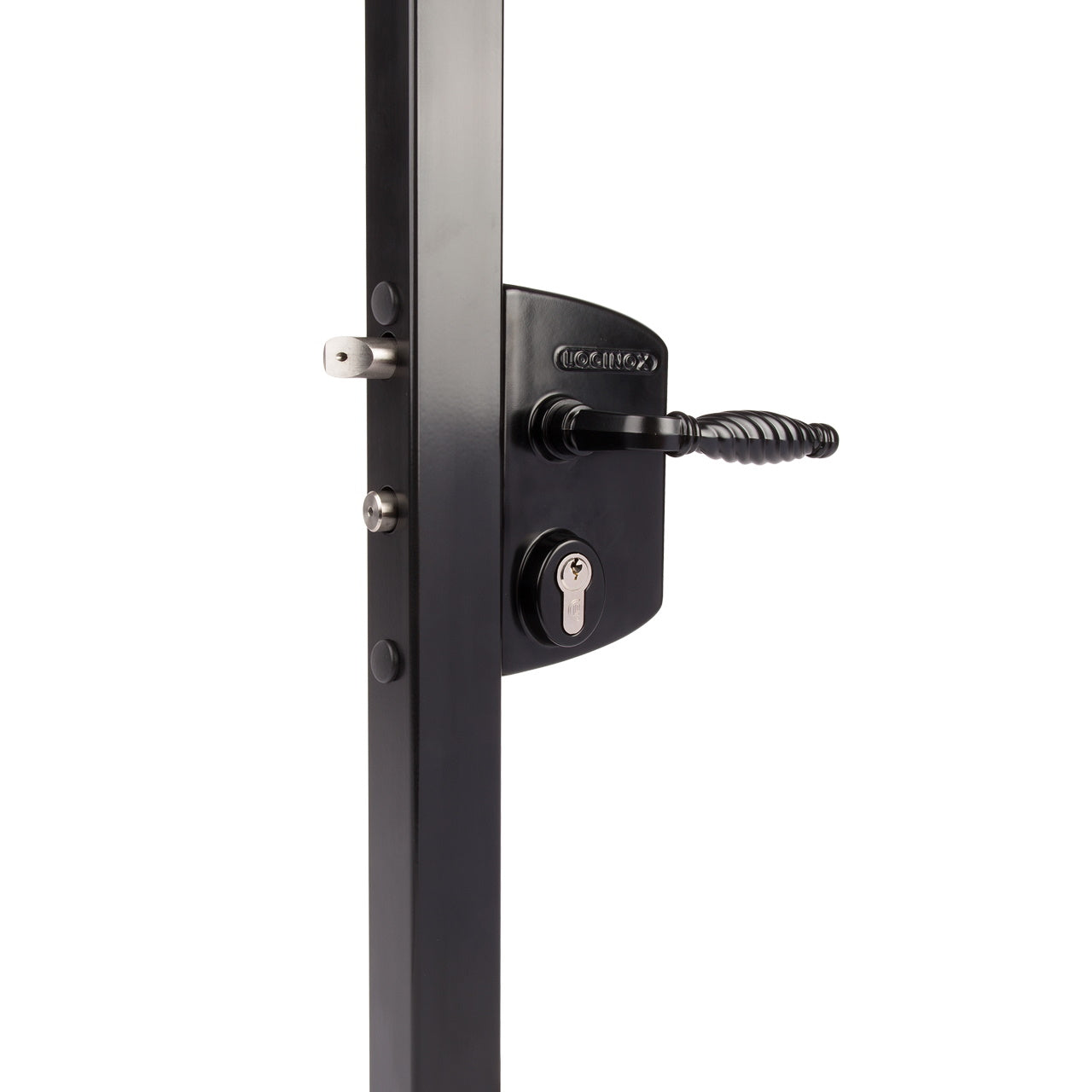

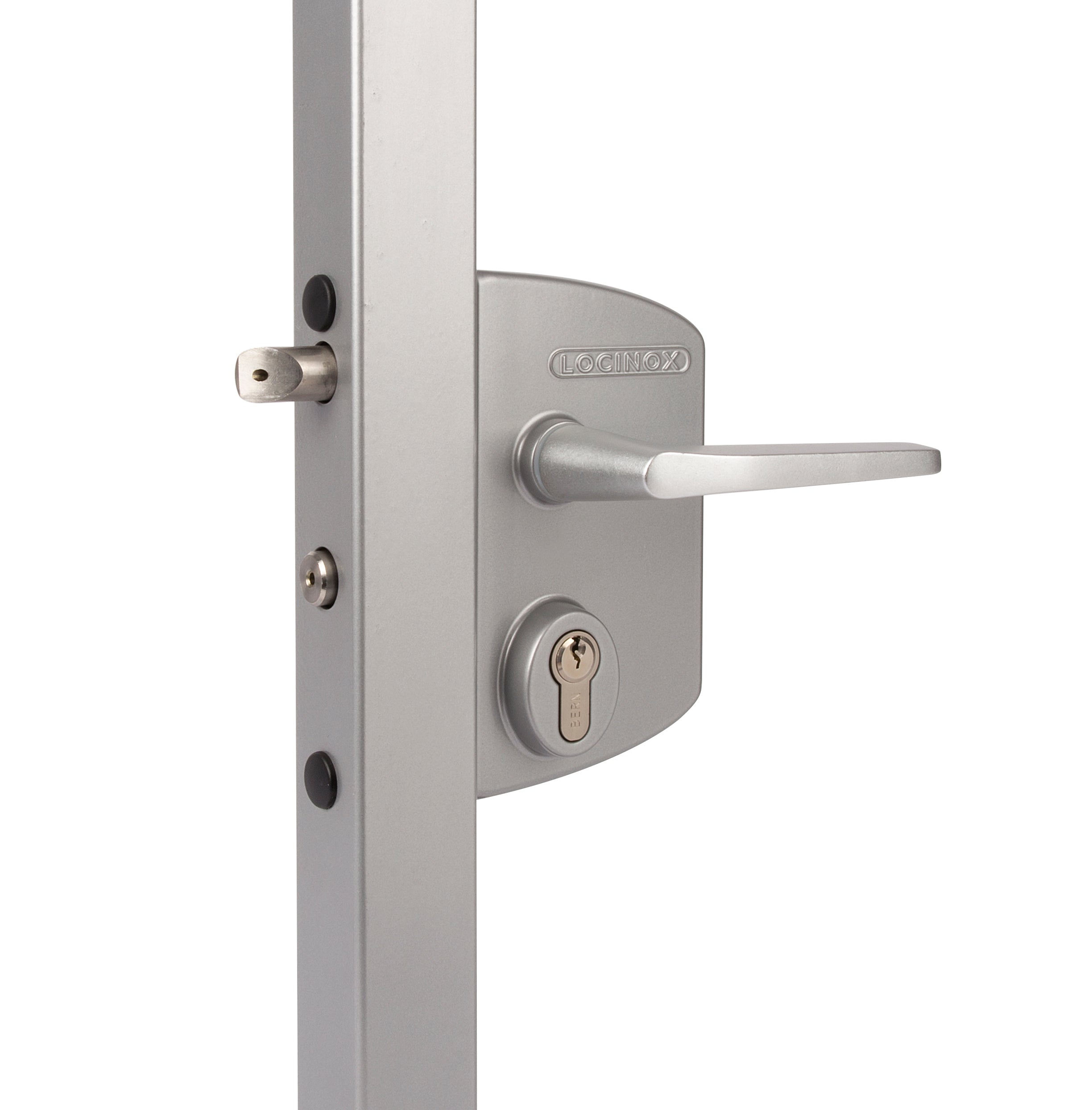

• Finishes Available: Black, Silver
• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test

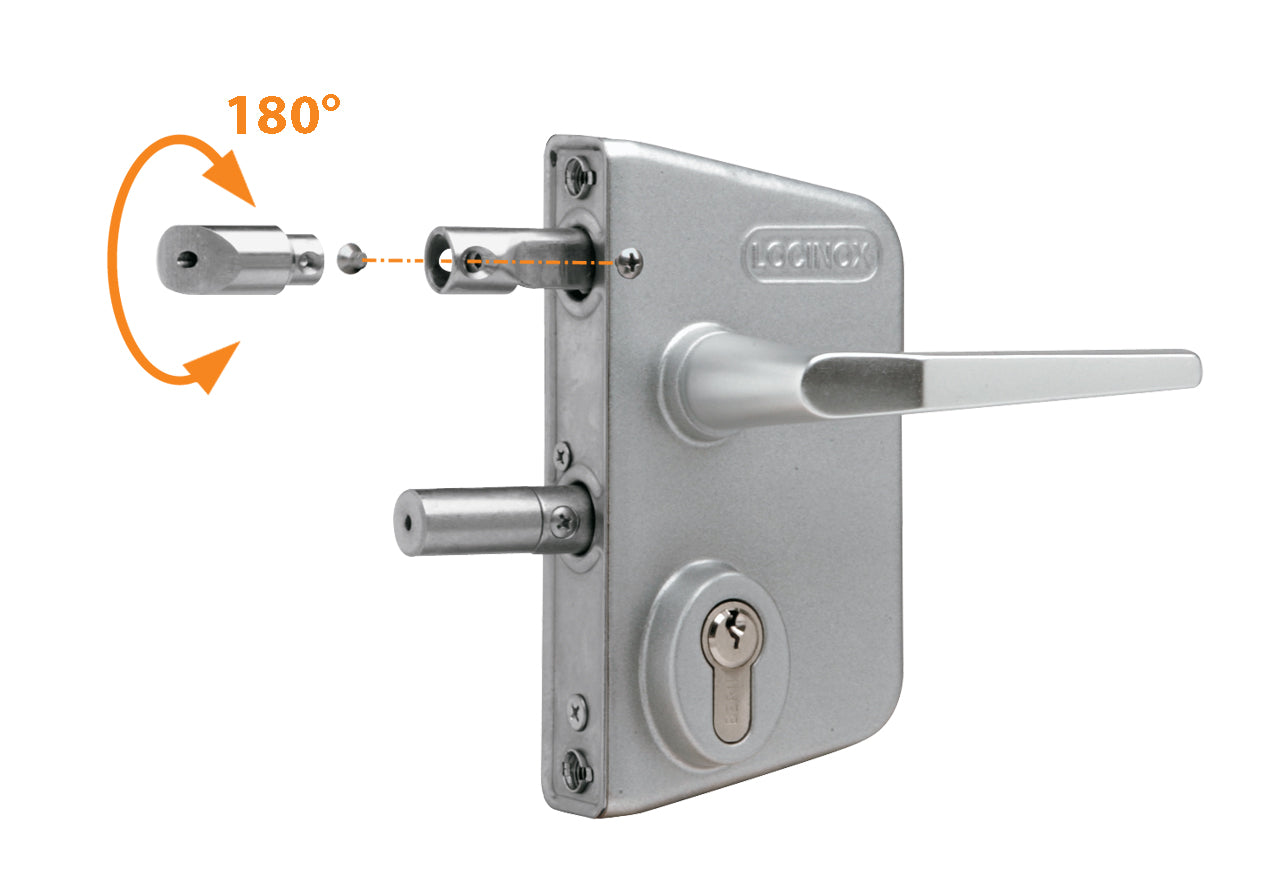

• Easy left or right changing of the self-latching daybolt
• Throw of the dead bolt, 7/8" in 1 turn of the key
• Key-operated self-latching bolt, allows Free Exit application

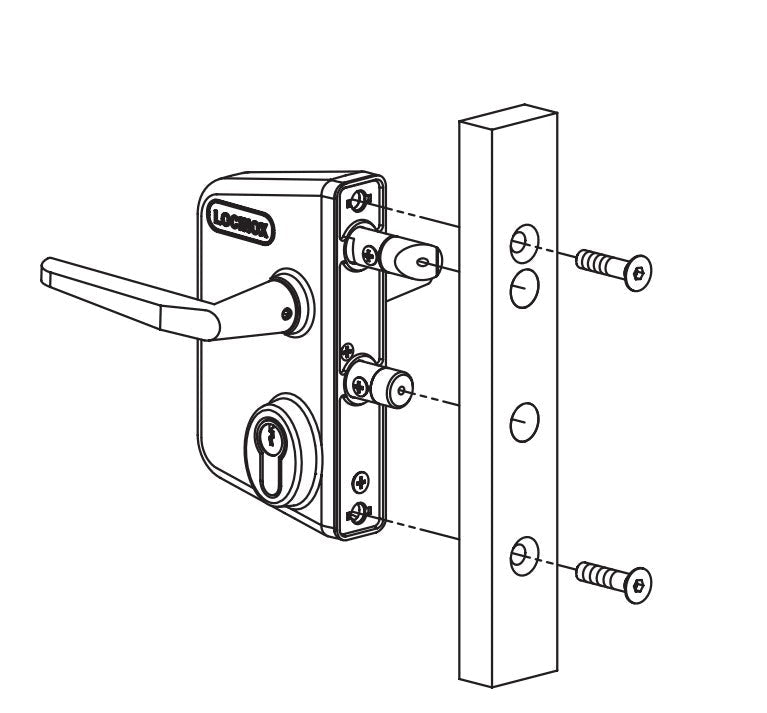

• 4-hole mounting with two hex head socket screws
• Center distance bolts: 2-3/8"
• Continuous adjustment of the daybolt up to 3/8" without removing the lock box
• Stainless steel mechanism
• With 3006FA - Zamac handle pair & Cylinder: VSZ - Keyed to differ
• Handle depends on color: silver locks ship standard with the modern aluminum anodized handle pair and all other colors ship with the black ornamental handle pair
• Sold individually
• Installation Guide
