SKU: 77108523

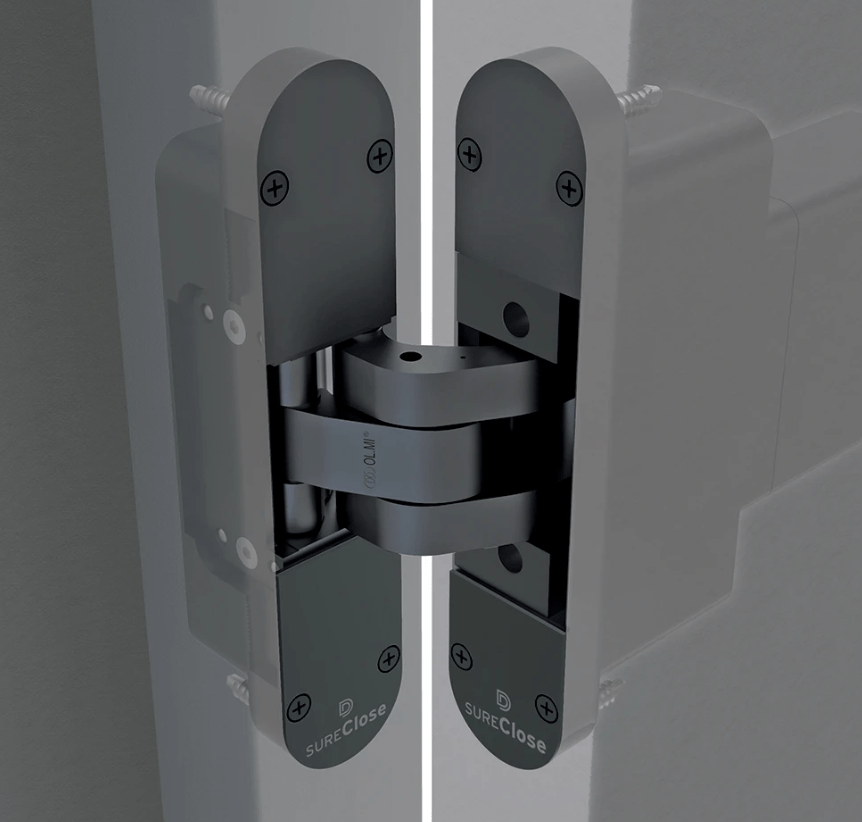

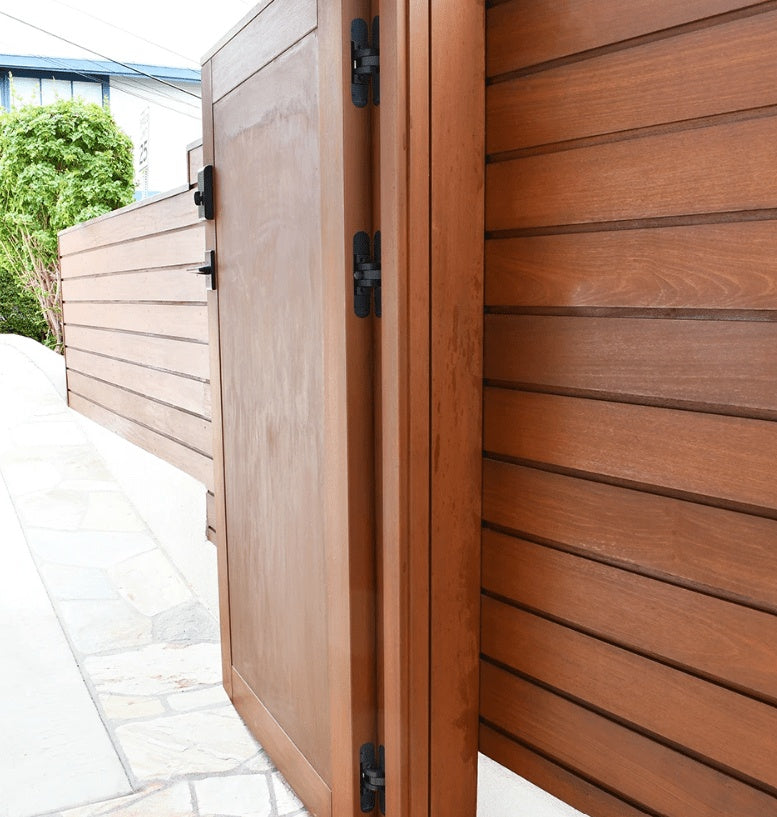

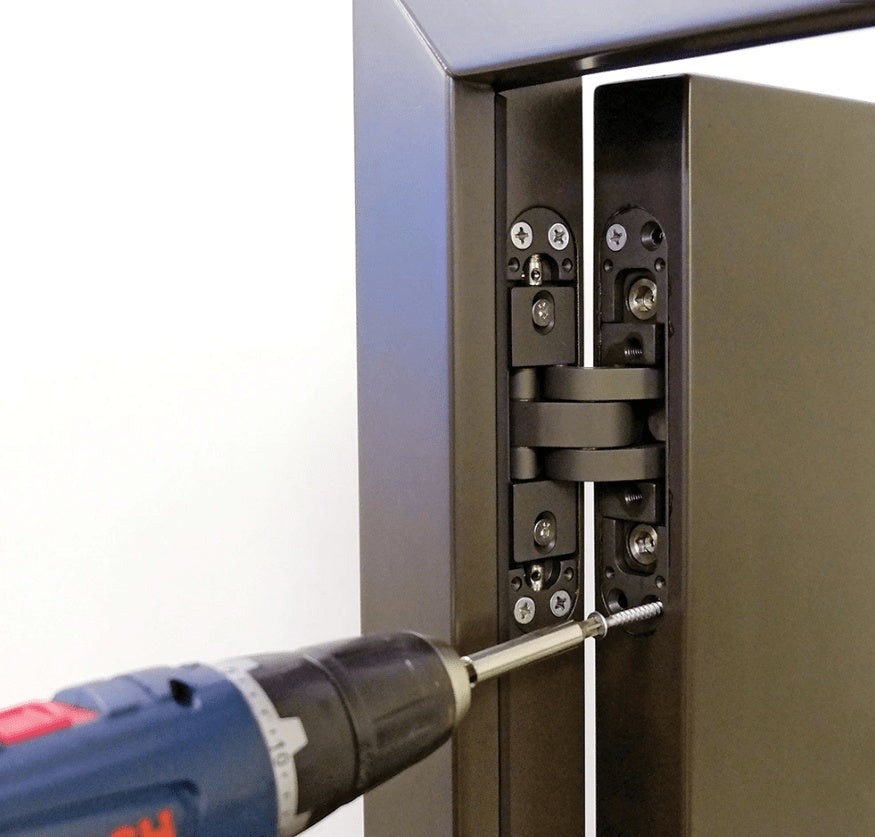

SureClose ConcealFit Adjustable Self-Closing Gate Kit - Up to 220 lb - For Gate Gap (5/64" – 1/4”) - Plain Hinge Available - Great for Pool Gates

Model

In stock, ready to ship

  • ✓ Qualifies for free shipping!
  • ✓ Easy 45 day returns
  • ✓ Typically ships in 1-2 business days

Features:

  • SureClose ConcealFit Adjustable Self-Closing Gate Kit
    • Includes Hinge & Closer-Hinge

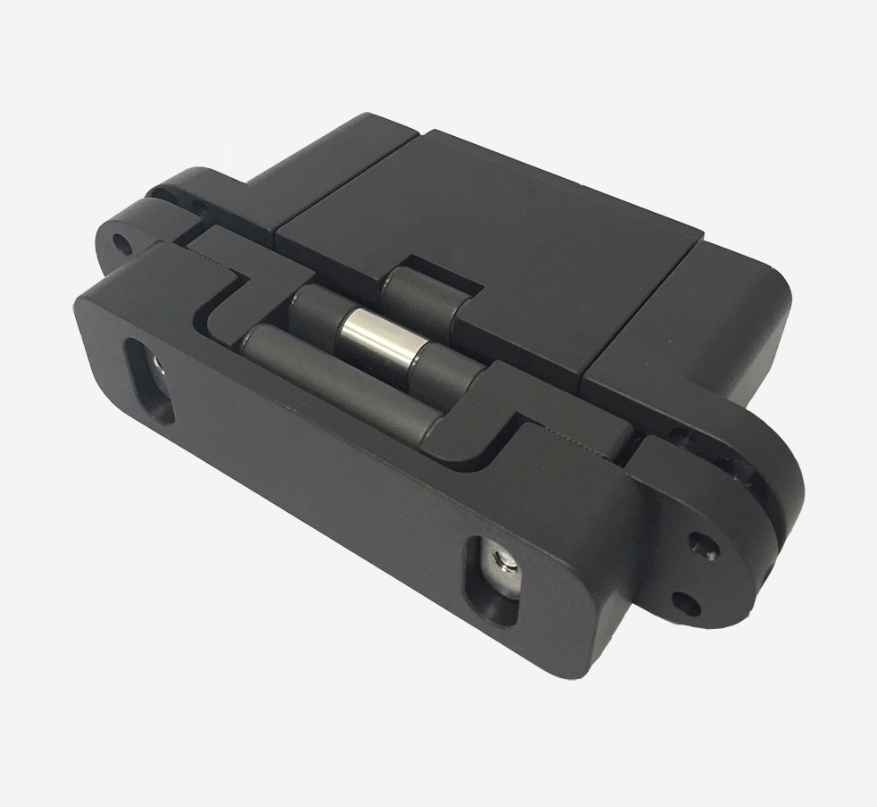

  • Plain Door Hinge available without kit
  • Hydraulic Gate Closer/Hinge System
  • Features ‘Final Snap-Close Action’, which increases speed at the end of closing to ensure latching and to overcome electric or coded locks
  • Clean openings for an elegant, distinctive, and timeless look
  • Concealed mechanisms provide unparalleled security
  • Closer & hinge solution for bullet-resistant doors and safe room doors
  • Adjustable closing speed, latching speed and backcheck
  • 4 positional adjustments: lateral, vertical, depth and inclination to
    ensure perfect installation
  • 'Closing Speed', 'Final Snap-Close' and ‘Backcheck' are adjustable using a simple Allen key
  • Independently tested to over 500,000 open/close cycles
  • 20-minute UL10C and cUL10C fire rating
  • Suitable for ADA use
  • Can be used on both left and right-handed swinging doors
  • Suitable for internal and external use
  • Aluminum and steel gates require a weld box
  • CAUTION: A GATE-STOP is required to prevent a gate opening beyond 125º (see fitting instructions). Forcing a gate beyond a 125º opening may damage closer and void Warranty.
  • Important: Order 2 hinges per gate
  • Installation Guide

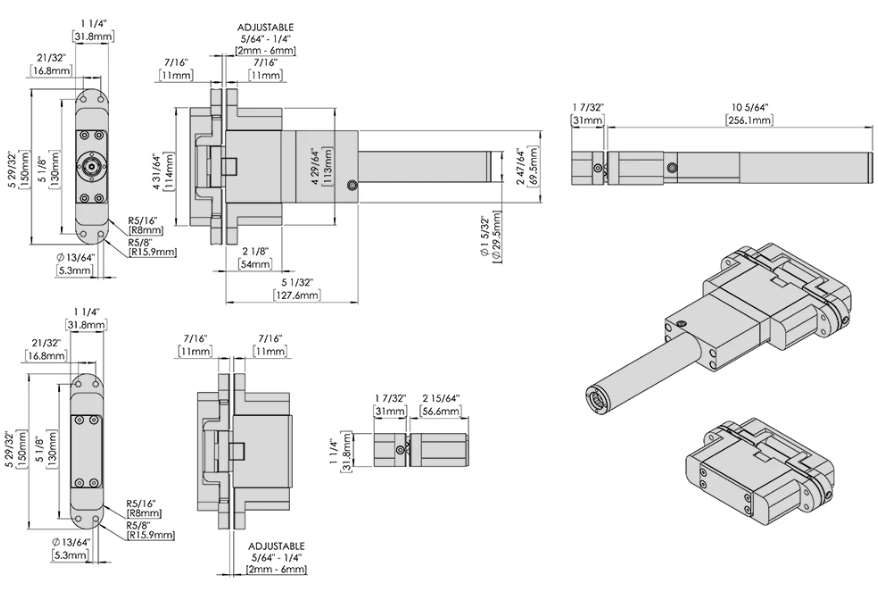

Specifications:

  • Finish: Black Anodized
  • Gate Type: Self-closing
  • Gate Material: Interior/Exterior: Aluminum, Steel, Wood (Hardwood)
  • Self-Closing Gate Weight: Up to 220lb (100kg)
  • Approximate Gate Size: 4ft W x 6ft H (1.2m x 1.8m)
  • Minimum Post Size: 2"+ (50mm)
  • Ideal Gate Gap: Adjustable from 5⁄64” (2mm) – ¼” (6mm)
  • Fixing Method: Screw-on
  • Opens to and self-closes from 125˚
