Concealed Cabinet Hinges - Model 204SS Stainless Steel


$ 144.76
SKU: 204SSUS32

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

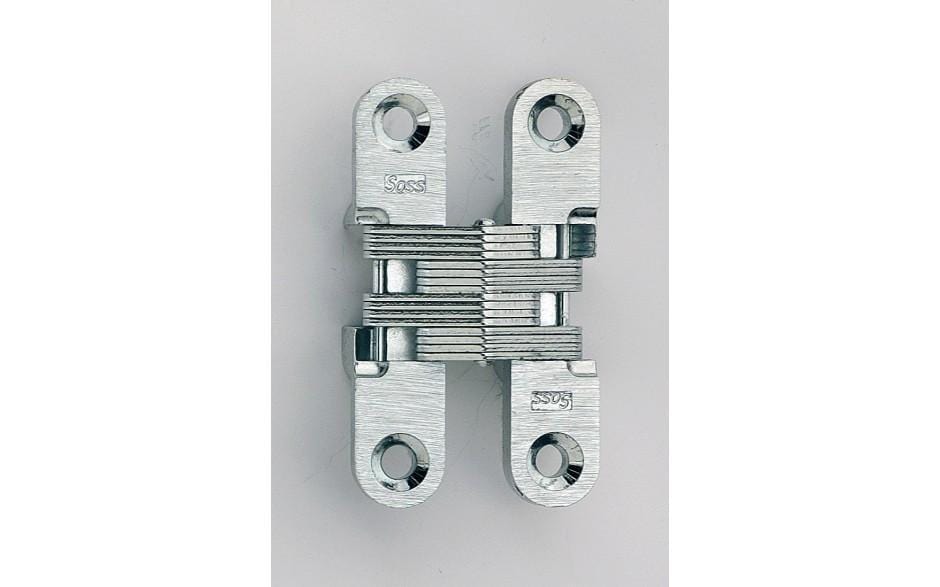

Our High Quality SOSS® Concealed Cabinet Hinge model #204 is for use in wood or metal applications. Made of complete 316 Stainless Steel. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!
Sold as Pair (2 Individual Hinges)      Click to see Official Soss Hinges Video
How to install Concealed Hinges

Available Finishes

Satin 316 Stainless Steel
Satin Stainless Steel
Bright 316 Stainless Steel
Bright Stainless Steel


Additional Information

Application Cabinet, Exterior, Metal, Wood
Min. Material Thickness 3/4"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood
Packaging No
Packages Per Container No
Price Per No

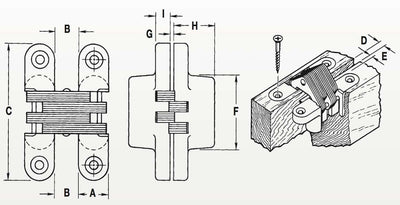

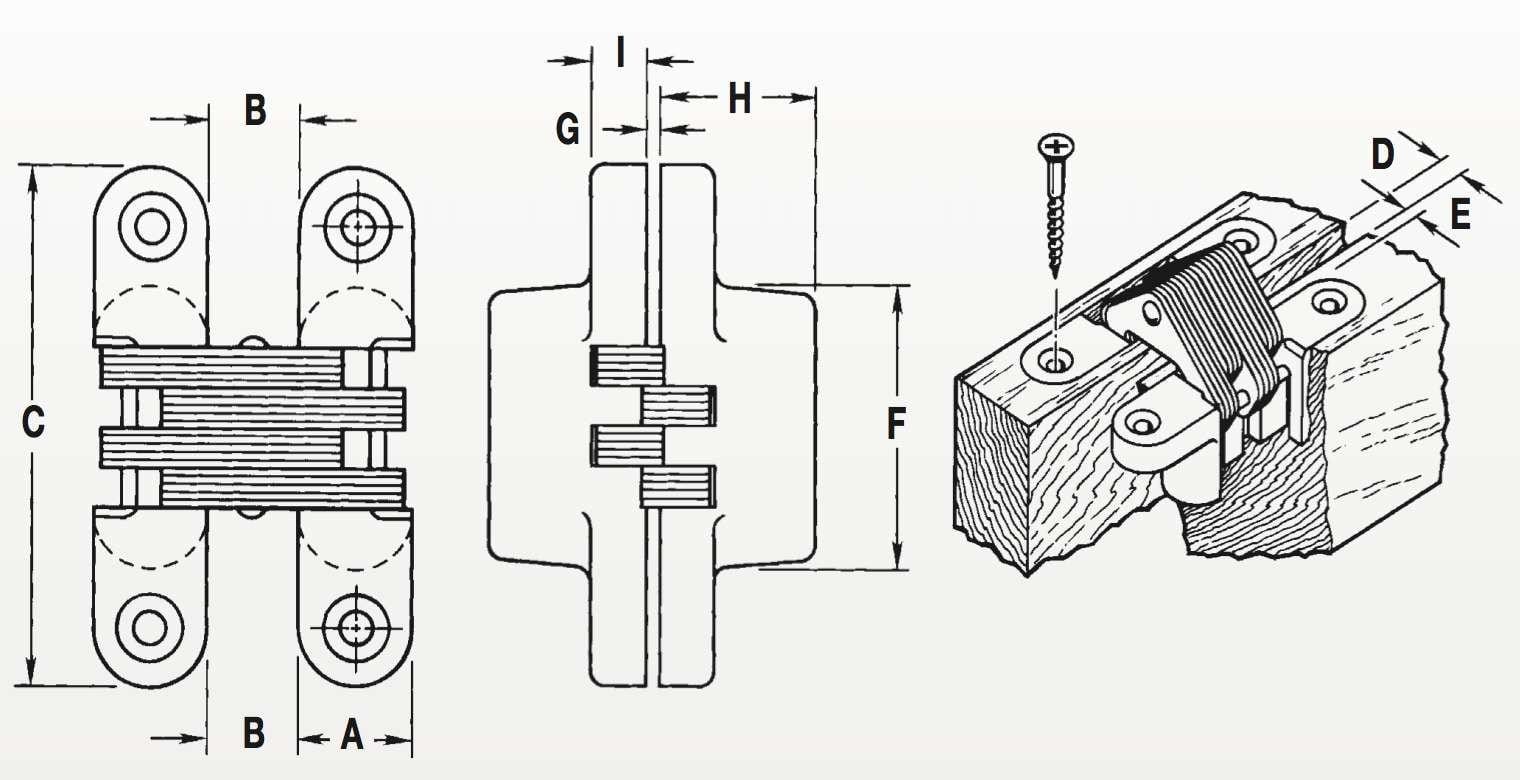

A 1/2" (12.70mm)
B 23/64" (9.13mm)
C 2-3/8" (60.33mm)
D 7/64" (2.78mm)
E 1/8" (3.18mm)
F 1-1/4" (31.75mm)
G 1/32" (0.79mm)
H 23/32" (18.26mm)
I 1/4" (6.35mm)
Min. Matl. Thickness 3/4" (19.05mm)
Wood Screw Sizes #7x1-1/4" (3.9x32mm)
Soft Wood Pilot Hole No. 51
Hard Wood Pilot Hole No. 39
Machine Screw Sizes #8-32x5/8"
Hinge Weight .20 lb.
