Concealed Door Hinges - 1-3/8 Inch X 5-1/2 Inch - For Min Thick Door 2 Inch - Multiple Finishes Available - Sold Individually
Family Owned
Excellent Customer Service
Qualifies for free shipping!
Easy 45 day returns
Typically ships in 1-2 business days
Choose options
Details
SOSS® Invisible Hinge model #220 is for use in wood or metal applications. This full size door style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.
Sold as Each(1 Individual Hinge) Click to see Official Soss Hinges Video
How to install Concealed Hinges

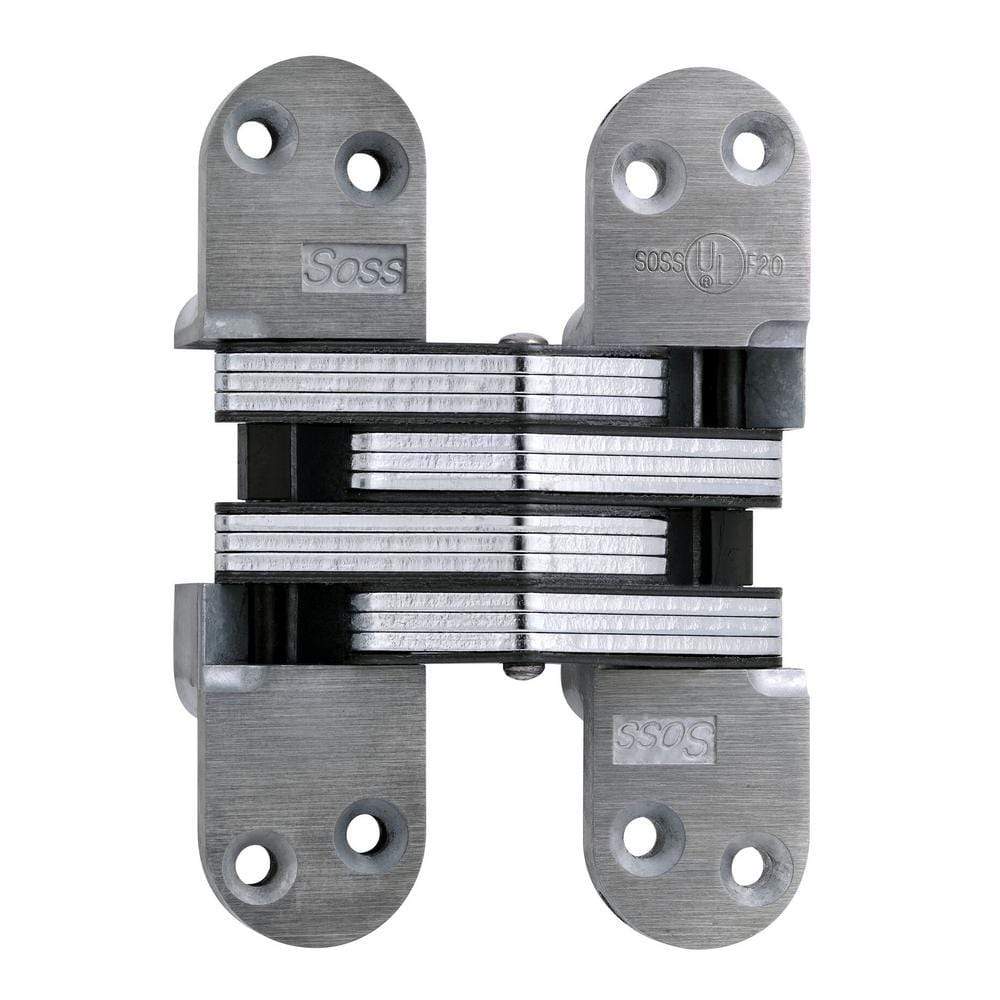

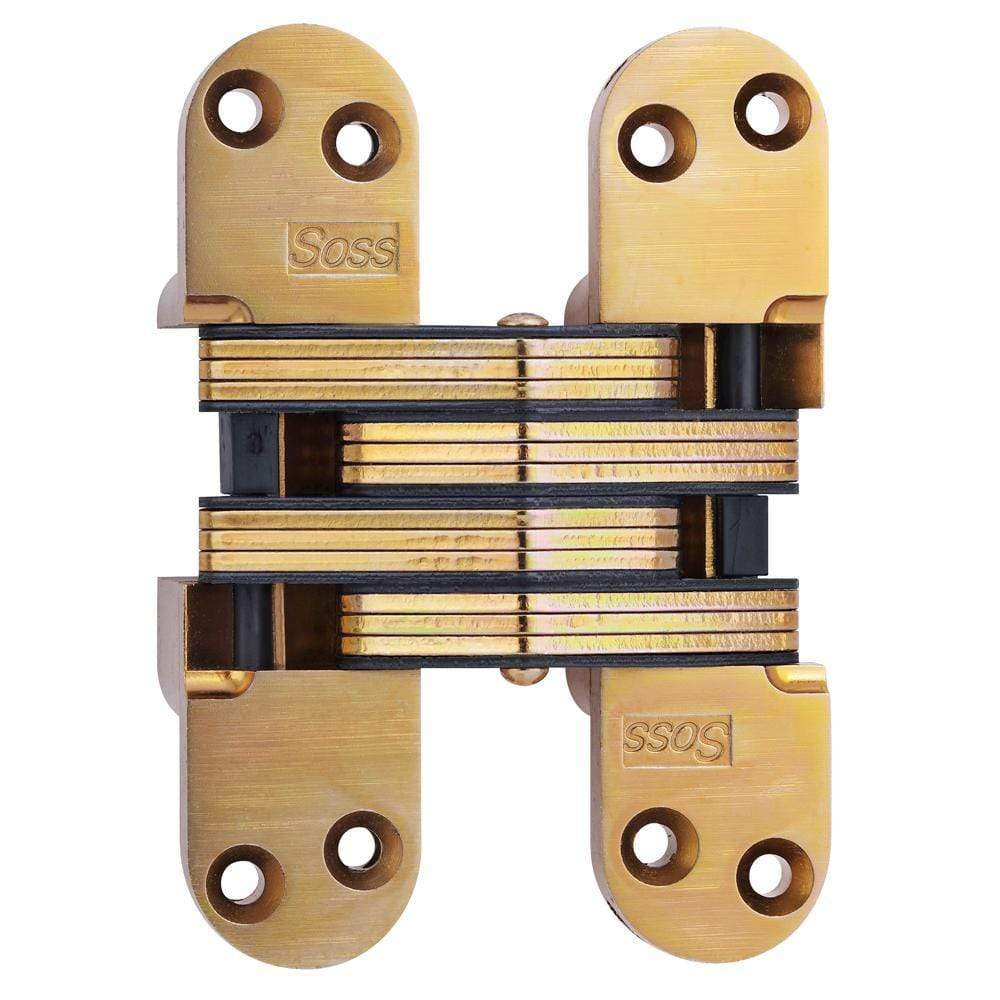

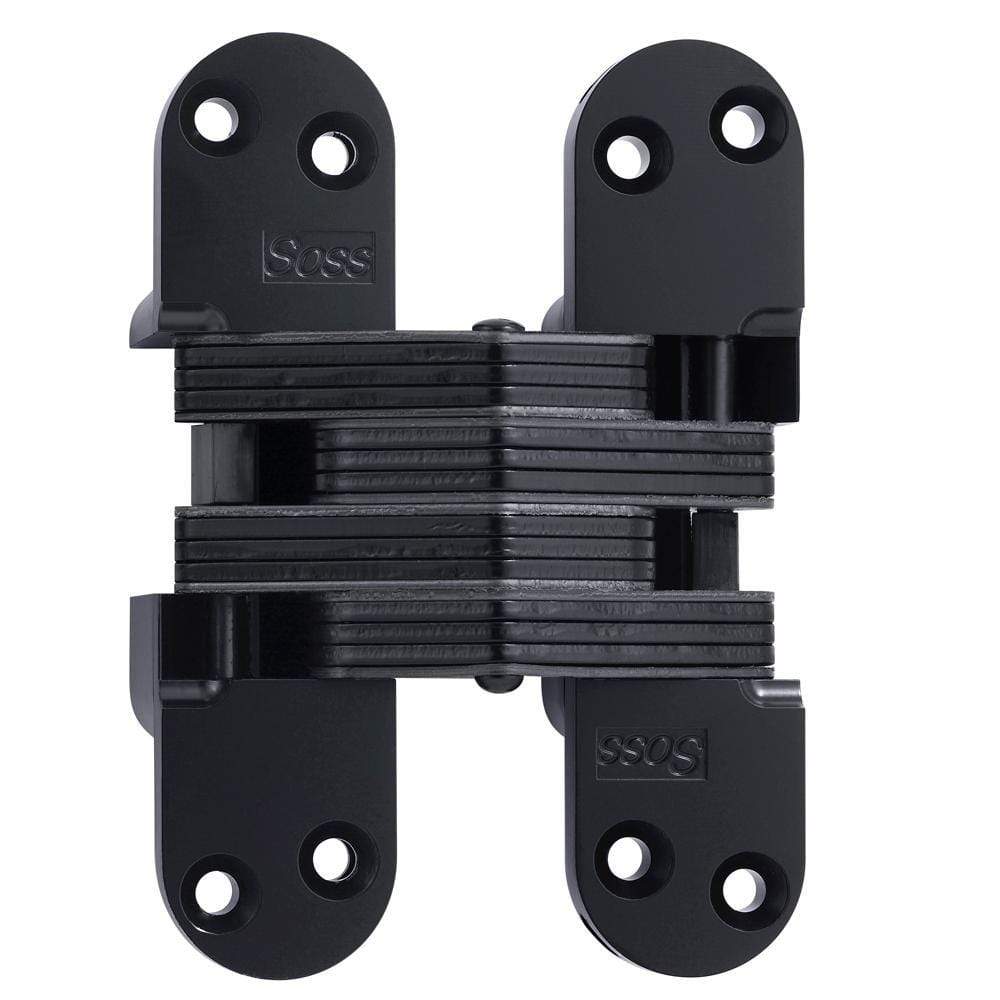

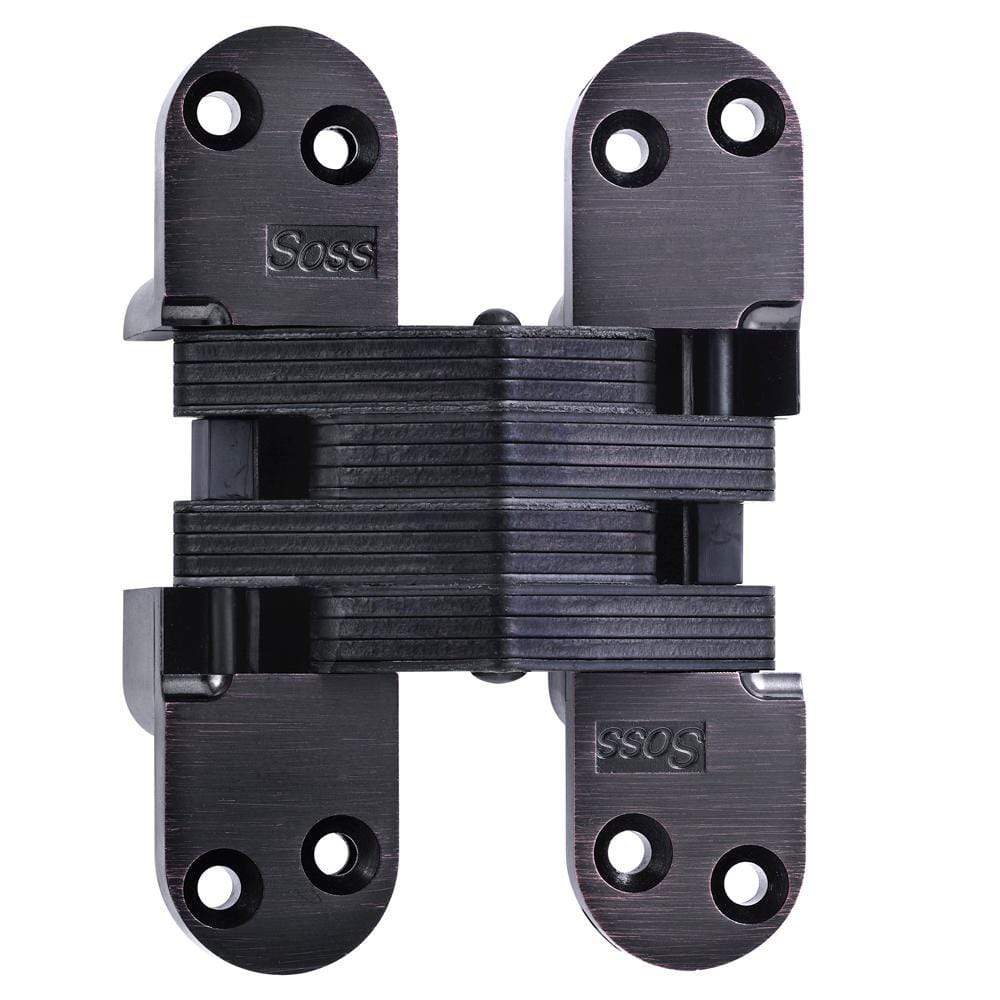

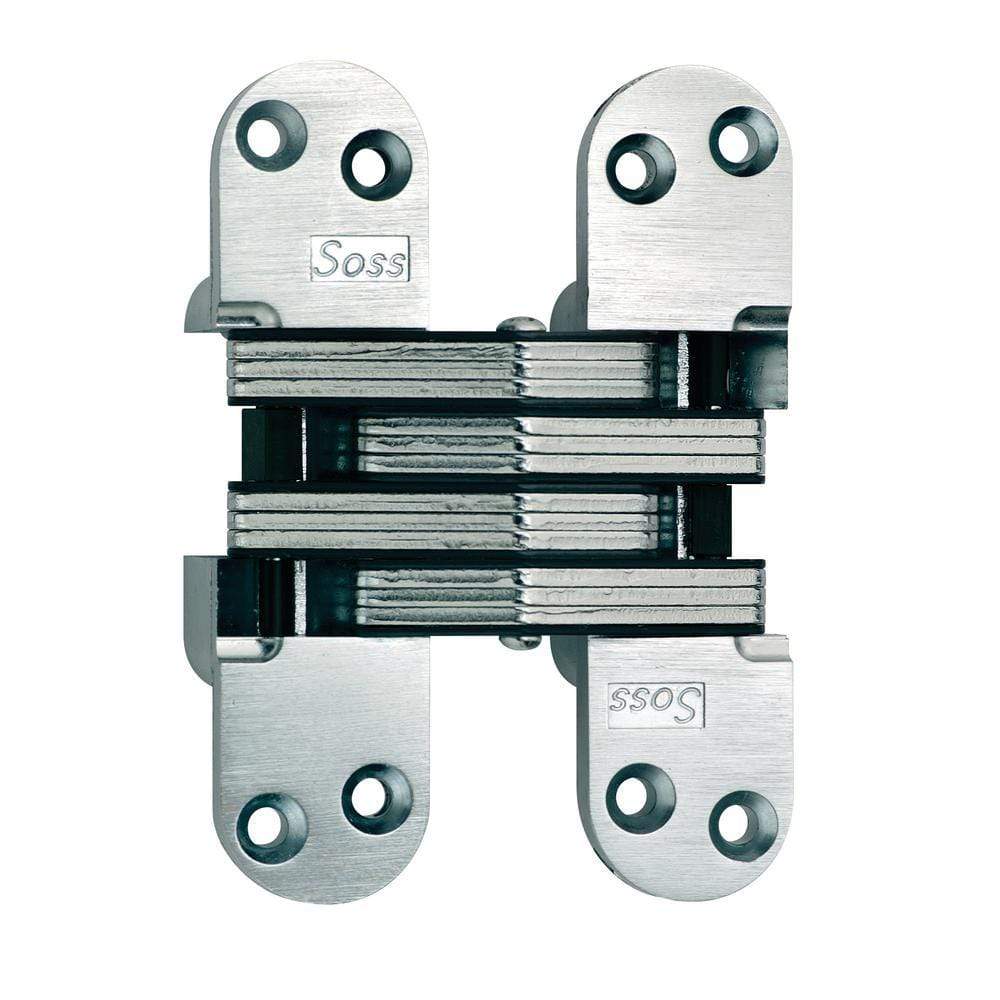

Available Finishes: Black, Oil Rubbed Bronze, Satin Brass, Satin Chrome, Unplated
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 2" |
| Fire Rating | No |
| Power Transfer | No |
| Spring Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood |

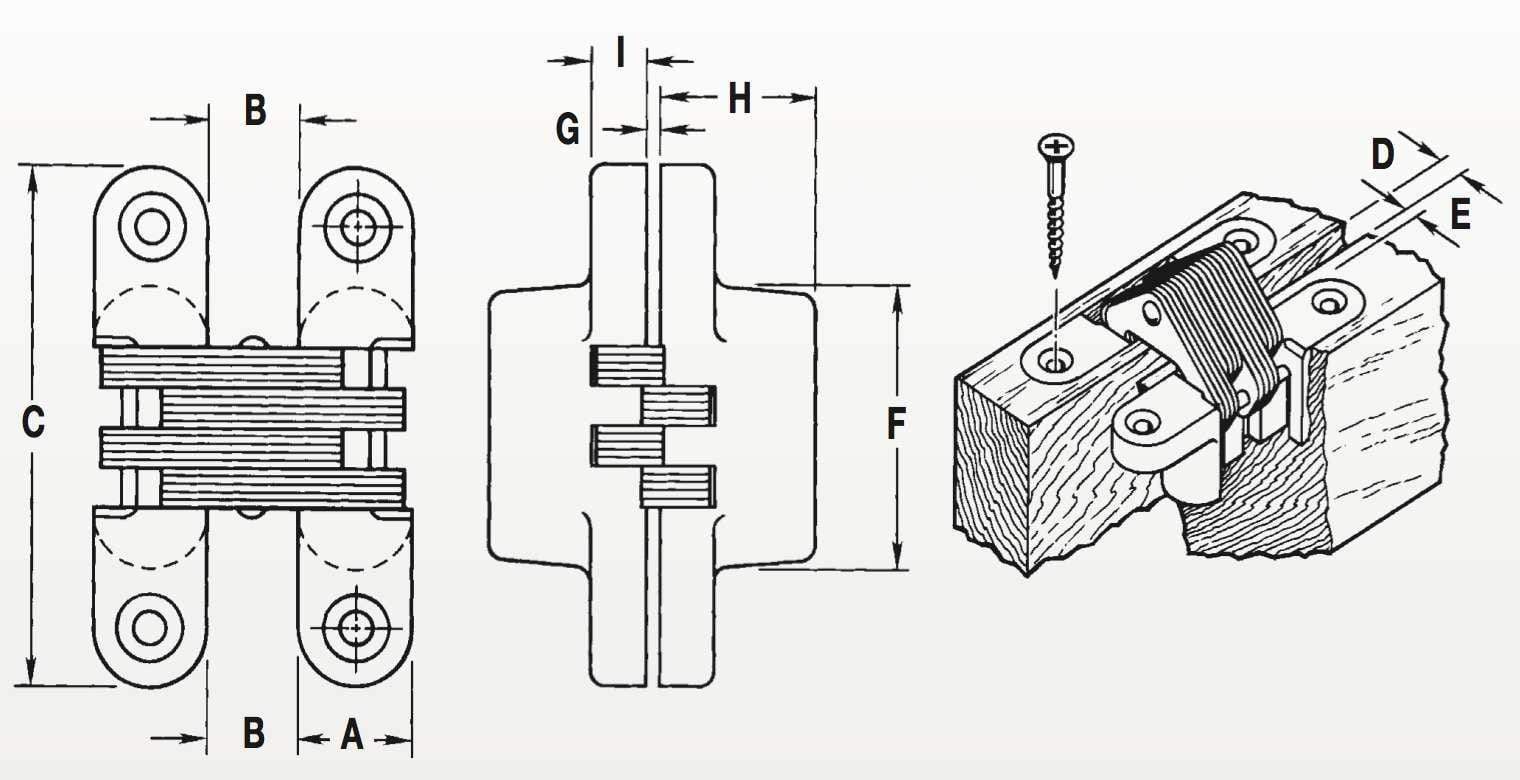

Dimensions
| A | 1-3/8" (34.93mm) |
| B | 1-1/16" (26.99mm) |
| C | 5-1/2" (139.70mm) |
| D | 1/2" (12.70mm) |
| E | 9/32" (7.15mm) |
| F | 2-15/16" (74.62mm) |
| G | 1/16" (1.59mm) |
| H | 1-63/64" (50.40mm) |
| I | 15/32" (11.91mm) |
| Min. Matl. Thickness | 2" (50.80mm) |
| Wood Screw Sizes | #12x1-1/2" (5.5x38mm) |
| Soft Wood Pilot Hole | No. 38 |
| Hard Wood Pilot Hole | No. 25 |
| Machine Screw Sizes | #12-24x1" |
| Hinge Weight | 3.15 lb. |
