Concealed cabinet hinges for metal doors, 19/32 inch x 2-3/8 inch, available in multiple finishes, 2 pack.
Concealed cabinet hinges for metal doors, 19/32 inch x 2-3/8 inch, available in multiple finishes, 2 pack.
Concealed cabinet hinges for metal doors, 19/32 inch x 2-3/8 inch, available in multiple finishes, 2 pack.
SKU: 106US26D

Concealed Cabinet Hinges - Concealed Surface Mount - For Metal Doors - 19/32 Inch X 2-3/8 Inch - Multiple Finishes Available - 2 Pack

Sale price$58.05
Finish:Satin Chrome
In Stock, Ships Next Business Day.
Quantity
Family OwnedFamily Owned
Excellent Customer ServiceExcellent Customer Service
Easy 45 day returnsEasy 45 day returns
Typically ships in 1-2 business daysTypically ships in 1-2 business days

Details

Our High Quality SOSS® Concealed surface mounted Hinge model #106 is for use in metal applications. It provides high-end appearance and durability. The hinge mounts on the back of the door making it visible from the back, but requires no mortise.  For door thickness up to 5/64".

Sold as 2 Pack      Click to see Official Soss Hinges Video

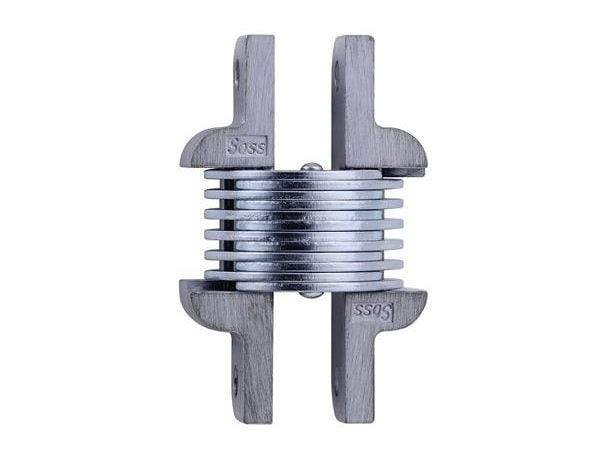

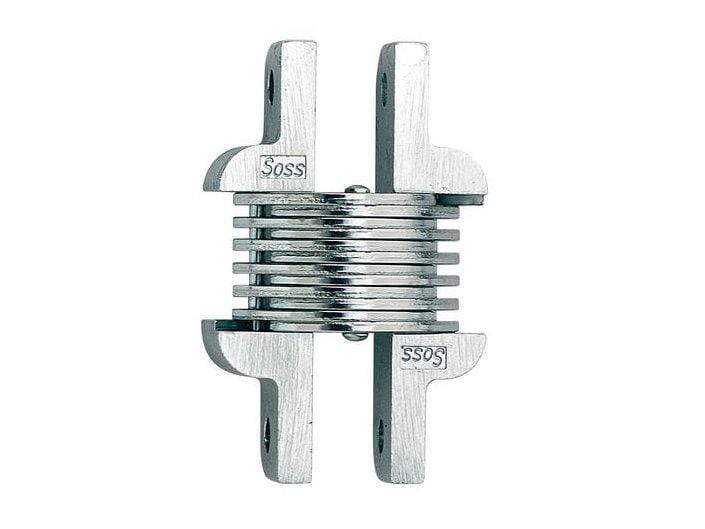

Available Finishes: Satin Chrome, Unplated

Additional Information

Application Cabinet, Metal
Min. Material Thickness No
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included None

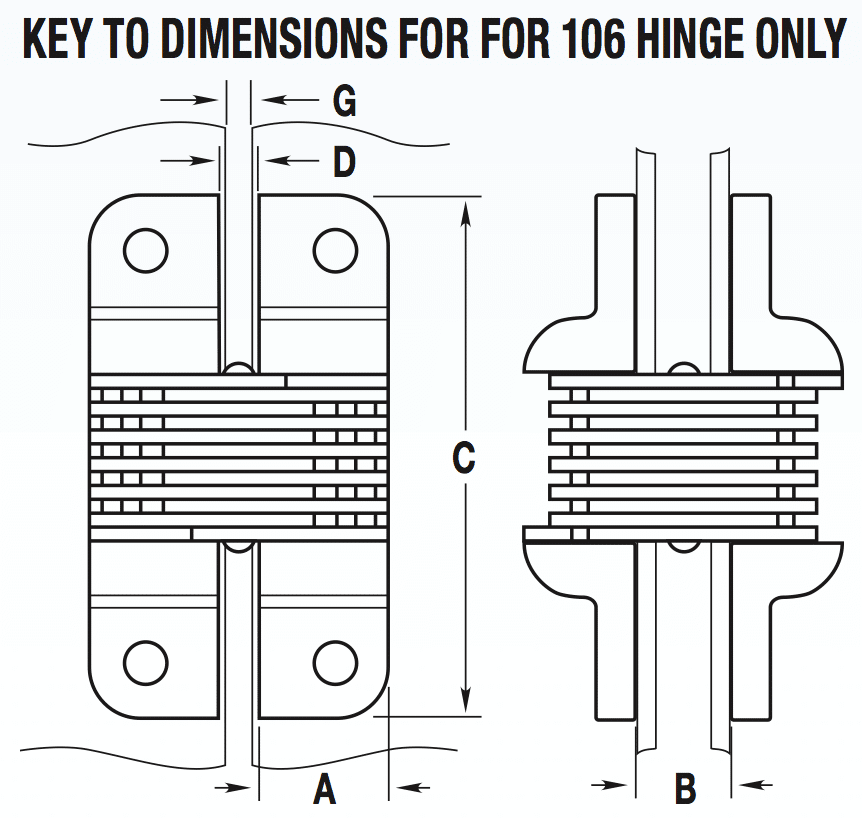

Dimensions

A 19/32"(15.08mm)
B

7/16"(11.11mm)

C 2-3/8"(60.33mm)
D 13/64"(5.16mm)
E N/A
F N/A
G 19/32" (15.08mm)
H N/A
Hinge Weight .18 lb.
