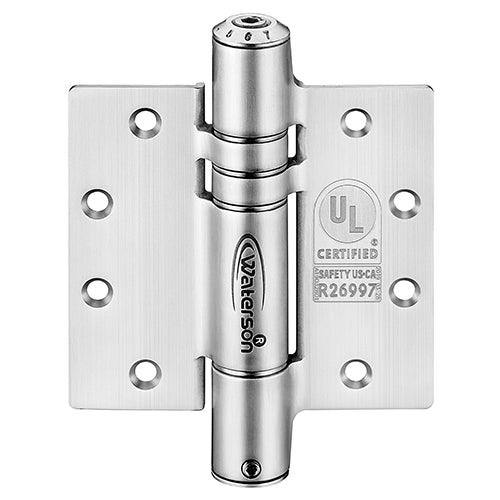

Mechanical Adjustable Self Closing Hinge - 5” x 5” - Fire-rated Stainless Steel - Full Mortise - For 1-3/4" - 2-1/2" Thick Doors up to 260 lbs. - 3 Pack

These Heavy Duty Self-Closing Spring Hinges / Door Closers offer superior speed control, adjustable power, and tension settings. They measure 5" x 5", have a weight capacity of 260 lbs., are full mortise, and are made of Stainless Steel. They are available in Stainless Steel and Flat Black finish.

Product Specifications:

• Heavy Duty Self-Closing Spring Hinges /  Door Closers
• Size: 5" x 5"
• Full Mortise
• Material: Stainless Steel
• Door Thickness: 1-3/4"- 2-1/2"
• Door Weight: Up to 260 lbs.
• Approximate Door Size: 4' x 7'

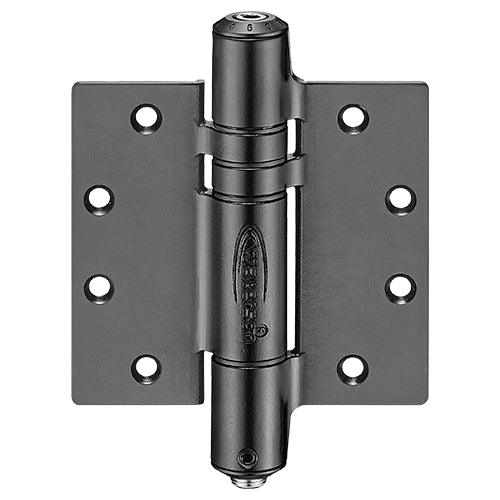

• Finishes: Satin Stainless Steel and Flat Black

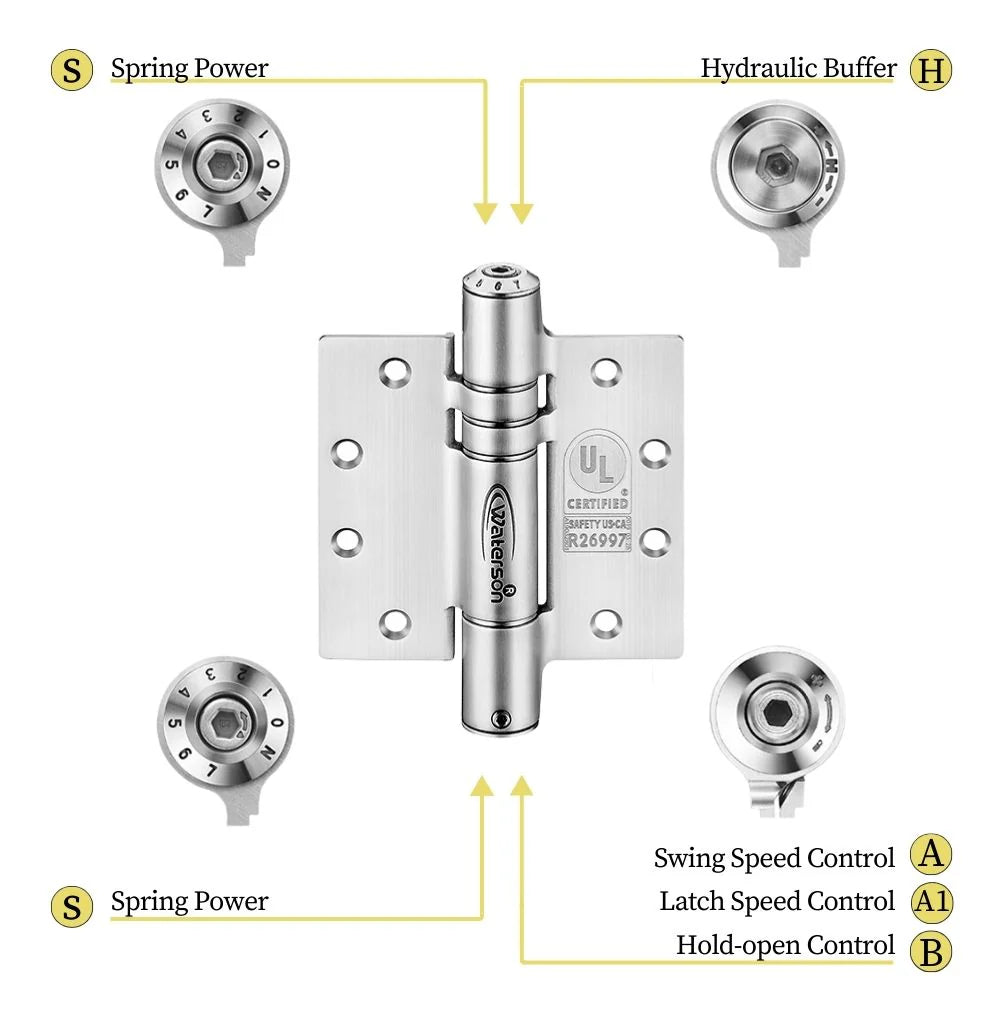

• Fully adjustable closing force and speed according to environment needs

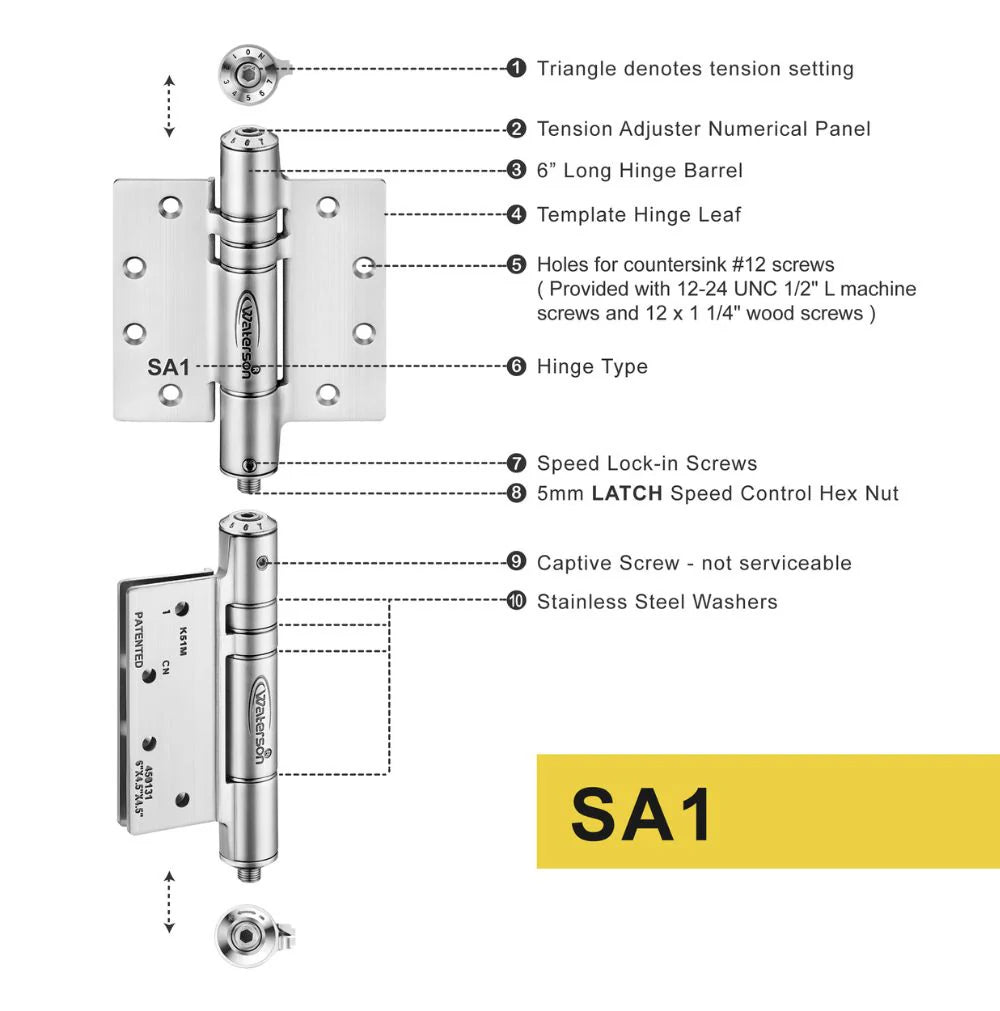

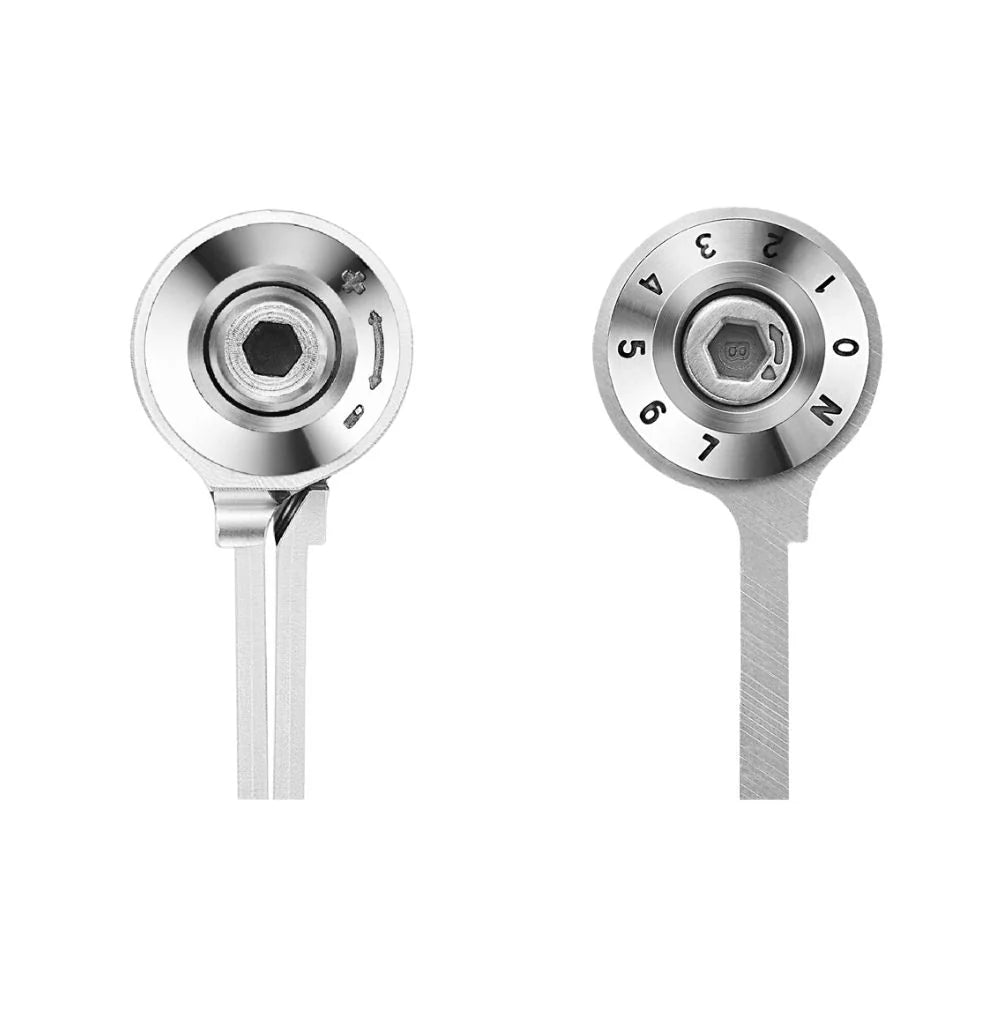

• Numerical adjustment panel on hinge end to set up precise tension
• Mechanical only mechanism supporting heavy duty and fully exterior
• Aesthetically pleasing compared to door closers -- without extrusive arms
• UL certified cycle testing ensures many years of low maintenance.
• Can be used for the following applications
  • Hotel Rooms

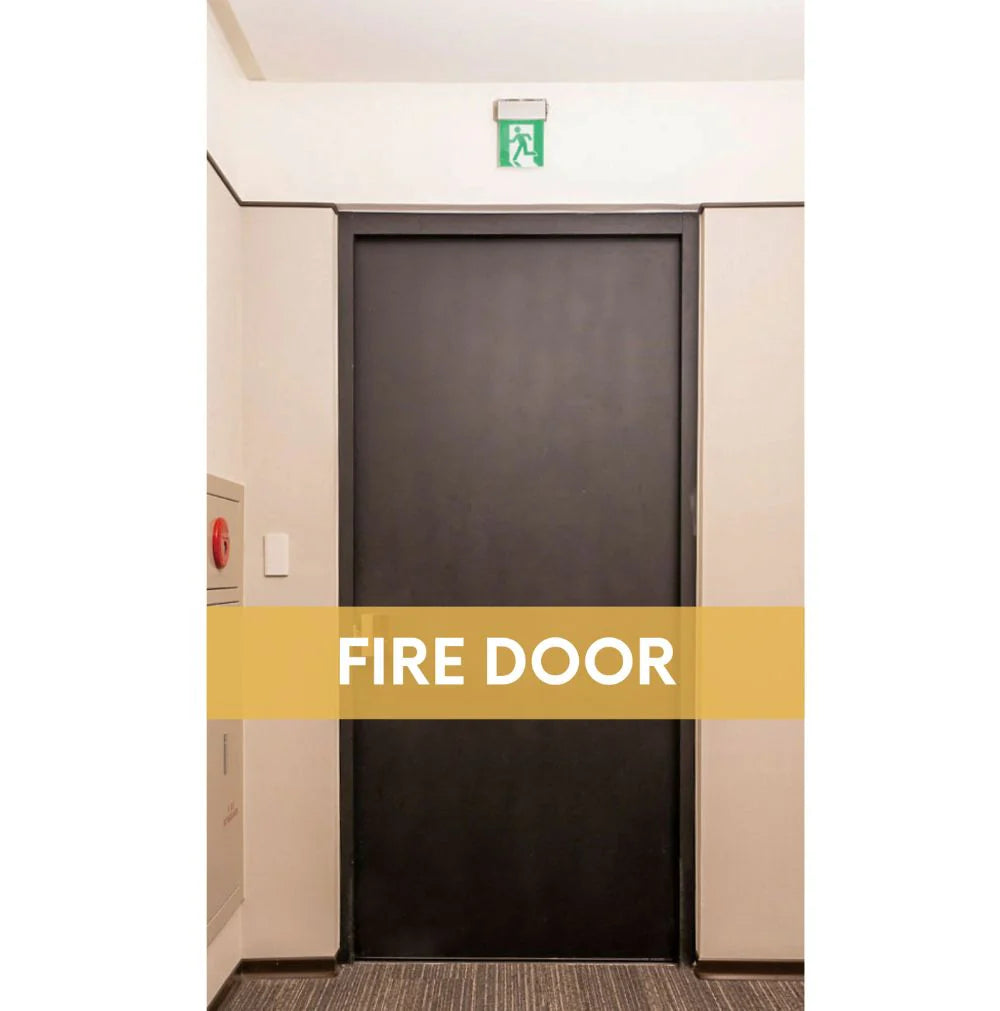

  • 3Hr Fire-rated
  • Fully Exterior
  • Arch Top
  • Heavy Duty
  • Courtyard Style
• 3 Pack - 3 Hinges Per Door

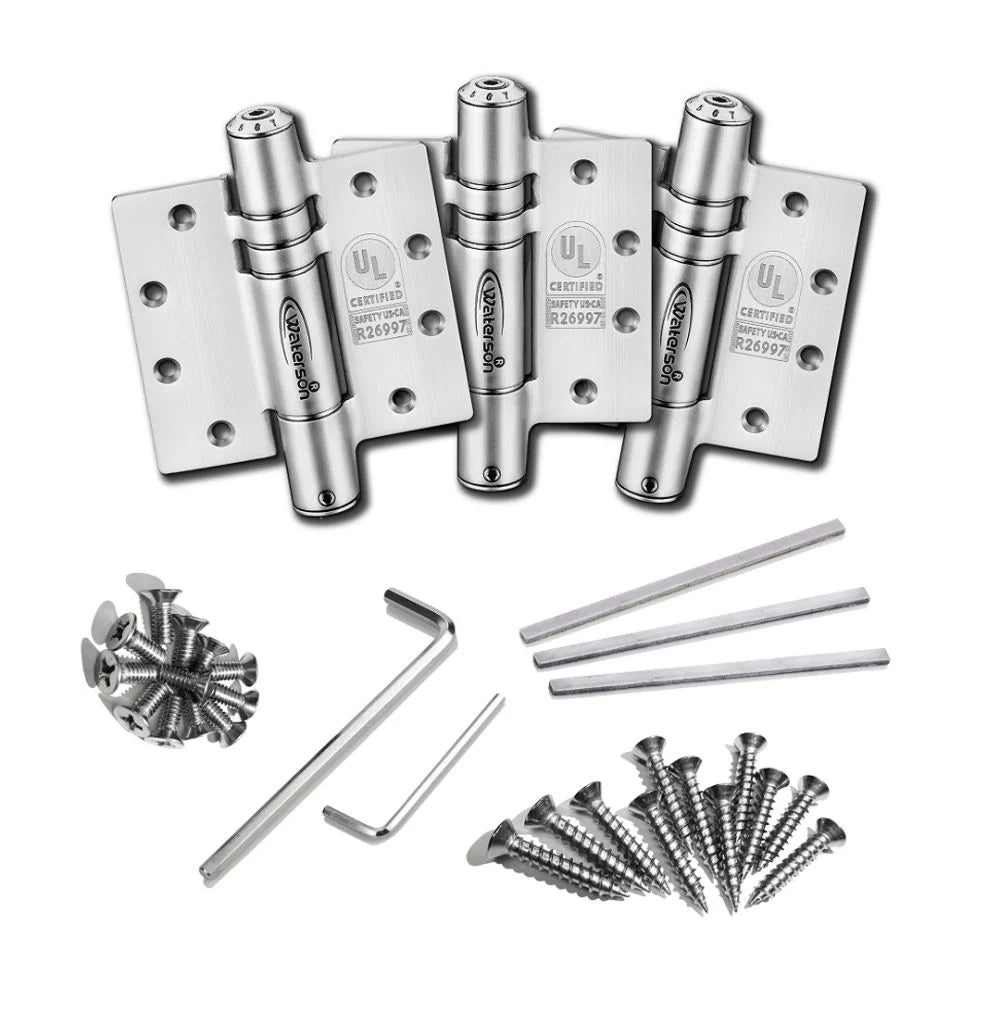

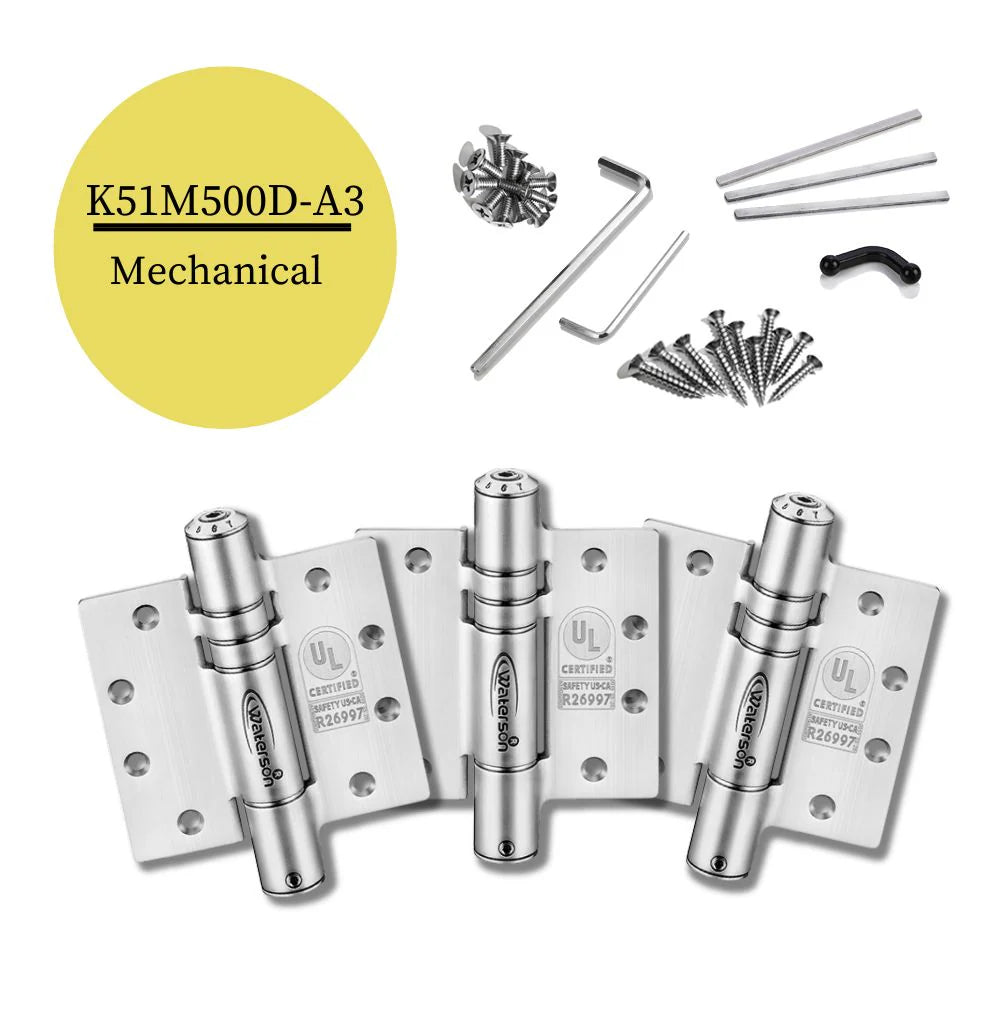

Installation Kits

• Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
• Three steel adhesive shims for gap adjustment between door and frame as needed
• Tension Crook: Keeps hinge open during installation
• 5mm & 3mm hex allen wrenches

Compliance Standards

• ANSI A156.17 Grade 1 : one million cycle testing

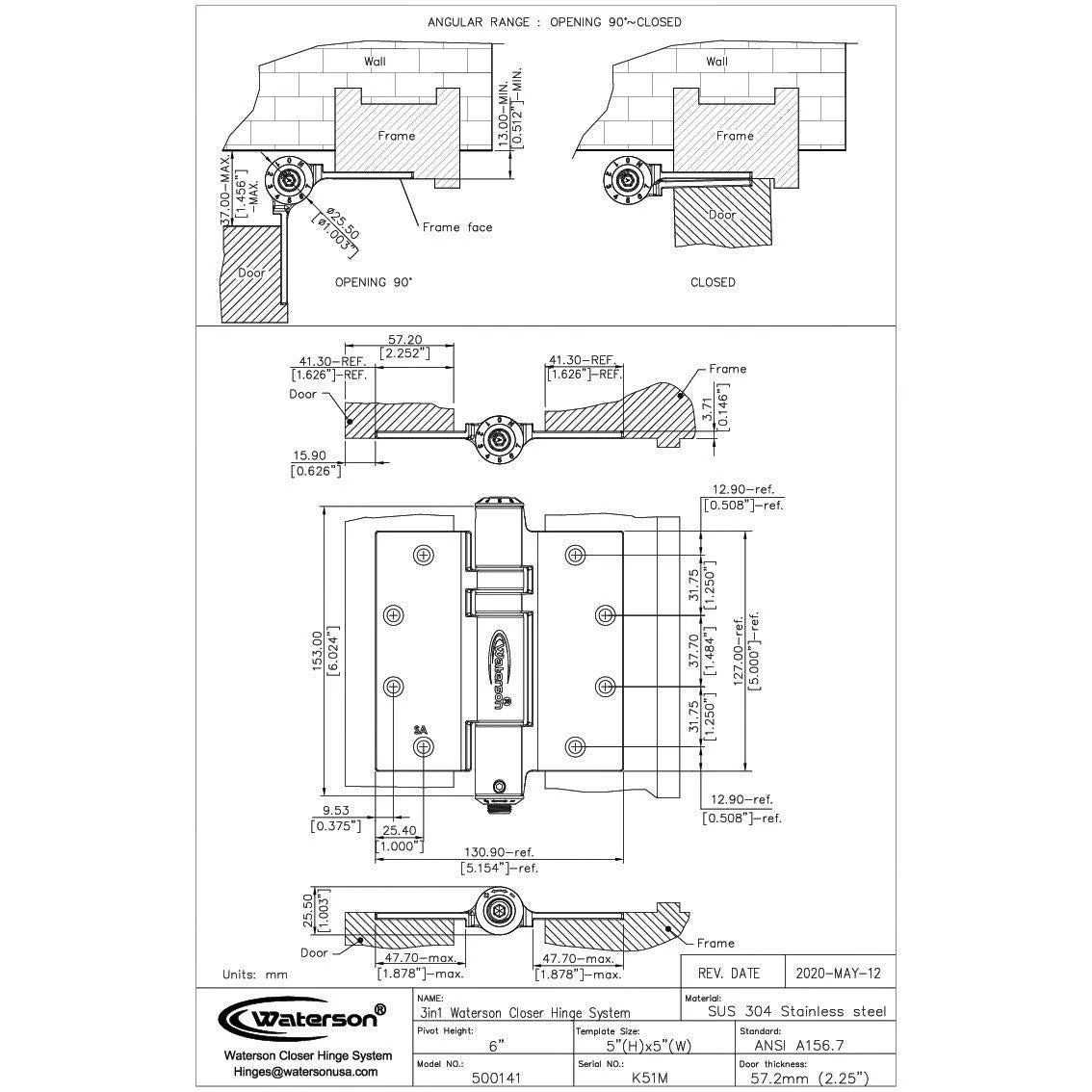

• ANSI A156.7 Template Hinge : 5” x 5”
• CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
• ADA Force : opening force no more than 5 lbs
• ADA Closing Speed: at least 5 sec to move from m 90° to 12°
• ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
