LockMate PLUS - Self-Clamping, Professional, Lock, and Knob Installation Jig - Sold as Set

Maximize the speed and ease of door lock and knob installation projects with the LockMatePLUS™. Perfect for large jobs where time is money, the self-clamping design sets up in seconds without the need for screws or hardware. The non-marring clamp has a wide rubber surface that sets up or removes instantly, prevents slipping and protects doors.

Product Features:

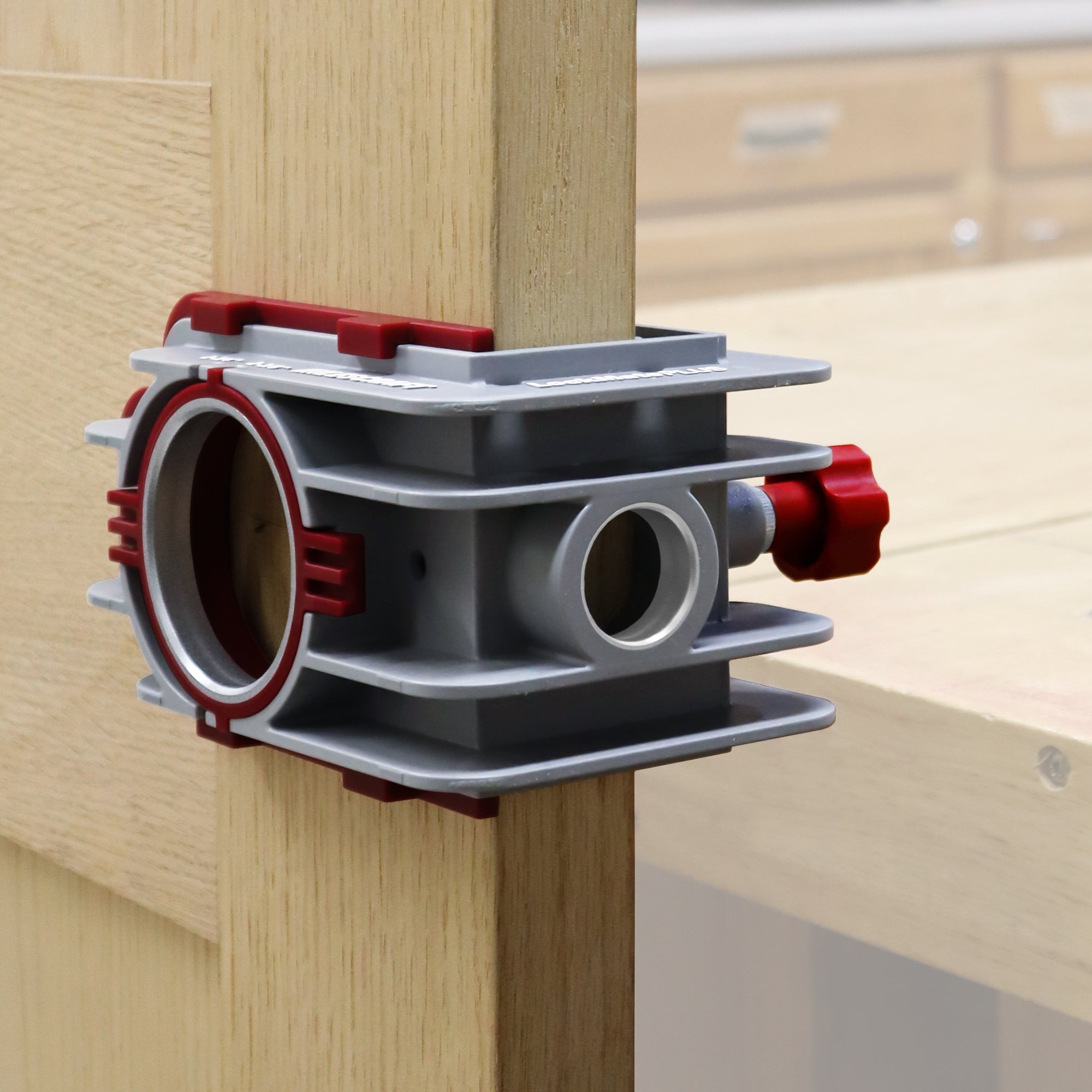

• Self-Clamping: LockMatePLUS™ clamps to door eliminating use of screws that can damage door

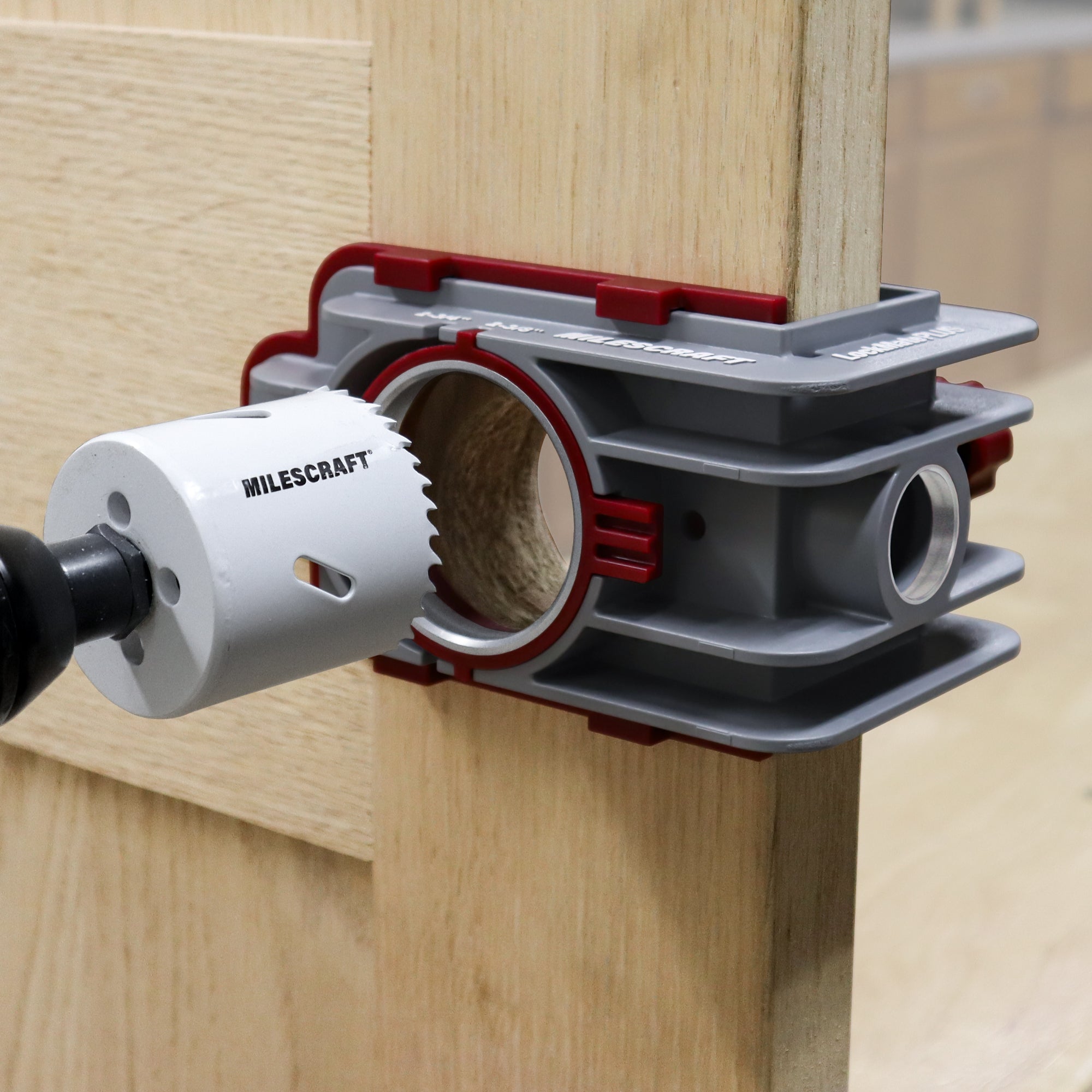

• Advanced Cutting: Includes 2-1/8” and 1” Bi-Metal Cobalt Hole saws
• Multi-Material: Cut both wood and metal solid or hollow core doors
• Fits Most Doors: Adjusts for 1-3/8” and 1-3/4” thick standard doors
• Anti-Wear Design: Stepped drill guide has built in metal bushing to prevent damage and extend life of jig
• Adjustable Lock Locations: Creates both 2-3/8” and 2-3/4” standard backsets for locks and knobs

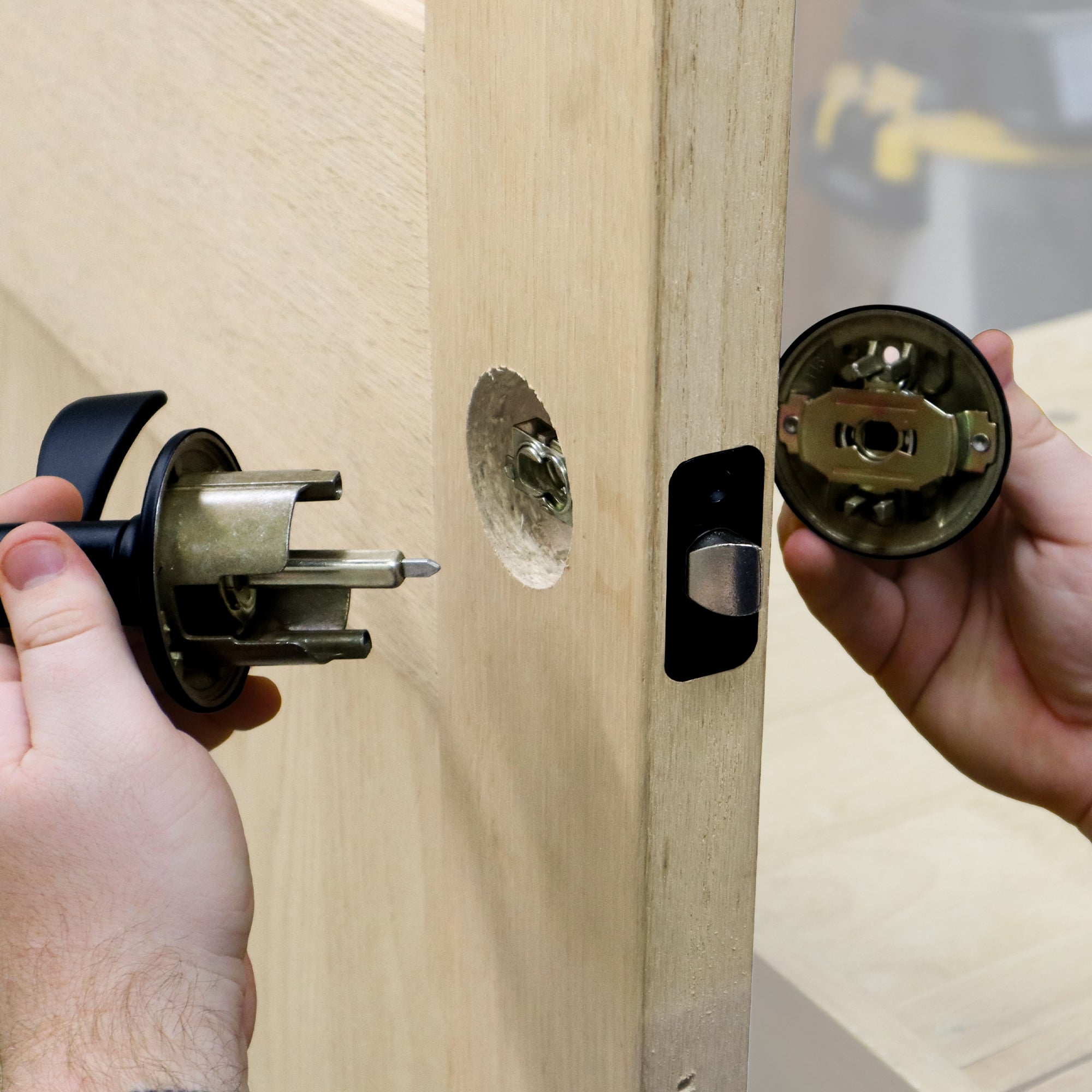

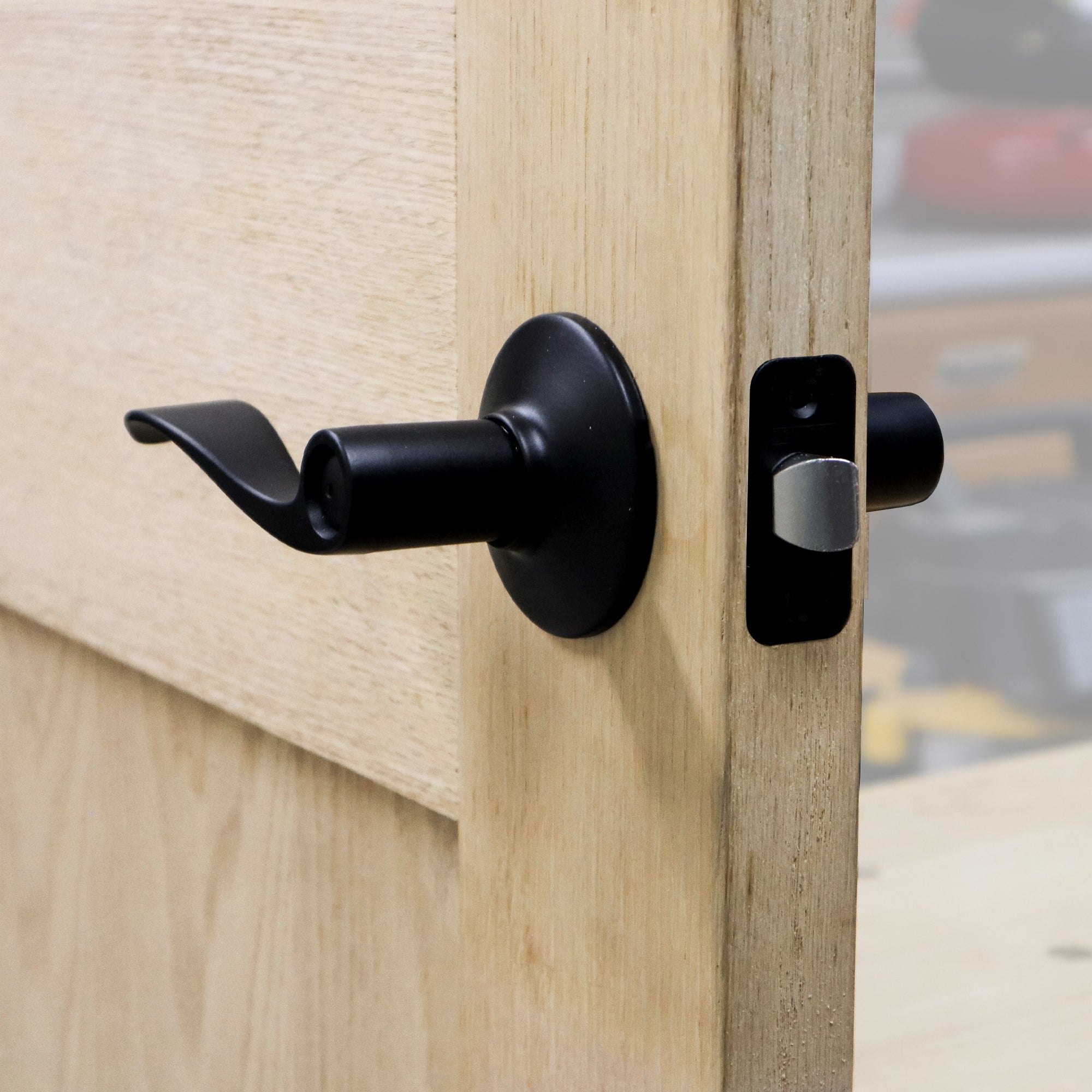

• Universal Compatibility: Creates holes compatible with most common lock, knob, and handle sizes

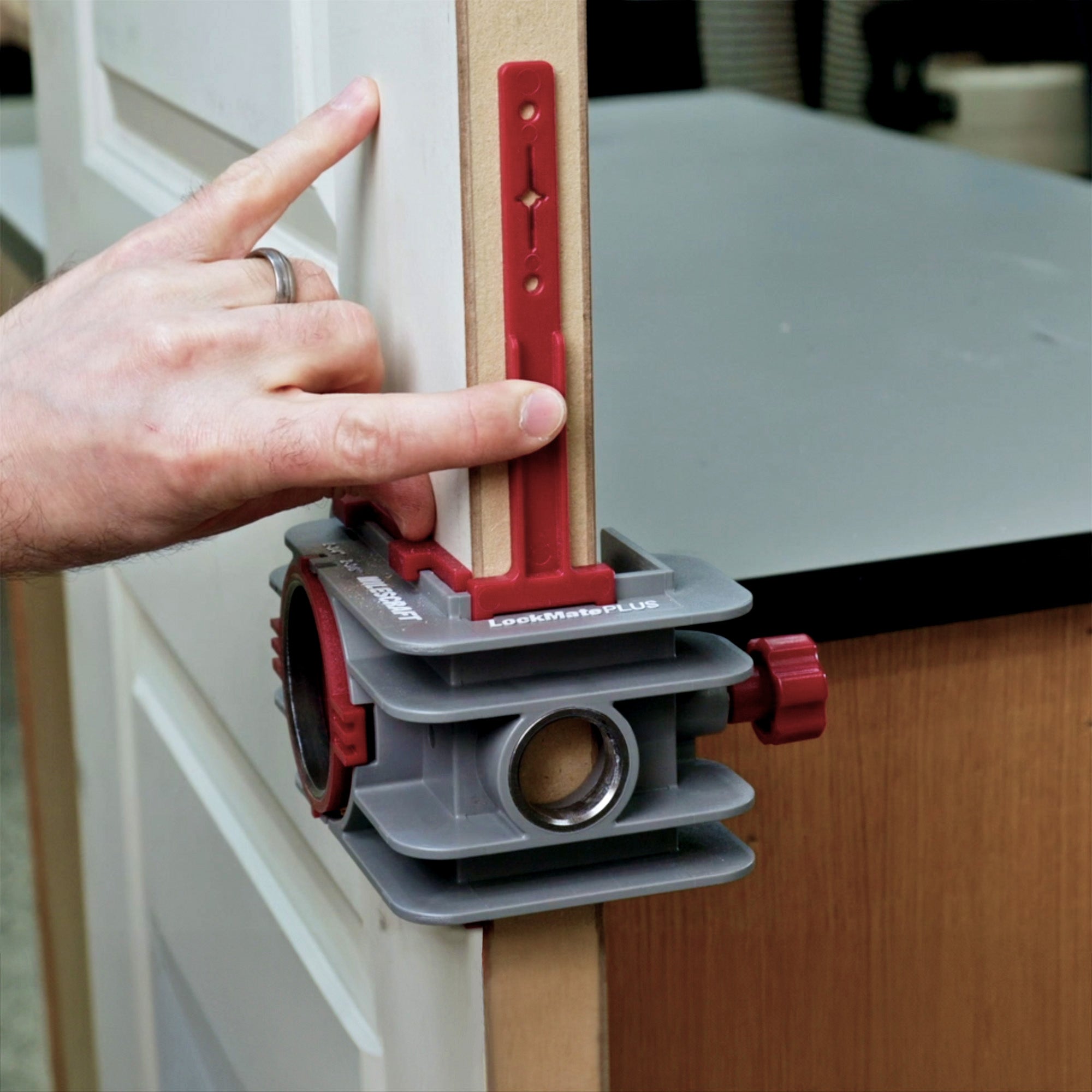

• Perfect Spacing: Included Dead Bolt Locator positions dead bolts correct distance from knobs or handles
• Reduce Tear Out: Extra-long ¼” Pilot bit exits door first, creating guide hole for completing hole from the opposite side

Product Specifications:

• Door Mounting: Self- Clamping
• Hole Saw Diameter: 2-1/8” and 1”
• Compatible Door Thickness: 1-3/8” and 1-3/4”
• Adjustable Backset Settings: 2-3/8” and 2-3/4”
• Pilot Bit with Arbor: ¼” Drill Bit
• Main Drill Guide: Metal Step-down guide bushing

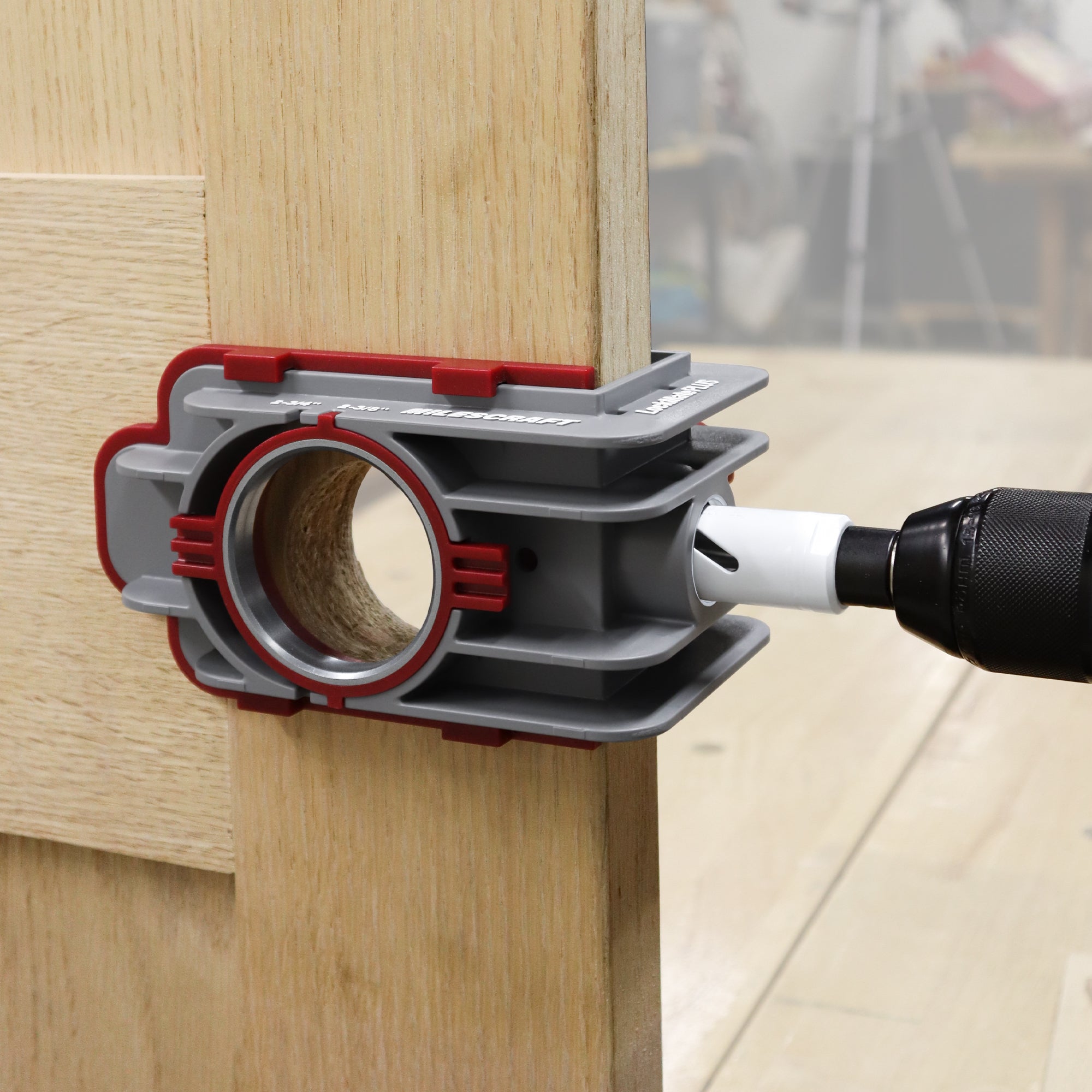

• Cross Bore Guide: Metal guide bushing

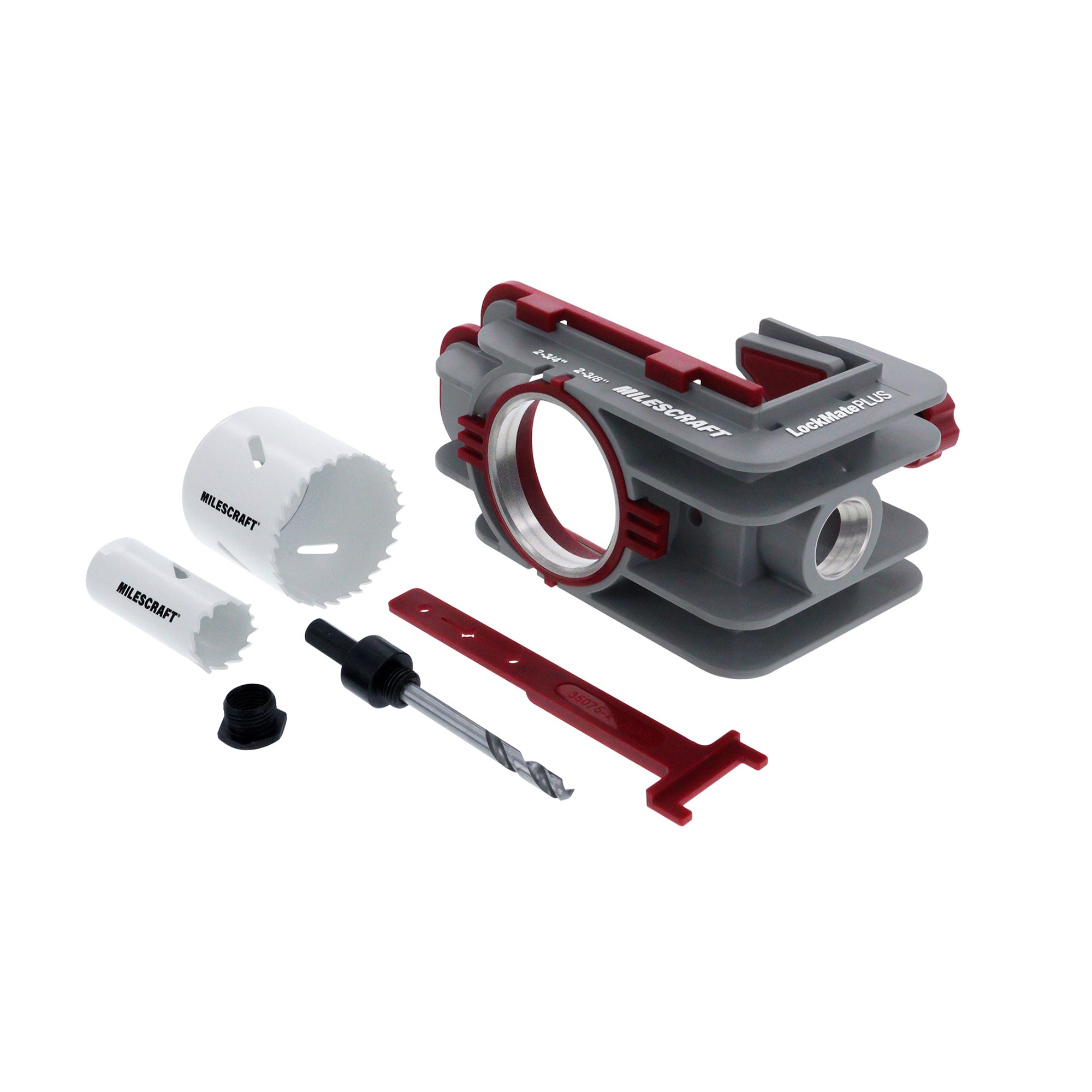

• Includes: Jig Body, 2x Bi-Metal Hole Saws, Door Thickness Spacer, Adjustable Main Drilling Guide, ¼” Pilot bit with Arbor, Hole Saw Adapter, Adapter Washer, Dead Bolt Locator
• Installation Guide
