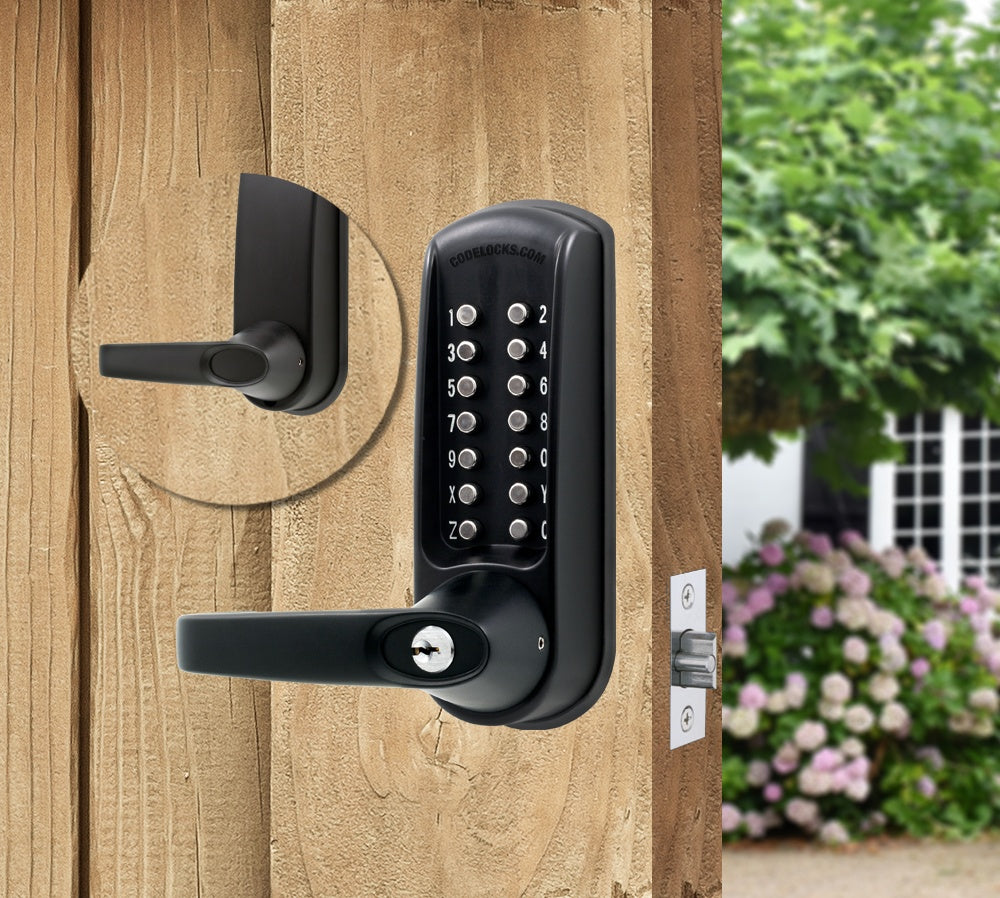

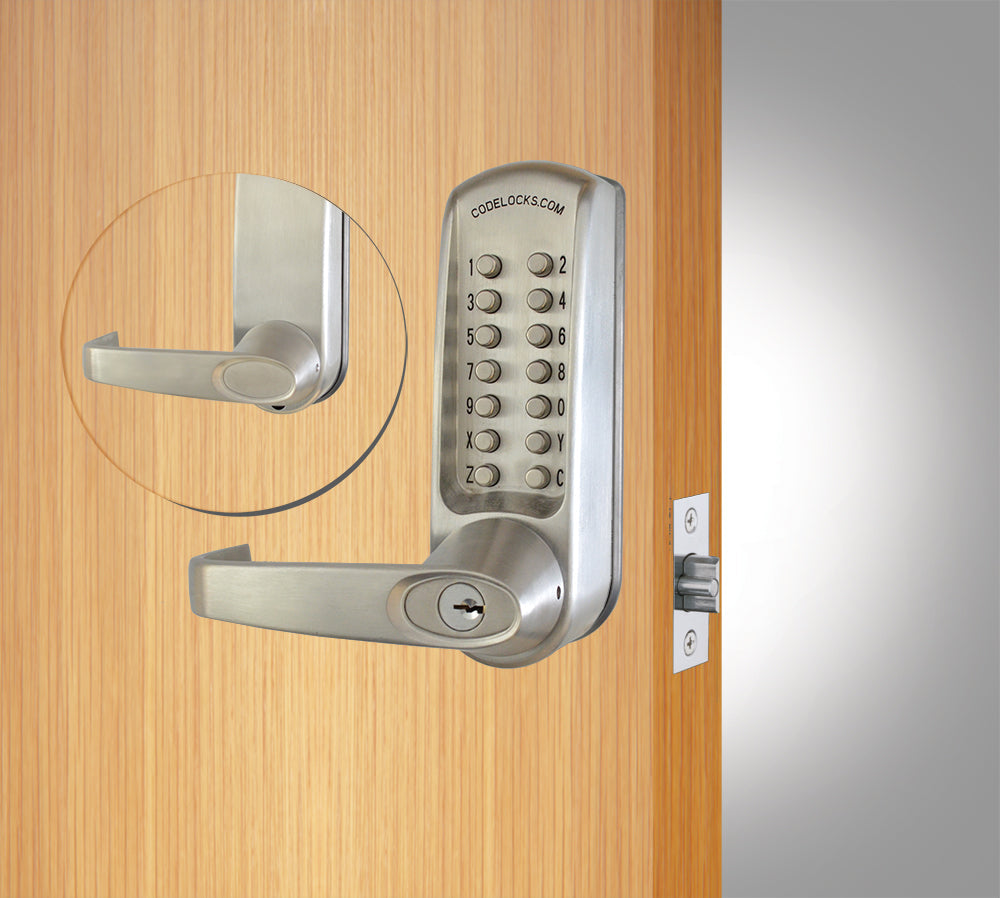

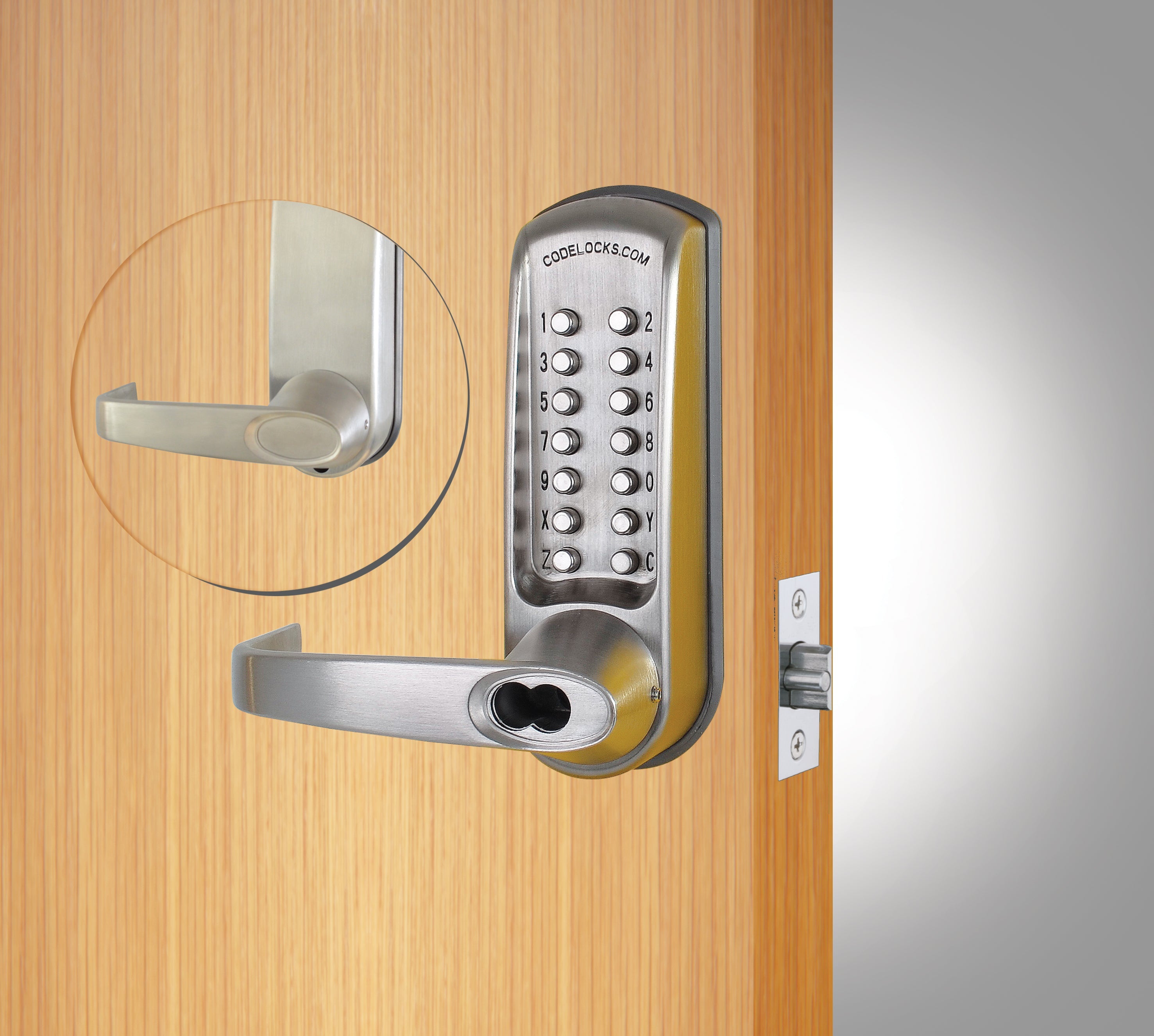

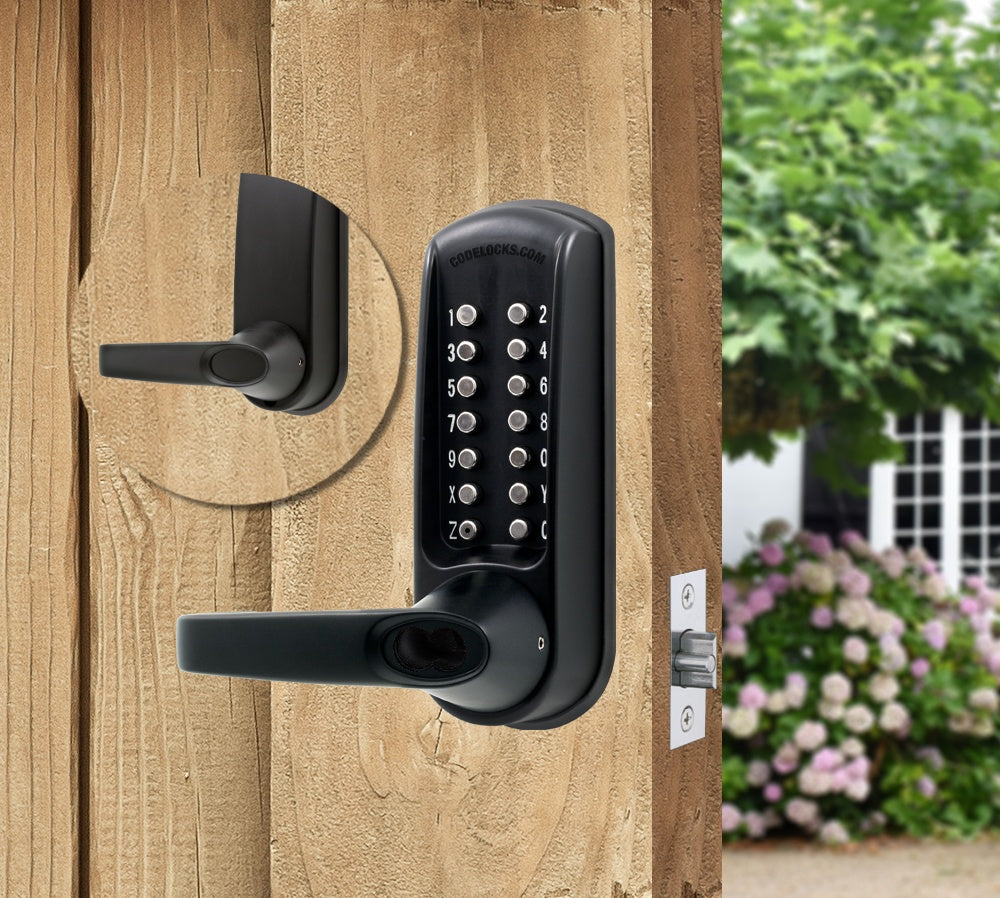

Gate Lock with Code - 600 Series - Mechanical Heavy Duty Tubular Latchbolt - Quick Code Change - Multiple Finishes Available - Sold Individually

These 600 Series Mechanical Gate Locks with Code are heavy duty tubular latchbolts. They are suited for doors between 1-3/8" to 2-3/8" thick. QuickCode functionality allowing on the door code changes in seconds. They are available in Black Marine Grade and Brushed finishes, and feature a passage option for code free access.

Product Specifications:

• Mechanical Gate Lock with Code
• 600 Series
• Heavy duty
• Single code - Coded on one side of door
• Code free access option
• Key bypass
• Code Change Method: QuickCode functionality allowing on the door code changes in seconds. The 600 Series QuickCode brings significant advantages to commercial users such as hospitals, schools and local authorities. Typically most mechanical digital locks require the lock to be removed from the door or partly disassembled to change the code.
• Door Thickness: 1-3/8" to 2-3/8"

• Material: Zinc Alloy
• Non-handed: Locks will fit doors hung on the left or right
• Latch retracts by turning inside handle freely, or the outside handle after code input
• Spring loaded latchbolt will lock automatically when the door is closed
• Finishes Available: Black Marine Grade, Brushed
• Code Access:
• Non-Passage
• Passage Option (Code Free Access): The outside lever will retract the latch freely until disabled
• Cylinder Options: Standard Cylinder, Small Format Interchangeable Cylinder (SFIC) Cylinder
• Spindle Type: Two part 8mm (5 /16”) spring loaded spindle
• Suitable for interior and exterior use
• Application: Front Gate, Side Gate, Pedestrian Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Full size lever handles with return to door
• Large three coil lever return spring suitable for high traffic use
• Tested to Grade 2 ANSI A156.2
• UL/ULC Fire Rating 3 hours
• Dot denotes passage function
• Sold individually
