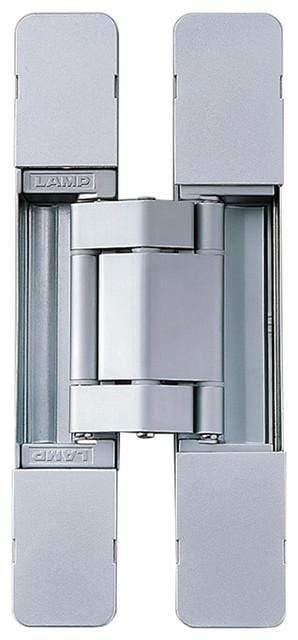

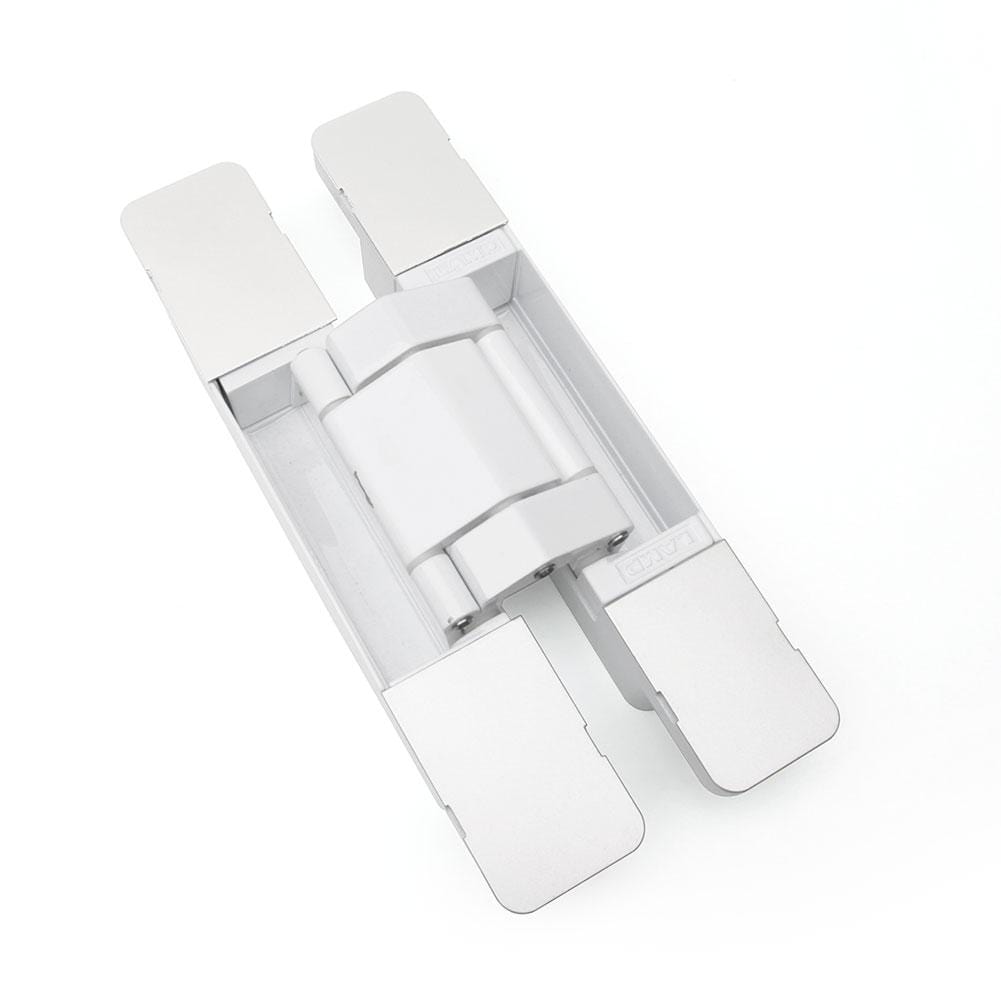

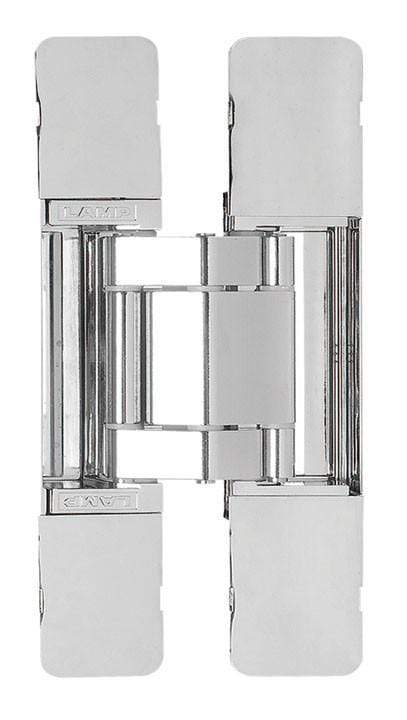

Concealed Door Hinges - Heavy Duty Invisible - Sugatsune - Multiple Finishes Available - Sold Individually

Sugatsune's Heavy Duty Invisible Hinge features vertical, horizontal and depth adjustment after the hinge is installed so you always get a perfect fit. You can hang doors up to 275 lbs. when using 3 hinges. A 2-piece design makes for easy door installation or removal and the included cover caps hide all of the screw heads for a clean, finished appearance. The minimum door thickness is 1-1/2" and the maximum door size is 94-1/2" H x 35-7/16 W. This hinge has successfully passed a 300,000 open and close cycle test.

Allows installing hinged door flush with the wall, resulting the door with a seamless look.

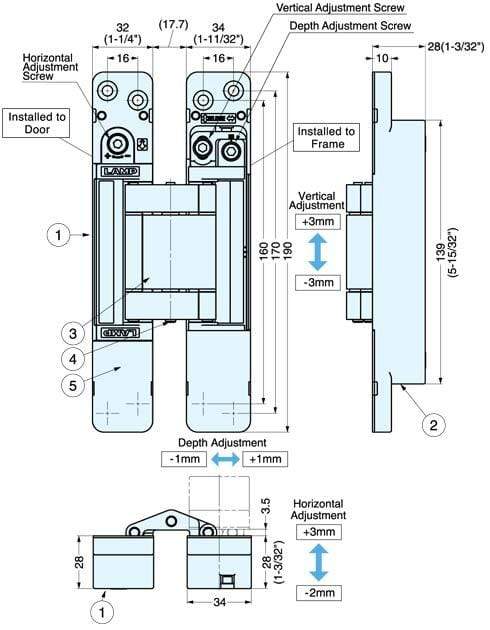

• 3 WAY adjustment function allows vertical, horizontal, and depth adjustment after hinge installed.
• Easy installation and after-installation adjustment.
• Successfully passed 300,000 open/close private cycle tests.
• Supplied with steel flat head screw.
• Cover hides all screw heads for clean appearance.
• Door weight : Max. 100kg (220lbs)/2pcs, 125kg (275lbs)/3pcs
• Door Thickness : Min. 38mm(1-1/2")
• Max. Door Size : H 2400mm (94-1/2") × W 900mm (35-7/16")

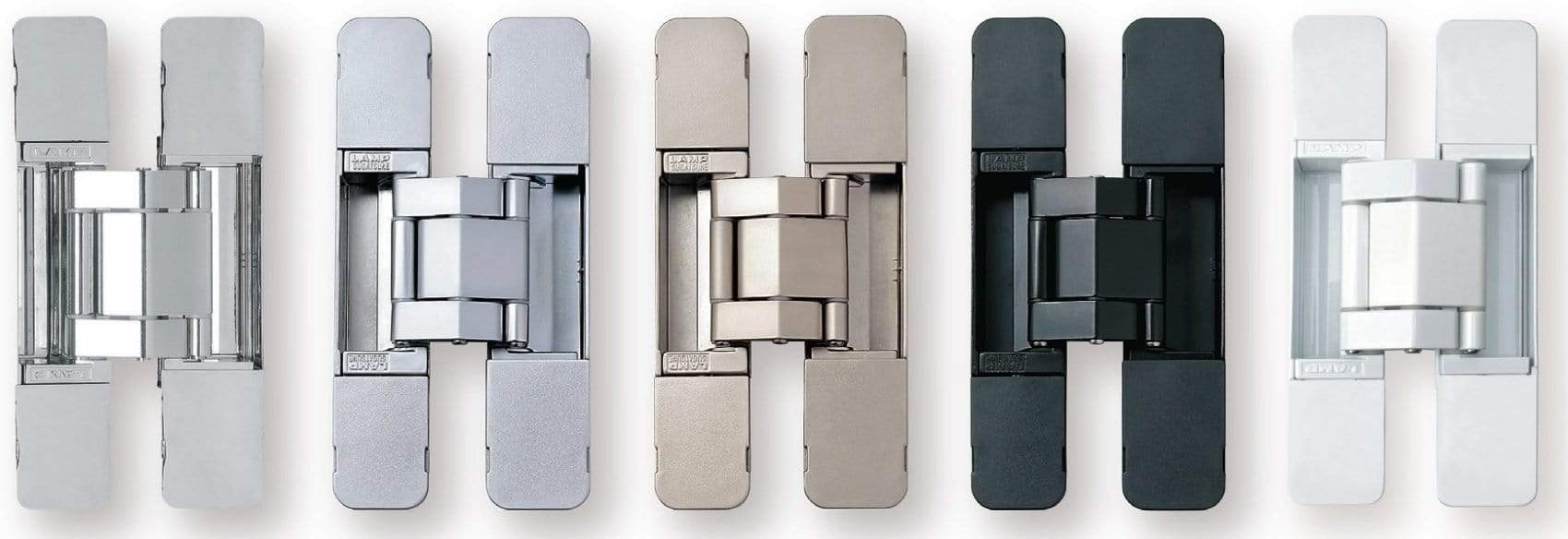

• Finish: Dull Nickel(DN), Black(BL), Dull Chrome(DC), Polished Nickel(PN), White(WT)
• Optional HES3D-E190BKT mounting brackets available for installation onto steel doors and frames.
• Sold Individually
