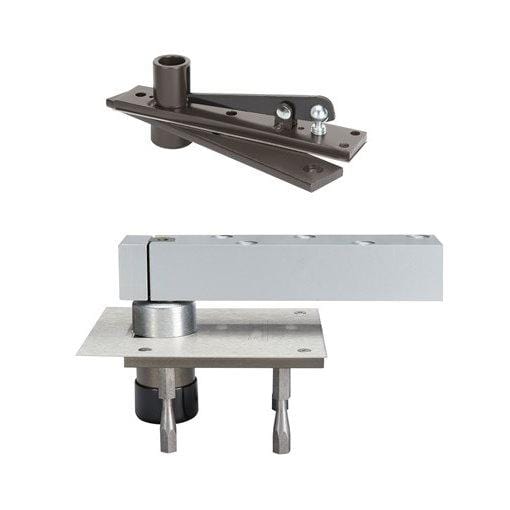

The Rixson Center Hung Pivot Door Hinge Set includes the standard H340 Top Pivot and is engineered for demanding commercial and architectural applications. Designed for interior or exterior doors, this pivot system accommodates doors with a minimum thickness of 2 inches, supports weights up to 1,000 lbs., and is suitable for door sizes up to 4'0" x 8'6". The assembly is non-handed for installation flexibility and is finished in durable Satin Chrome for a clean, professional appearance.

Built for Heavy-Duty Performance

This center hung pivot hinge system positions the pivot point in the exact center thickness of the door, delivering:

• Balanced weight distribution

• Reduced hinge-side stress

• Controlled, consistent swing

• Improved door stability under load

The integrated H340 Top Pivot ensures vertical alignment and smooth rotation, even under extreme weight conditions.

Technical Specifications

• Product: Rixson Center Hung Pivot Door Hinge Set

• Includes: Standard H340 Top Pivot

• Door Thickness: Minimum 2"

• Weight Capacity: Up to 1,000 lbs

• Maximum Door Size: 4'0" x 8'6"

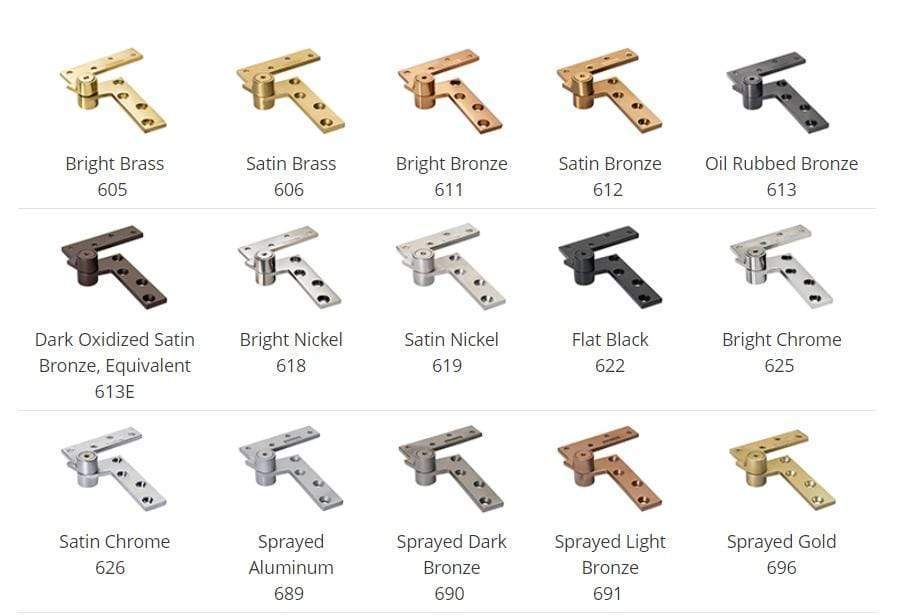

• Finish: Satin Chrome

• Handing: Non-handed

• Application: Interior or Exterior Doors

• Bottom Pivot: Mortised into floor

• Pivot Point: Centered in thickness of door

• Pivot Offset: 2-3/4" from door edge

• Bearings: Sealed bearing system for protection from debris and weather

• Hardware Included: Wood and machine screws

• Compliance: Not allowed for use on labeled doors and frames

Ideal Applications

• Commercial storefront entries

• Institutional buildings

• High-traffic corridors

• Oversized wood or metal doors

• Exterior heavy entry systems

• Architectural pivot door installations

Engineered Stability Under Load

Unlike traditional butt hinges, center hung pivots support weight vertically through the floor rather than transferring stress to the frame. This dramatically increases load capacity while maintaining smooth operation.

The sealed bearing assembly reduces wear, protects against debris infiltration, and extends service life in both interior and exterior environments.

Important Installation Notes

• Door must have radius on pivot edge

• Bottom pivot requires floor mortising

• Center hung pivots are a door hanging means only

• Not for fire-rated / labeled door applications

For best results, follow the included Installation Guide and Template.

Why Contractors Choose Rixson

• Proven commercial-grade performance

• 1,000 lb load rating

• Architectural precision alignment

• Long-term durability

• Non-handed flexibility simplifies ordering

When structural integrity and smooth operation matter, this pivot system delivers dependable performance.

Ready to specify a heavy-duty pivot system?

Add the Rixson Center Hung Pivot Door Hinge Set to your project and ensure long-term reliability in demanding door installations.

FAQ Section

What is a center hung pivot hinge?

A center hung pivot positions the pivot point in the middle thickness of the door, distributing weight evenly and improving balance.

Can this pivot hinge be used on fire-rated doors?

No. This pivot set is not allowed for use on labeled doors and frames.

What door thickness is required?

Minimum door thickness is 2 inches.

How much weight can it support?

This system supports doors weighing up to 1,000 lbs.

Is it suitable for exterior use?

Yes, it may be used on interior or exterior doors.
