SKU: LOC-P00017436-VENUS-S

Locinox Venus - Motorized Gate Closer for Pedestrian Swing Gates Up to 55" and 220 lbs - Multiple Arm Types Available - Sold Individually

Finish
Arm Type

In stock, ready to ship

  • ✓ Qualifies for free shipping!
  • ✓ Easy 45 day returns
  • ✓ Typically ships in 1-2 business days

The Venus is a plug-and-play motorized gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.

Product Specifications:

  • Locinox Venus
  • Motorized Gate Closer for pedestrian swing gates with integrated electronics
  • Brushless motor specially designed for semi-manual or fully automated outdoor use
  • Safe, reliable operation thanks to low-energy speed control and integrated obstacle detection
  • All-in-one gate operator with integrated power supply and circuit board
  • Compact and vandal-proof design
  • Easy setup with free mobile app
  • Gate Type: Swing gates, reversible left and right
  • Maximum Gate Size: 55" Inch
  • Maximum Gate Weight: 220 lbs.
  • Posts: Square - 3.15" Inch (80mm); 2/36" Inch (60mm) with adapter plate
  • Arm Types Available:

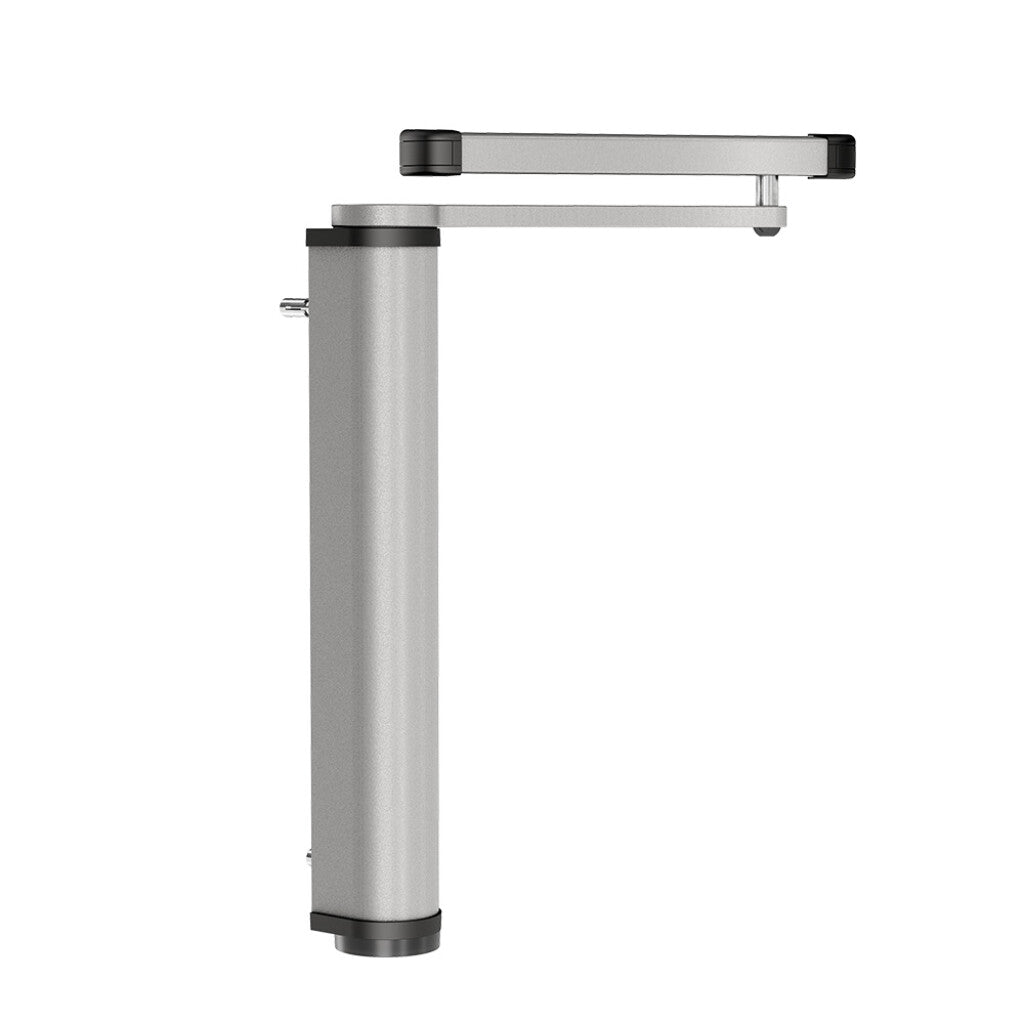

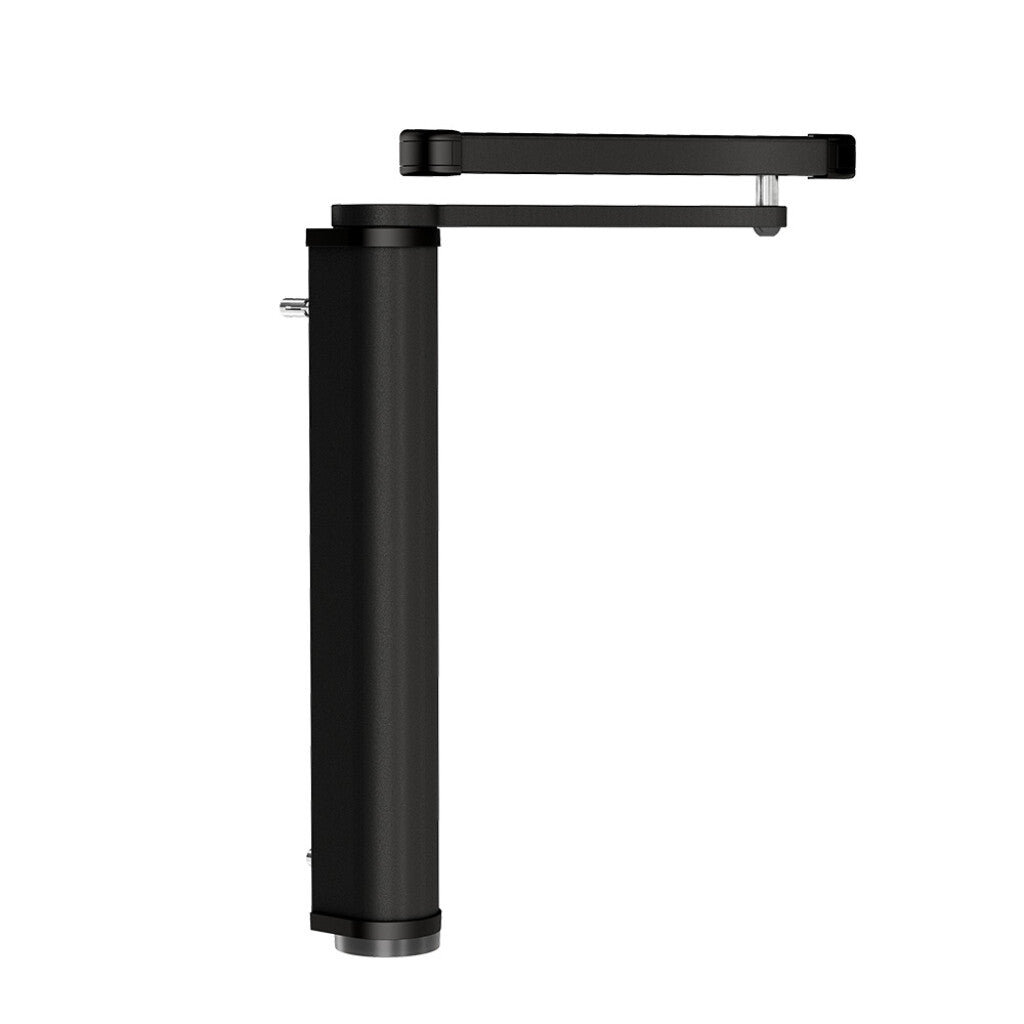

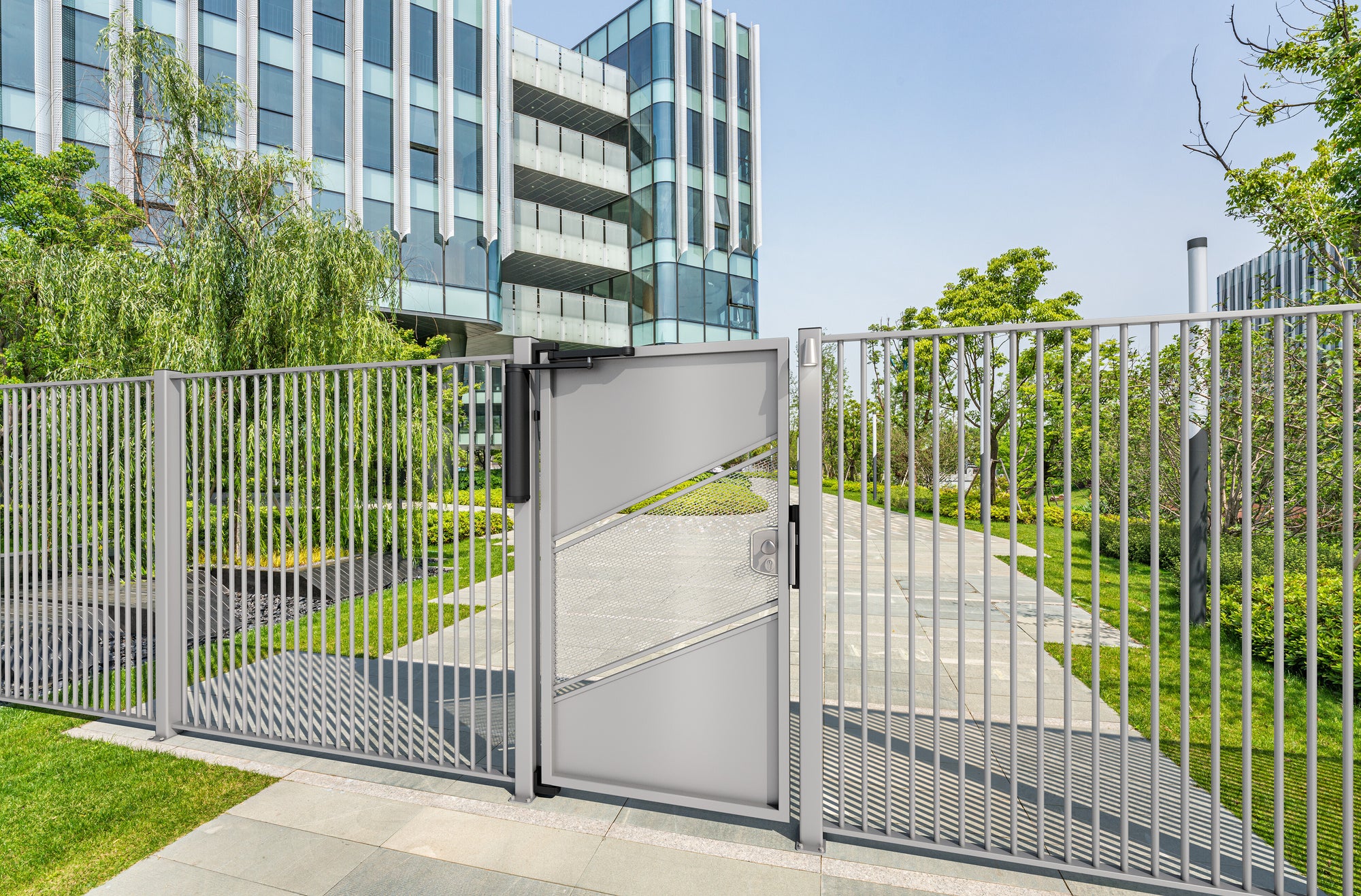

    • Venus-S: Reversible motor for pedestrian gates with integrated electronics including sliding arm

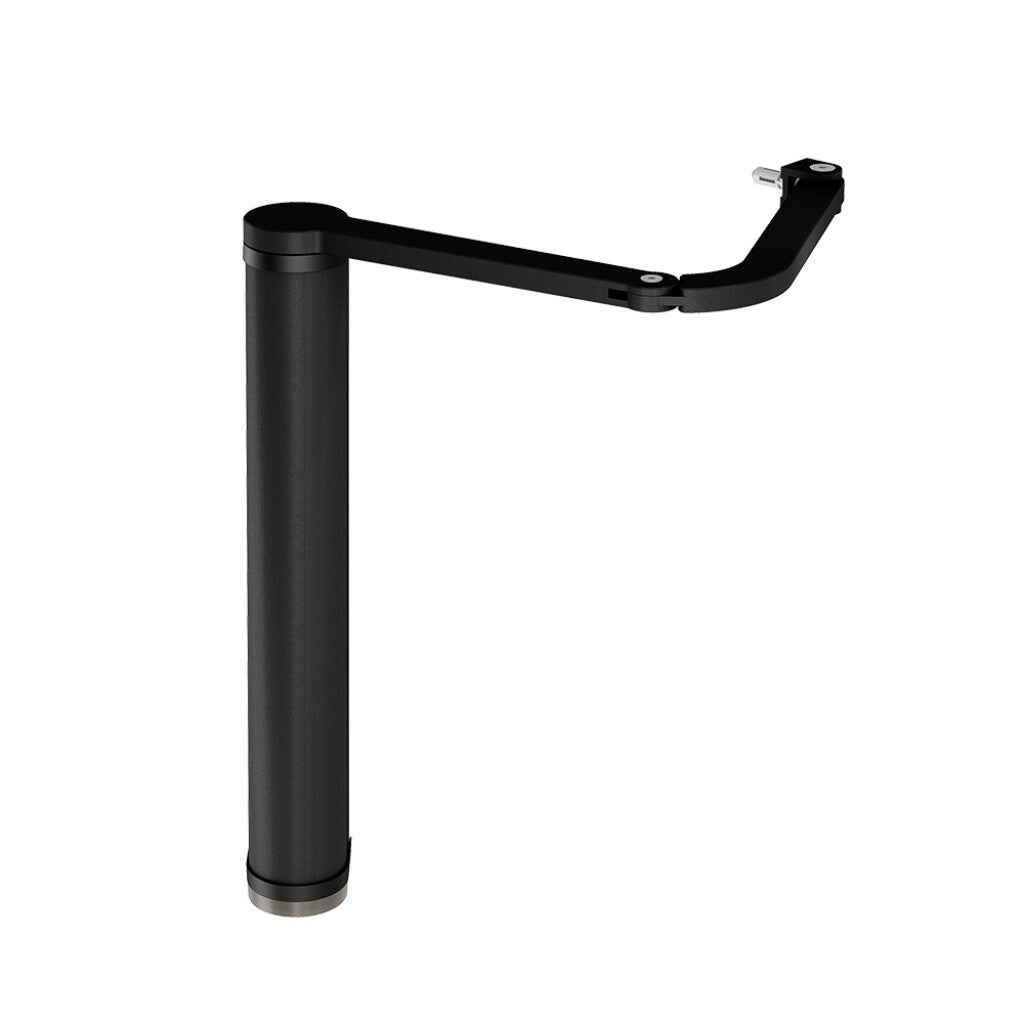

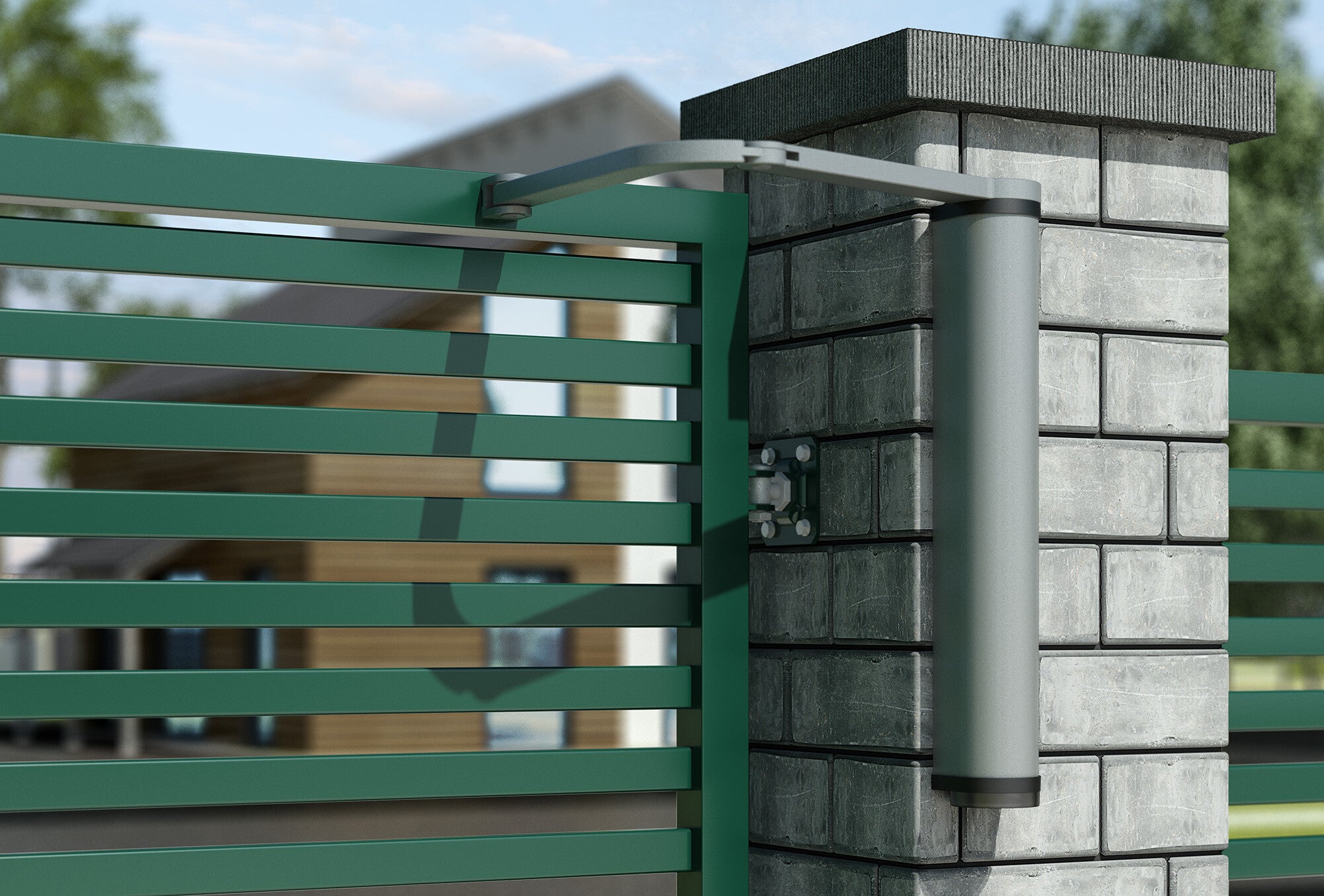

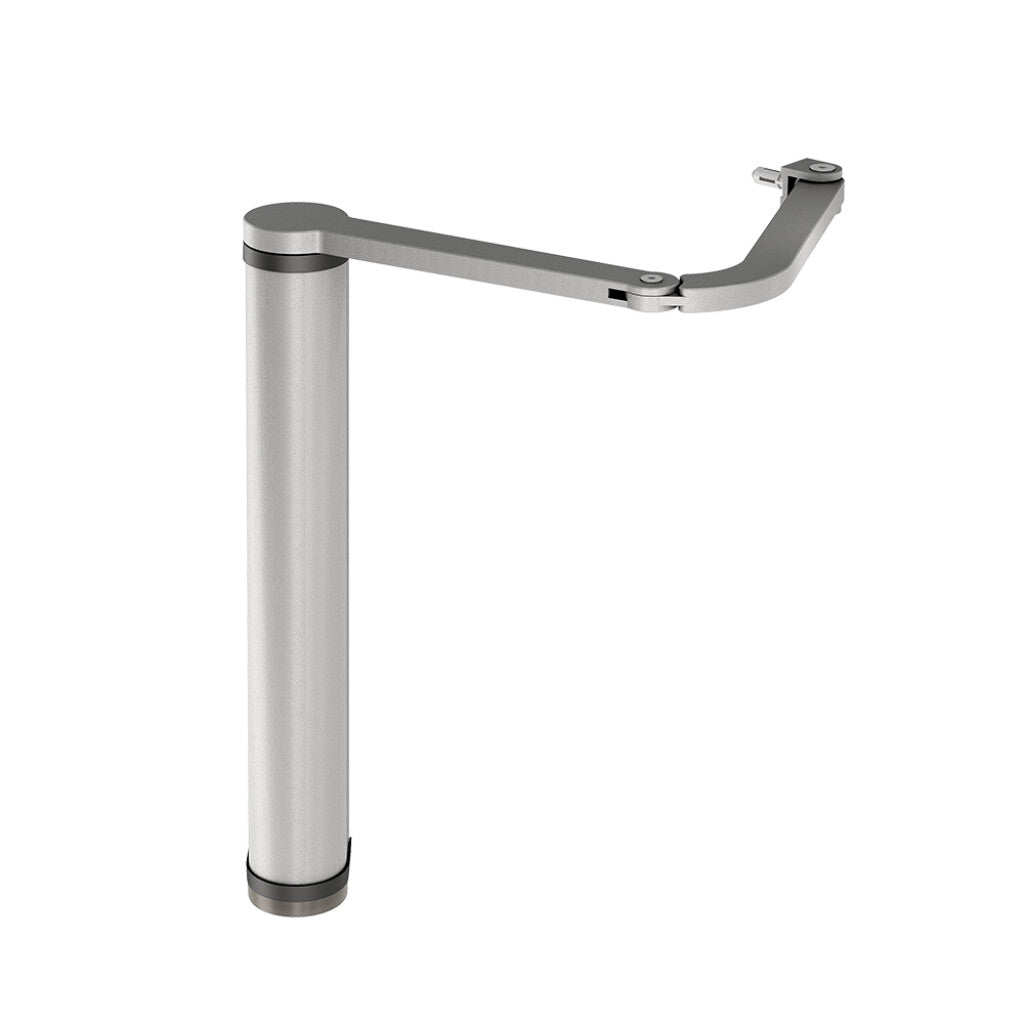

    • Venus-A: Reversible motor for pedestrian gates with integrated electronics including articulated arm

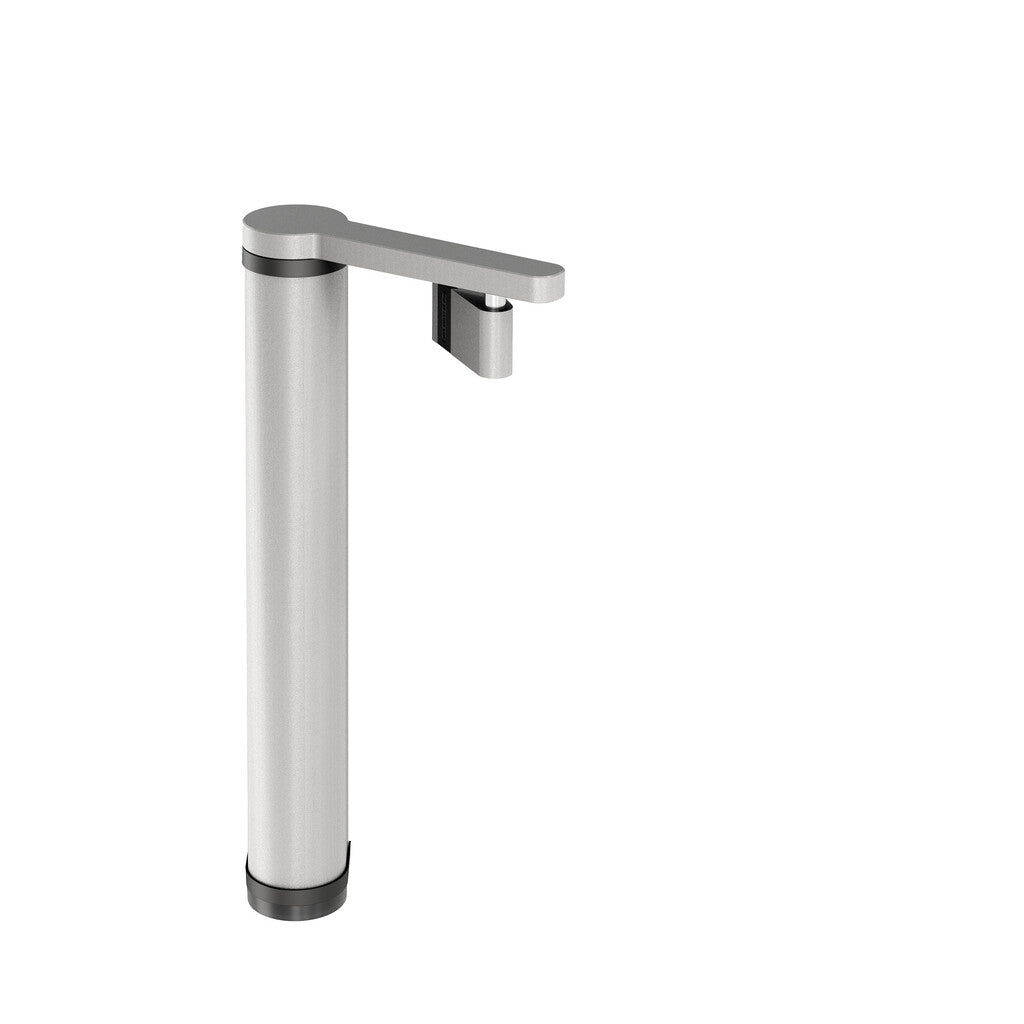

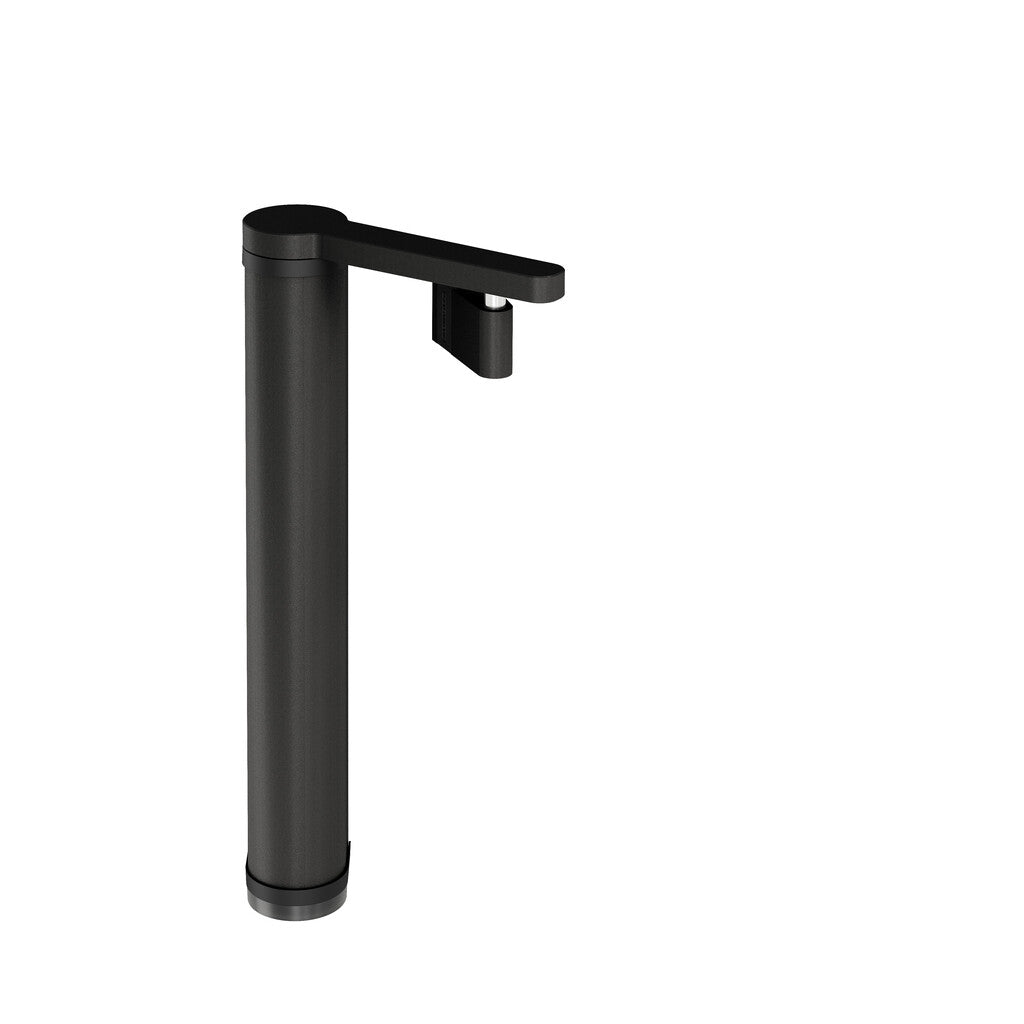

    • Venus-G: Reversible motor for pedestrian gates with integrated electronics, including compact arm for 180° hinges
  • Finishes Available: Silver, Black
  • Case: Anodized Aluminum
  • Steel gear box
  • Mounting: Quick-Fix
  • Maximum Motor Torque: 150 Nm
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Tested: 500,000 cycles
  • The Venus gate motor is designed for the automatic opening and closing of pedestrian swing gates and outdoor use. This is a reversible motor, so an (electric) lock is mandatory
  • The operating speed is limited to low-energy settings according EN16005 and ANSI 156.19 standards
  • Sold individually
  • Installation Guide


Venus-S:


Venus-A:


Venus-G:
