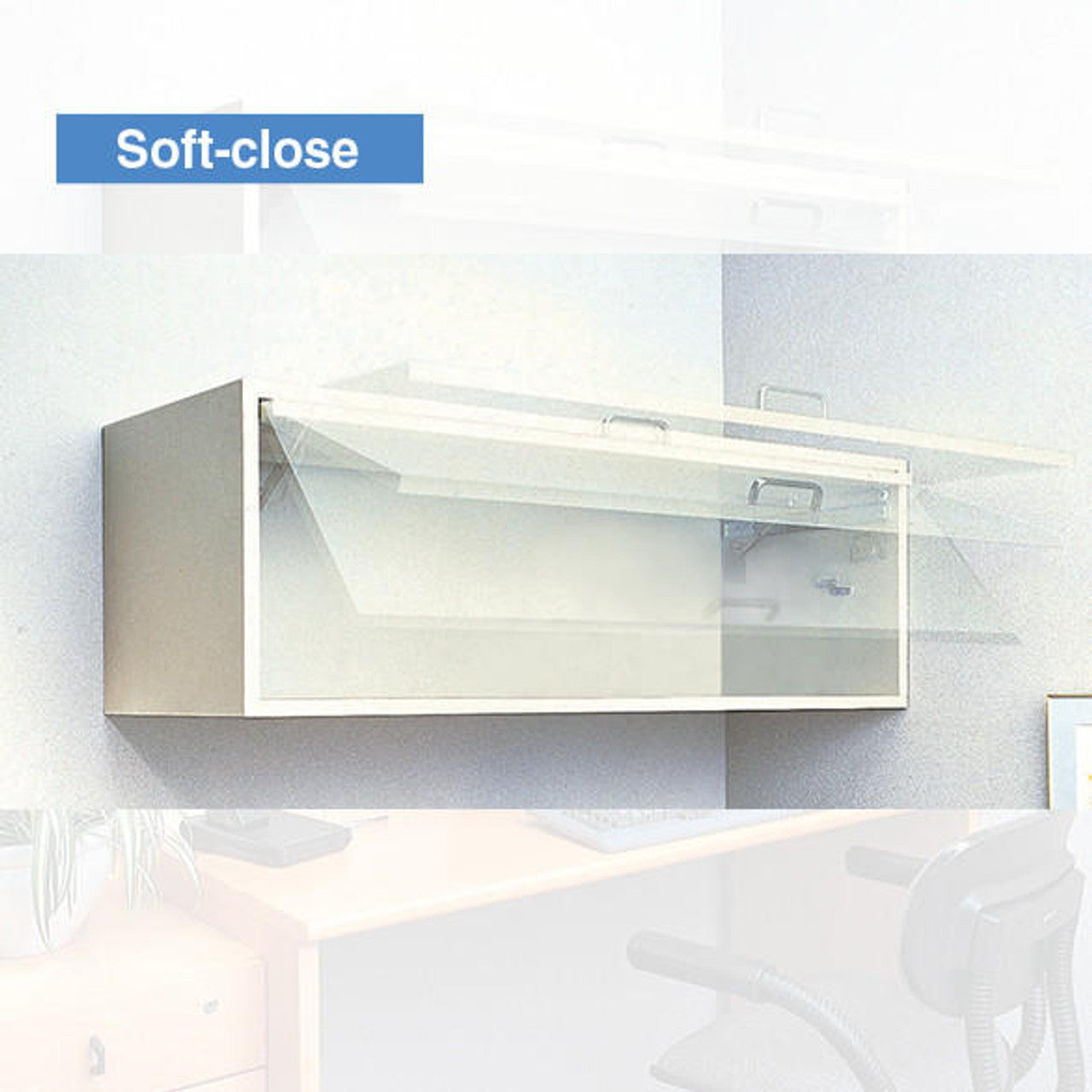

Inset Receding Cabinet Sliding Door System - For Upward Opening Flap Doors - Soft Close - Multiple Sizes Available - Nickel Finish - Sold as Kit

This Inset Receding Cabinet Sliding Door System is for use with upward-opening cabinet doors. It features an adjustable soft-closing speed which prevents slamming. It is available in 14", 16", 19", and 24" tracks.

Product Specifications:

• Inset Receding Cabinet Sliding Door System
• Soft close
• Finish: Nickel
• Materials: Slide and Hinge - Steel; Soft-Down Stay - Zinc Alloy
• Track Lengths Available:
  • 14" Inch: Travel Length 10-9/16"
  • 16" Inch: Travel Length 12-9/16"
  • 19" Inch: Travel Length 15-9/16"
  • 24" Inch: Travel Length 20-9/16"

• Door Thicknesses Available: 19/32" to 13/16" (15-20mm), 11/16" to 1-3/16" (18-30mm)
• Maximum Door Widths Available: 23-5/8” Inch, 47-1/4" Inch
• *See picture below for detailed size chart
• For upward-opening cabinet doors
• Soft-close feature prevents slamming
• Adjustable Soft-closing speed
• Door pockets into the cabinet to get out of the way when opened
• NSDX soft-down stay successfully passed 30,000 open/close private cycles test
• CA Prop 65 Compliant: No
• NSF Compliant: No
• ROHS Compliant: No
• Includes either 1 or 2 NSDX soft-down stays depending on kit selection (see size chart)
• Includes fasteners: Pan head screw with captive washer - M4 X 6MM, Truss Head Screw - M4 X 5MM, Bind Head Tapping Screw - 3.5 X 16MM, Raised Countersunk Head Tapping Screw - 3.5 X 16MM
• Sold as kit
• Installation Guide
• Diagrams and Specs

Size Chart:
