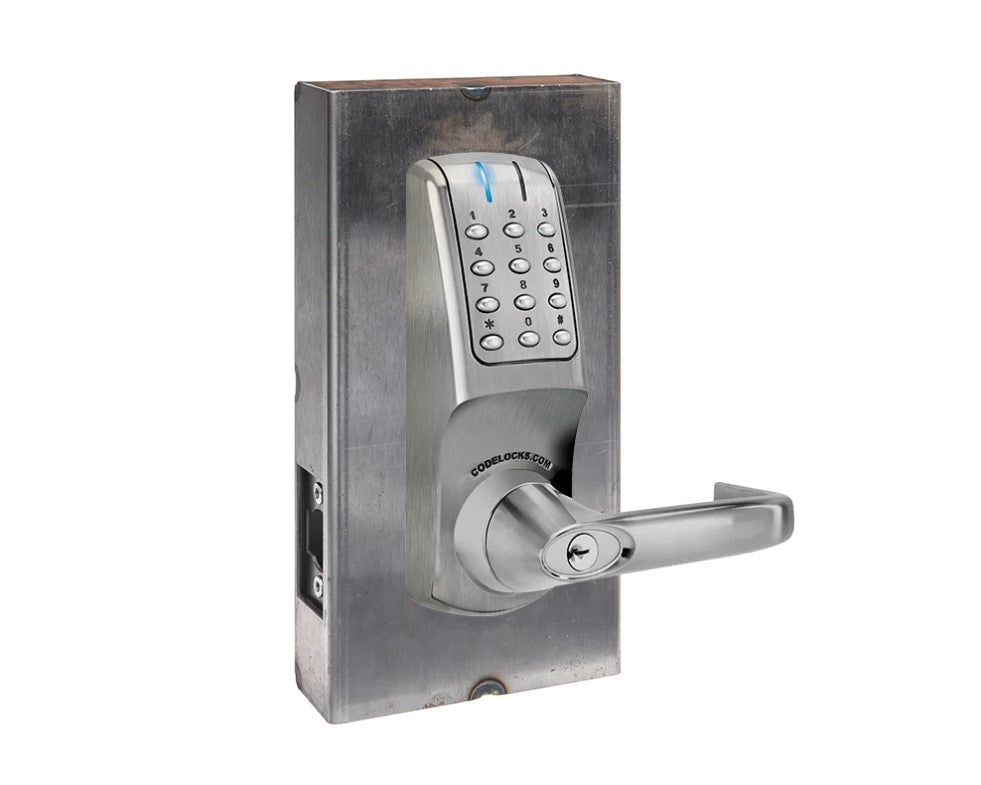

Gate Lock with Code - 5200 Series Steel Gate Box Kit - Electronic Heavy Duty Tubular Latchbolt - Brushed Finish - Sold as Kit

The 5200 Series Steel Gate Box Kit is a complete kit for gate and fence installations. The Gate Box Kits provide simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation and is suitable for indoor and outdoor applications. They are available in a brushed finish.

Product Specifications:

• Electronic Gate Lock with Code
• 5200 Series Steel Gate Box Kit
• Includes Codelock, weldable Gate Box, and stop bracket
• Contains all components required for a straightforward installation
• Tubular mortise latch
• Heavy duty
• 14-gauge weldable steel boxes with pre-drilled fixing holes
• Finish: Brushed
• Suitable for wooden / metal doors between 1-3/8" and 2-3/8" thick
• Suitable for interior and exterior use
• Code Access: Passage Option
• User Codes 4, 5, or 6 digits long
• Allows up to 80 User Codes
• Allows up to 10 one-time User Codes to be entered
• Key bypass and front cylinder change
• Up to 200,000 operations from 4 x AA batteries (supplied)
• Conventional 3x4 button keypad layout for instant familiarity, providing quick programming with a multiple range of functions
• Remote release connections
• Material: Zinc Alloy
• Non-handed: Locks will fit doors hung on the left or right
• Code Change Method: Keypad (on door)
• Keypad: Stainless Steel buttons
• Medium duty tubular latch retracts via the outside knob after a valid code input. When the door closes, the spring latch will lock the door
• Heavy duty locks for use in high traffic applications - Particularly suitable for use in health, educational, commercial and residential environments
• Tamper time out and low battery warning - Red LED will flash on opening to indicate low battery
• Locked and unlocked LED indicator option
• Tested to Grade 2 ANSI A156.2 / A156.25
• UL/ULC Fire Rating 3 hours
• Sold as kit
