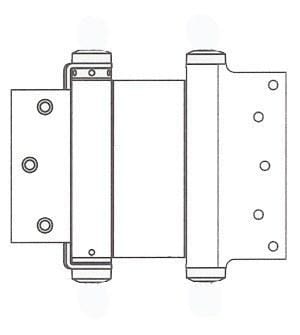

Oil Rubbed Bronze - Bommer Double Action Hinges Multiple Sizes (3" - 8") - Single Hinge

Hinge Outlet

$ 245.95
SKU: 3029-814-640

Share:
Product Details / Specifications

All Bommer Oil Rubbed Bronze Hinges are Steel, Non-template, and Non-Handed.  They come packed with matching finish wood screws, tension Adjuster and instructions.  The Jamb flange is surface applied to jamb and the door flange is mortised into edge of door.  It is advisable to use three hinges on a door, the center hinge should be installed as close to the top hinge for maximum support.  Do not use on doors with hinge edge beveled.  Click here if you need assistance measuring a Double Action Hinge.

3 Inch  Door Thickness: 3/4" to 1"  Maximum Door Height: 5'-0"
2 Hinges = Maximum Door Width 2'0", Maximum Door Weight 35 lbs
3 Hinges = Maximum Door Width 2'8", Maximum Door Weight 39 lbs
4 Inch Door Thickness: 7/8" to 1 1/4"  Maximum Door Height: 6'-8"
2 Hinges = Maximum Door Width 2'4", Maximum Door Weight 60 lbs
3 Hinges = Maximum Door Width 3'0", Maximum Door Weight 75 lbs
5 Inch Door Thickness: 1 1/8" to 1 1/2"  Maximum Door Height: 6'-8"
2 Hinges = Maximum Door Width 2'8", Maximum Door Weight 65 lbs
3 Hinges = Maximum Door Width 3'0", Maximum Door Weight 93 lbs
5 Inch x 3 1/2 inch Door Thickness: 1 3/8"  Maximum Door Height: 6'-8"
2 Hinges = Maximum Door Width 2'8", Maximum Door Weight 65 lbs
3 Hinges = Maximum Door Width 3'0", Maximum Door Weight 93 lbs
6 Inch  Door Thickness: 1 1/4" to 1 3/4"  Maximum Door Height: 7'-0"
2 Hinges = Maximum Door Width 2'8", Maximum Door Weight 75 lbs
3 Hinges = Maximum Door Width 3'0", Maximum Door Weight 107 lbs
6 Inch x 4 1/2 Inch Door Thickness: 1 3/4"  Maximum Door Height: 7'-0"
2 Hinges = Maximum Door Width 2'8", Maximum Door Weight 75 lbs
3 Hinges = Maximum Door Width 3'0", Maximum Door Weight 107 lbs
7 Inch Door Thickness: 1 3/8" to 2"  Maximum Door Height: 7'-0"
2 Hinges = Maximum Door Width 3'0", Maximum Door Weight 82 lbs
3 Hinges = Maximum Door Width 3'6", Maximum Door Weight 120 lbs
8 Inch Door Thickness: 1 1/2 to 2"  Maximum Door Height: 7'-0"
2 Hinges = Maximum Door Width 3'6", Maximum Door Weight 103 lbs
3 Hinges = Maximum Door Width 4'0", Maximum Door Weight 143 lbs
8 Inch x 4 1/2 Inch  Door Thickness: 1 3/4"  Maximum Door Height: 7'-0"
2 Hinges = Maximum Door Width 3'6", Maximum Door Weight 103 lbs
3 Hinges = Maximum Door Width 4'0", Maximum Door Weight 143 lbs
